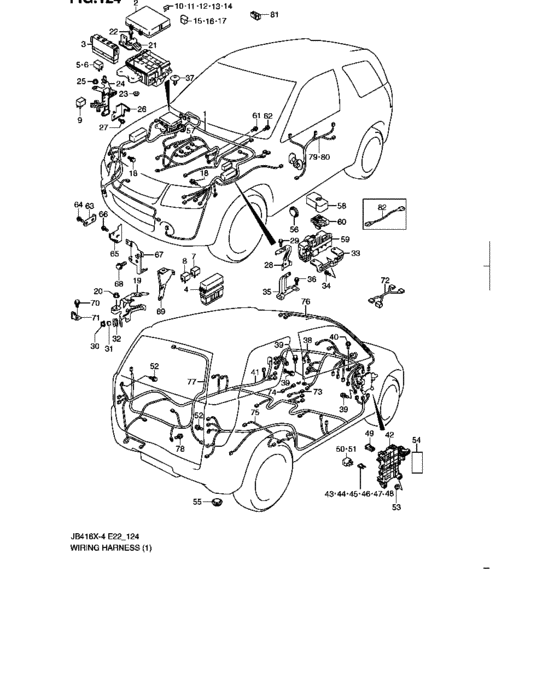

Wiring harness (JB416X) 151
#OEMPart name
1 36610-76K20-000 Harness assy,main
1 36610-76K21-000 Harness assy,main
1 36610-76K10-000 Harness assy,main
1 36610-76K11-000 HARNESS ASSY,MAIN
1 36601-76K00-000 Harness assy,main
1 36601-76K01-000 HARNESS ASSY,MAIN
1 36601-76K20-000 Harness assy,main
1 36601-76K21-000 HARNESS ASSY,MAIN
1 36601-76K10-000 Harness assy,main
1 36601-76K11-000 HARNESS ASSY,MAIN
1 36610-76K00-000 Harness assy,main
1 36610-76K01-000 HARNESS ASSY,MAIN
2 36738-64J01-000 COVER,FUSE&RELAY BOX
3 36742-65J00-000 MODULE,POWER INTEGRATION
4 36744-65J00-000 COVER,RELAY BOX
5 38860-76F01-000 RELAY ASSY - Relay, starting motor
8 38860-78F00-000 RELAY ASSY
9 74145-65D00-000 RELAY ASSY
10 09481-10504-000 FUSE(10A)
11 09481-15504-000 FUSE(15A)
12 09481-20504-000 FUSE(20A)
13 09481-25504-000 FUSE(25A)
14 09481-30504-000 FUSE(30A)
15 09481-30403-000 FUSE(30A)
16 09481-40403-000 FUSE(40A)
17 09481-50403-000 FUSE(50A)
18 09115-06005-000 BOLT(6X16)
19 13486-65J02-000 BRACKET,STRUT L
20 09159-06076-000 NUT
21 36735-64J01-000 BRACKET,MAIN FUSE&RLY BOX
21 36735-64JA1-000 BRACKET,MAIN FUSE&RLY BOX
22 09122-86002-000 SCREW(6X12)
24 36735-64J11-000 BRACKET,STRUT R
25 08316-1006A-000 NUT
26 36651-76K00-000 BRACKET,BODY HARN
27 02162-0612A-000 SCREW - Bolt, bracket
28 36735-64J30-000 BRACKET,RDTR RLY BOX
30 09159-06081-000 NUT
31 09180-06347-000 SPACER(6.5X13X7.5)
32 09320-12036-000 CUSHION - Cushion, holder
33 36745-64J00-000 BRACKET,FUSE BLOCK
35 36745-64J10-000 BRACKET,BTRY HARN
37 09409-06330-000 CLIP
38 36620-76K40-000 Harness assy,i/p
38 36620-76K41-000 HARNESS ASSY,I/P
38 36620-78K00-000 Harness assy,i/p
38 36620-78K01-000 HARNESS ASSY,I/P
38 36620-76K50-000 Harness assy,i/p
38 36620-76K51-000 Harness assy,i/p
38 36620-78K10-000 Harness assy,i/p
38 36620-78K11-000 HARNESS ASSY,I/P
38 36602-76K00-000 Harness assy,i/p
38 36602-76K01-000 HARNESS ASSY,I/P
38 36602-76K10-000 Harness assy,i/p
38 36602-76K11-000 HARNESS ASSY,I/P
38 36602-78K00-000 Harness assy,i/p
38 36602-78K01-000 HARNESS ASSY,I/P
38 36602-76K20-000 Harness assy,i/p
38 36602-76K21-000 HARNESS ASSY,I/P
38 36602-78K10-000 Harness assy,i/p
38 36602-78K11-000 HARNESS ASSY,I/P
38 36620-76K00-000 Harness assy,i/p
38 36620-76K01-000 HARNESS ASSY,I/P
38 36602-76K80-000 Harness assy,i/p
38 36602-76K81-000 HARNESS ASSY,I/P
41 36630-76K10-000 HARNESS ASSY,FLOOR
41 36630-76K20-000 Harness assy,floor
41 36630-76K40-000 Harness assy,floor
41 36630-76K50-000 Harness assy,floor
41 36603-76K00-000 HARNESS ASSY,FLOOR
41 36603-76K10-000 HARNESS ASSY,FLOOR
41 36603-76K20-000 HARNESS ASSY,FLOOR
41 36603-76K30-000 HARNESS ASSY,FLOOR
41 36603-76K40-000 HARNESS ASSY,FLOOR
41 36630-76K00-000 Harness assy,floor
41 36930-76K00-000 Harness assy,floor
41 36930-76K02-000 HARNESS ASSY,FLOOR
41 36630-77K10-000 HARNESS ASSY,FLOOR
41 36630-77K40-000 HARNESS ASSY,FLOOR
41 36603-77K00-000 HARNESS ASSY,FLOOR
41 36903-76K40-000 Harness assy,floor
41 36903-76K42-000 HARNESS ASSY,FLOOR
41 36603-77K10-000 HARNESS ASSY,FLOOR
41 36603-77K20-000 HARNESS ASSY,FLOOR
41 36903-76K20-000 Harness assy,floor
41 36903-76K22-000 HARNESS ASSY,FLOOR
41 36603-77K30-000 HARNESS ASSY,FLOOR
41 36903-76K30-000 Harness assy,floor
41 36903-76K32-000 HARNESS ASSY,FLOOR
41 36603-77K40-000 HARNESS ASSY,FLOOR
41 36603-77K50-000 HARNESS ASSY,FLOOR
41 36630-77K00-000 HARNESS ASSY,FLOOR
42 36710-76K20-000 BOX ASSY,JUNCTION
43 09481-07504-000 FUSE(7.5A)
54 36717-76K00-000 LABEL,FUSE BOX
55 72999-67H00-000 CAP,OD:40
56 36699-64J00-000 CAP,HARN HOLE
57 36650-76K00-000 HARNESS ASSY,ENGINE
57 36650-76KA0-000 HARNESS ASSY,ENGINE
57 36650-76KB0-000 HARNESS ASSY,ENGINE
57 36650-76K10-000 HARNESS ASSY,ENGINE
58 36694-64J00-000 COVER,BTRY TERMINAL
59 36740-64J10-000 BLOCK,FUSE
60 36739-50J00-000 FUSE,BATTERY CABLE 80A
61 01550-0612A-000 Bolt
62 01550-0816A-000 Bolt - Bolt, rear
63 36651-51G00-000 BRACKET,ENG HARN
65 36651-64J20-000 BRACKET,INTK
67 36653-80G00-000 BRACKET,O2 CONN
69 36995-81A30-000 BRACKET,INJ
70 36655-84A01-000 BRACKET,THERMO CONN
72 74156-64J10-000 WIRE,HVAC
72 74156-64J00-000 WIRE,A/C PANEL
73 36611-65J40-000 WIRE,CONSOLE
74 36611-65J00-000 WIRE,CONSOLE
75 36840-76K00-000 Wire comp,fuel
75 36840-76K01-000 WIRE,FUEL
76 36820-64J00-000 WIRE,ROOF
77 36680-76K10-000 WIRE,BACK DR
77 36680-76K00-000 WIRE,BACK DR
77 36680-76K30-000 WIRE,BACK DR
79 36756-76K00-000 WIRE,FR DR DRVR
79 36756-76K10-000 Wire comp,fr door dr
79 36756-76KA0-000 WIRE,FR DR DRVR
79 36756-76KC0-000 WIRE,FR DR DRVR
79 36756-76KD0-000 WIRE,FR DR DRVR
79 36756-76K20-000 WIRE,FR DR DRVR
79 36756-76KB0-000 WIRE,FR DR DRVR
79 36756-77K90-000 WIRE,FR DR DRVR
79 36756-77K10-000 WIRE,FR DR DRVR
79 36756-77KA0-000 WIRE,FR DR DRVR
79 36756-77KB0-000 WIRE,FR DR DRVR
79 36756-77KD0-000 WIRE,FR DR DRVR
79 36756-77KC0-000 WIRE,FR DR DRVR
79 36756-77K20-000 WIRE,FR DR DRVR
80 36757-76K00-000 WIRE,FR DR PASS
80 36757-76K10-000 WIRE,FR DR PASS
80 36757-76KA0-000 WIRE,FR DR PASS
80 36757-76KC0-000 WIRE,FR DR PASS
80 36757-76KD0-000 WIRE,FR DR PASS
80 36757-76K20-000 WIRE,FR DR PASS
80 36757-76KB0-000 WIRE,FR DR PASS
80 36757-77K90-000 WIRE,FR DR PASS
80 36757-77K10-000 WIRE,FR DR PASS
80 36757-77KA0-000 WIRE,FR DR PASS
80 36757-77KC0-000 WIRE,FR DR PASS
80 36757-77KD0-000 WIRE,FR DR PASS
80 36757-77KB0-000 WIRE,FR DR PASS
80 36757-77K20-000 WIRE,FR DR PASS
81 36737-64J00-000 PULLER,FUSE
82 36691-65J00-000 WIRE,A/B PASSENGER
