Search › Model › JB424X

JB424X

Suzuki GRAND-VITARA · 4,714 parts · 260 categories

4,714 items

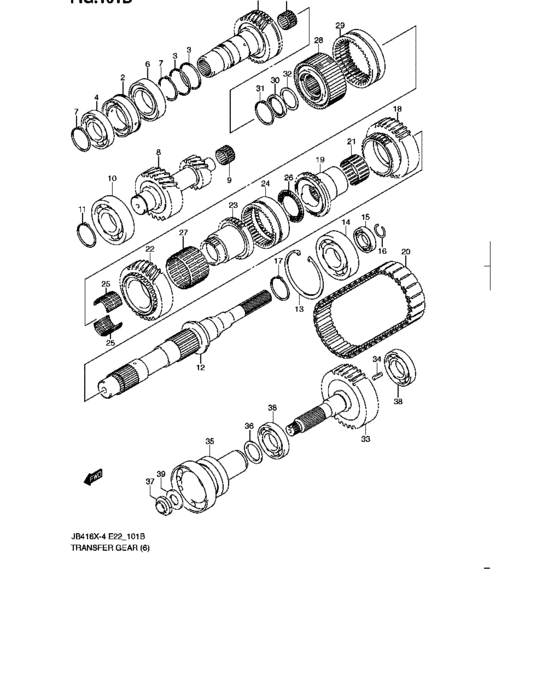

Transfer gear (TYPE 5:4 MODE:W/LSD) 51

#	OEM	Part name
1	29110-66J31-000	GEAR,T/F INPUT
2	29116-80K00-000	SPACER,T/F INPUT GEAR
3	29117-80K00-000	RING,T/F INPUT GEAR SEAL
4	29931-66J00-000	BEARING,T/F INPUT GEAR FR
5	29922-66J00-000	BEARING,T/F INPUT GEAR NDL
6	29921-66J30-000	BEARING,T/F INPUT GEAR RR
7	08331-31509-000	CIRCLIP
8	29121-66J00-000	GEAR,T/F COUNTER
9	29923-66J00-000	BEARING,T/F COUNTER GEAR NDL
10	08113-63070-000	Bearing
11	08331-3135A-000	Circlip
11	08331-31359-000	CIRCLIP
12	29141-76K00-000	SHAFT,REAR OUTPUT
13	29380-66J00-000	CIRCLIP,RR OUTPUT BRG NO.2
14	29932-66J00-000	BEARING,RR OUTPUT SFT
15	29933-80K00-000	BEARING,RR OUTPUT SHAFT NO.2
16	09381-22012-000	RING,SNAP
17	08331-3140A-000	Circlip
17	08331-31409-000	CIRCLIP
18	29221-66J00-000	SPROCKET,FRONT DRIVE
19	29222-66J00-000	BUSH,FR DRIVE SPROCKET
20	29225-66J01-000	CHAIN,FR DRIVE
21	29924-66J00-000	BEARING,FR DR SPRKT NDL
22	29211-66J00-000	GEAR,LOW
23	29223-66J00-000	SHAFT,FRONT DRIVE
24	29262-66J00-000	SLEEVE,DIFF LOCK CLUTCH
25	29925-66J00-000	BEARING,FR DR SFT NDL
26	29927-66J00-000	BEARING,FR DR SFT THR NDL
27	29928-66J00-000	BEARING,LOW GEAR NDL
28	29710-66J10-000	DIFFERENTIAL ASSY,CENTER LSD
29	29241-66J01-000	SLEEVE,REDUCTION SHIFT
30	29722-66J00-000	WASHER,CTR DIFF CAM
31	08331-31383-000	CIRCLIP
32	29724-66J00-040	SHIM,CTR DIFF CAM T:0.40
32	29724-66J00-060	SHIM,CTR DIFF CAM T:0.60
32	29724-66J00-080	SHIM,CTR DIFF CAM T:0.80
32	29724-66J00-100	SHIM,CTR DIFF CAM T:1.00
32	29724-66J00-120	SHIM,CTR DIFF CAM T:1.20
32	29724-66J00-140	SHIM,CTR DIFF CAM T:1.40
32	29724-66J00-160	SHIM,CTR DIFF CAM T:1.60
32	29724-66J00-180	SHIM,CTR DIFF CAM T:1.80
32	29724-66J00-200	SHIM,CTR DIFF CAM T:2.00
32	29724-66J00-220	SHIM,CTR DIFF CAM T:2.20
32	29724-66J00-240	SHIM,CTR DIFF CAM T:2.40
33	29151-66J21-000	SHAFT,FRONT OUTPUT
34	29152-66J00-000	PIN,OIL PUMP DRIVE
35	29160-66J04-000	FLANGE,T/F OUTPUT SHAFT
36	29181-80K00-000	WASHER,FR OUTPUT SHAFT
37	09159-20009-000	NUT
38	09262-30077-000	BEARING(30X72X19) - Bearing, sub t/m output, r
39	08211-20345-000	WASHER

OEM	Part name	Category
08113-63070-000	Bearing	Transfer gear (TYPE 5:4 MODE:W/LSD)
08211-20345-000	WASHER	Transfer gear (TYPE 5:4 MODE:W/LSD)
08331-31359-000	CIRCLIP	Transfer gear (TYPE 5:4 MODE:W/LSD)
08331-3135A-000	Circlip	Transfer gear (TYPE 5:4 MODE:W/LSD)
08331-31383-000	CIRCLIP	Transfer gear (TYPE 5:4 MODE:W/LSD)
08331-31409-000	CIRCLIP	Transfer gear (TYPE 5:4 MODE:W/LSD)
08331-3140A-000	Circlip	Transfer gear (TYPE 5:4 MODE:W/LSD)
08331-31509-000	CIRCLIP	Transfer gear (TYPE 5:4 MODE:W/LSD)
09159-20009-000	NUT	Transfer gear (TYPE 5:4 MODE:W/LSD)
09262-30077-000	BEARING(30X72X19) - Bearing, sub t/m output, r	Transfer gear (TYPE 5:4 MODE:W/LSD)
09381-22012-000	RING,SNAP	Transfer gear (TYPE 5:4 MODE:W/LSD)
29110-66J31-000	GEAR,T/F INPUT	Transfer gear (TYPE 5:4 MODE:W/LSD)
29116-80K00-000	SPACER,T/F INPUT GEAR	Transfer gear (TYPE 5:4 MODE:W/LSD)
29117-80K00-000	RING,T/F INPUT GEAR SEAL	Transfer gear (TYPE 5:4 MODE:W/LSD)
29121-66J00-000	GEAR,T/F COUNTER	Transfer gear (TYPE 5:4 MODE:W/LSD)
29141-76K00-000	SHAFT,REAR OUTPUT	Transfer gear (TYPE 5:4 MODE:W/LSD)
29151-66J21-000	SHAFT,FRONT OUTPUT	Transfer gear (TYPE 5:4 MODE:W/LSD)
29152-66J00-000	PIN,OIL PUMP DRIVE	Transfer gear (TYPE 5:4 MODE:W/LSD)
29160-66J04-000	FLANGE,T/F OUTPUT SHAFT	Transfer gear (TYPE 5:4 MODE:W/LSD)
29181-80K00-000	WASHER,FR OUTPUT SHAFT	Transfer gear (TYPE 5:4 MODE:W/LSD)
29211-66J00-000	GEAR,LOW	Transfer gear (TYPE 5:4 MODE:W/LSD)
29221-66J00-000	SPROCKET,FRONT DRIVE	Transfer gear (TYPE 5:4 MODE:W/LSD)
29222-66J00-000	BUSH,FR DRIVE SPROCKET	Transfer gear (TYPE 5:4 MODE:W/LSD)
29223-66J00-000	SHAFT,FRONT DRIVE	Transfer gear (TYPE 5:4 MODE:W/LSD)
29225-66J01-000	CHAIN,FR DRIVE	Transfer gear (TYPE 5:4 MODE:W/LSD)
29241-66J01-000	SLEEVE,REDUCTION SHIFT	Transfer gear (TYPE 5:4 MODE:W/LSD)
29262-66J00-000	SLEEVE,DIFF LOCK CLUTCH	Transfer gear (TYPE 5:4 MODE:W/LSD)
29380-66J00-000	CIRCLIP,RR OUTPUT BRG NO.2	Transfer gear (TYPE 5:4 MODE:W/LSD)
29710-66J10-000	DIFFERENTIAL ASSY,CENTER LSD	Transfer gear (TYPE 5:4 MODE:W/LSD)
29722-66J00-000	WASHER,CTR DIFF CAM	Transfer gear (TYPE 5:4 MODE:W/LSD)
29724-66J00-040	SHIM,CTR DIFF CAM T:0.40	Transfer gear (TYPE 5:4 MODE:W/LSD)
29724-66J00-060	SHIM,CTR DIFF CAM T:0.60	Transfer gear (TYPE 5:4 MODE:W/LSD)
29724-66J00-080	SHIM,CTR DIFF CAM T:0.80	Transfer gear (TYPE 5:4 MODE:W/LSD)
29724-66J00-100	SHIM,CTR DIFF CAM T:1.00	Transfer gear (TYPE 5:4 MODE:W/LSD)
29724-66J00-120	SHIM,CTR DIFF CAM T:1.20	Transfer gear (TYPE 5:4 MODE:W/LSD)
29724-66J00-140	SHIM,CTR DIFF CAM T:1.40	Transfer gear (TYPE 5:4 MODE:W/LSD)
29724-66J00-160	SHIM,CTR DIFF CAM T:1.60	Transfer gear (TYPE 5:4 MODE:W/LSD)
29724-66J00-180	SHIM,CTR DIFF CAM T:1.80	Transfer gear (TYPE 5:4 MODE:W/LSD)
29724-66J00-200	SHIM,CTR DIFF CAM T:2.00	Transfer gear (TYPE 5:4 MODE:W/LSD)
29724-66J00-220	SHIM,CTR DIFF CAM T:2.20	Transfer gear (TYPE 5:4 MODE:W/LSD)
29724-66J00-240	SHIM,CTR DIFF CAM T:2.40	Transfer gear (TYPE 5:4 MODE:W/LSD)
29921-66J30-000	BEARING,T/F INPUT GEAR RR	Transfer gear (TYPE 5:4 MODE:W/LSD)
29922-66J00-000	BEARING,T/F INPUT GEAR NDL	Transfer gear (TYPE 5:4 MODE:W/LSD)
29923-66J00-000	BEARING,T/F COUNTER GEAR NDL	Transfer gear (TYPE 5:4 MODE:W/LSD)
29924-66J00-000	BEARING,FR DR SPRKT NDL	Transfer gear (TYPE 5:4 MODE:W/LSD)
29925-66J00-000	BEARING,FR DR SFT NDL	Transfer gear (TYPE 5:4 MODE:W/LSD)
29927-66J00-000	BEARING,FR DR SFT THR NDL	Transfer gear (TYPE 5:4 MODE:W/LSD)
29928-66J00-000	BEARING,LOW GEAR NDL	Transfer gear (TYPE 5:4 MODE:W/LSD)
29931-66J00-000	BEARING,T/F INPUT GEAR FR	Transfer gear (TYPE 5:4 MODE:W/LSD)
29932-66J00-000	BEARING,RR OUTPUT SFT	Transfer gear (TYPE 5:4 MODE:W/LSD)
29933-80K00-000	BEARING,RR OUTPUT SHAFT NO.2	Transfer gear (TYPE 5:4 MODE:W/LSD)
