Search › Model › JB424X
JB424X

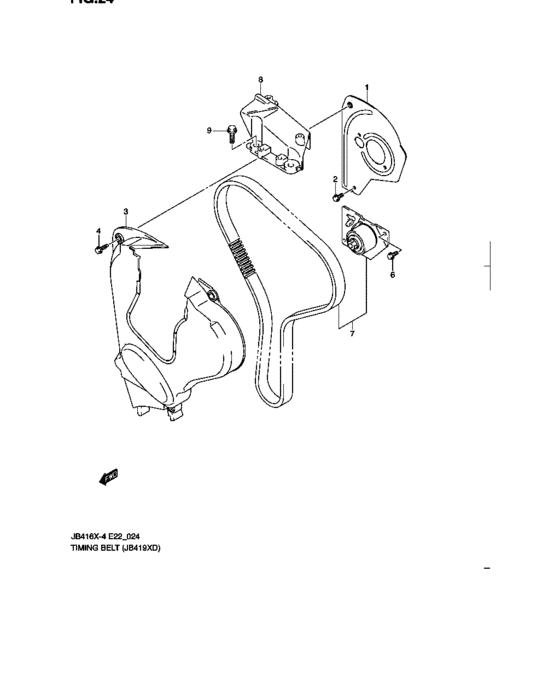

Timing belt (TYPE 4:JB419XD) 9
| # | OEM | Part name |
|---|---|---|
| 1 | 11361-67JG1-000 | Cover,timing belt |
| 1 | 11361-67JG2-000 | COVER,TIMING BELT |
| 2 | 19914-67JG1-000 | BOLT,6X14 |
| 3 | 11391-67JG0-000 | HOUSING,COVER |
| 4 | 18528-84A51-000 | BOLT,6X23 |
| 5 | 11371-67JG0-000 | COVER |
| 7 | 12760-67JG1-000 | BELT&TENSIONER SET,TIMING |
| 8 | 11391-67JA0-000 | COVER,TIMING BELT OUTSIDE |
| 9 | 11617-67J00-000 | BOLT,TIMING BELT COVER |
| OEM | Part name | Category |
|---|---|---|
| 11361-67JG1-000 | Cover,timing belt | Timing belt (TYPE 4:JB419XD) |
| 11361-67JG2-000 | COVER,TIMING BELT | Timing belt (TYPE 4:JB419XD) |
| 11371-67JG0-000 | COVER | Timing belt (TYPE 4:JB419XD) |
| 11391-67JA0-000 | COVER,TIMING BELT OUTSIDE | Timing belt (TYPE 4:JB419XD) |
| 11391-67JG0-000 | HOUSING,COVER | Timing belt (TYPE 4:JB419XD) |
| 11617-67J00-000 | BOLT,TIMING BELT COVER | Timing belt (TYPE 4:JB419XD) |
| 12760-67JG1-000 | BELT&TENSIONER SET,TIMING | Timing belt (TYPE 4:JB419XD) |
| 18528-84A51-000 | BOLT,6X23 | Timing belt (TYPE 4:JB419XD) |
| 19914-67JG1-000 | BOLT,6X14 | Timing belt (TYPE 4:JB419XD) |
