Search › Model › JB424X
JB424X

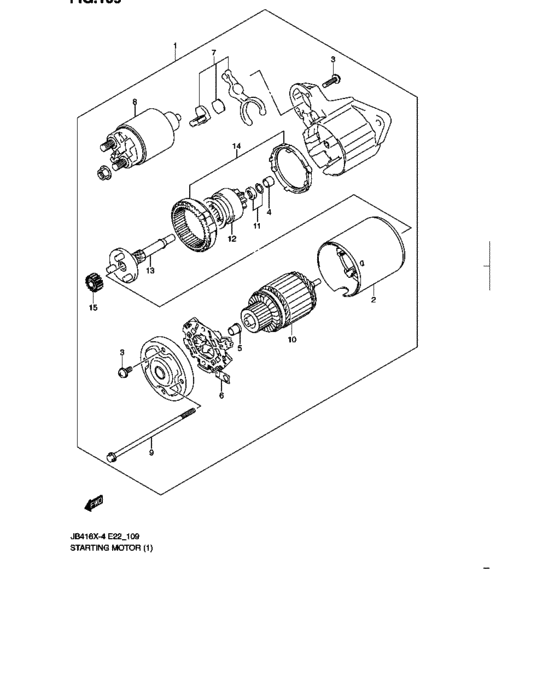

Starting motor (JB416X) 18
| # | OEM | Part name |
|---|---|---|
| 1 | 31100-63J00-000 | MOTOR ASSY,STARTING |
| 1 | 31100-63J01-000 | MOTOR ASSYSTARTING |
| 2 | 31110-63J00-000 | YOKE ASSY |
| 3 | 31136-79030-000 | SCREW ASSY |
| 3 | 31175-79030-000 | Screw Set |
| 4 | 31152-63J00-000 | BEARING,FRONT |
| 5 | 31172-64B60-000 | BEARING,REAR |
| 6 | 31173-63J00-000 | BRUSH ASSY |
| 7 | 31191-63J00-000 | LEVER ASSY |
| 8 | 31220-63J00-000 | SWITCH ASSY |
| 9 | 31261-75F10-000 | Bolt |
| 10 | 31311-63J00-000 | ARMATURE |
| 11 | 31313-86030-000 | STOPPER SET |
| 11 | 31314-86030-000 | Stopper Set |
| 12 | 31320-63J00-000 | CLUTCH,OVER RUNNING |
| 13 | 31341-63J00-000 | SHAFT ASSY,GEAR |
| 14 | 31343-63J00-000 | INTERNAL GEAR |
| 15 | 31344-63J00-000 | GEAR ASSY |
| OEM | Part name | Category |
|---|---|---|
| 31100-63J00-000 | MOTOR ASSY,STARTING | Starting motor (JB416X) |
| 31100-63J01-000 | MOTOR ASSYSTARTING | Starting motor (JB416X) |
| 31110-63J00-000 | YOKE ASSY | Starting motor (JB416X) |
| 31136-79030-000 | SCREW ASSY | Starting motor (JB416X) |
| 31152-63J00-000 | BEARING,FRONT | Starting motor (JB416X) |
| 31172-64B60-000 | BEARING,REAR | Starting motor (JB416X) |
| 31173-63J00-000 | BRUSH ASSY | Starting motor (JB416X) |
| 31175-79030-000 | Screw Set | Starting motor (JB416X) |
| 31191-63J00-000 | LEVER ASSY | Starting motor (JB416X) |
| 31220-63J00-000 | SWITCH ASSY | Starting motor (JB416X) |
| 31261-75F10-000 | Bolt | Starting motor (JB416X) |
| 31311-63J00-000 | ARMATURE | Starting motor (JB416X) |
| 31313-86030-000 | STOPPER SET | Starting motor (JB416X) |
| 31314-86030-000 | Stopper Set | Starting motor (JB416X) |
| 31320-63J00-000 | CLUTCH,OVER RUNNING | Starting motor (JB416X) |
| 31341-63J00-000 | SHAFT ASSY,GEAR | Starting motor (JB416X) |
| 31343-63J00-000 | INTERNAL GEAR | Starting motor (JB416X) |
| 31344-63J00-000 | GEAR ASSY | Starting motor (JB416X) |
