Search › Model › JB424X
JB424X

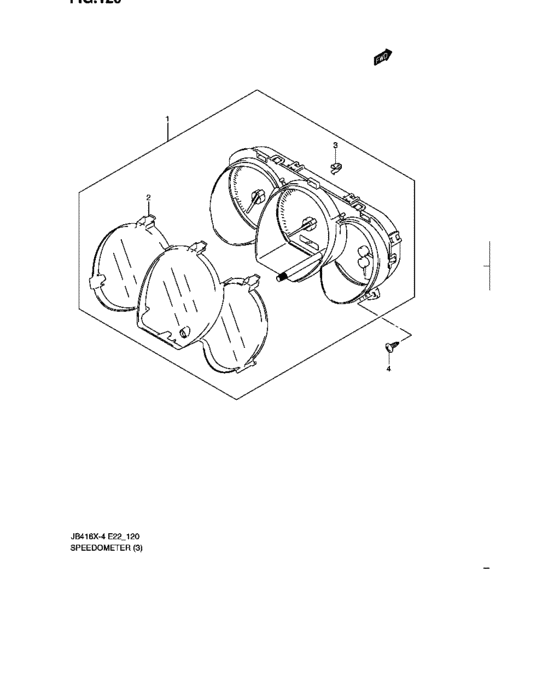

Speedometer (JB419XD) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 34100-80K51-000 | Peedometer assy,comb |
| 1 | 34100-80K41-000 | SPEEDOMETER ASSY,COMB |
| 1 | 34100-80K11-000 | SPEEDOMETER ASSY,COMB |
| 1 | 34100-80K01-000 | SPEEDOMETER ASSY,COMB |
| 1 | 34101-80K40-000 | SPEEDOMETER ASSY,COMB |
| 1 | 34101-80K10-000 | SPEEDOMETER ASSY,COMB |
| 1 | 34101-80K00-000 | SPEEDOMETER ASSY,COMB |
| 2 | 34112-77K00-000 | GLASS,METER WINDOW |
| 3 | 09409-08342-000 | CLIP |
| 4 | 03541-0516A-000 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 03541-0516A-000 | SCREW | Speedometer (JB419XD) |
| 09409-08342-000 | CLIP | Speedometer (JB419XD) |
| 34100-80K01-000 | SPEEDOMETER ASSY,COMB | Speedometer (JB419XD) |
| 34100-80K11-000 | SPEEDOMETER ASSY,COMB | Speedometer (JB419XD) |
| 34100-80K41-000 | SPEEDOMETER ASSY,COMB | Speedometer (JB419XD) |
| 34100-80K51-000 | Peedometer assy,comb | Speedometer (JB419XD) |
| 34101-80K00-000 | SPEEDOMETER ASSY,COMB | Speedometer (JB419XD) |
| 34101-80K10-000 | SPEEDOMETER ASSY,COMB | Speedometer (JB419XD) |
| 34101-80K40-000 | SPEEDOMETER ASSY,COMB | Speedometer (JB419XD) |
| 34112-77K00-000 | GLASS,METER WINDOW | Speedometer (JB419XD) |
