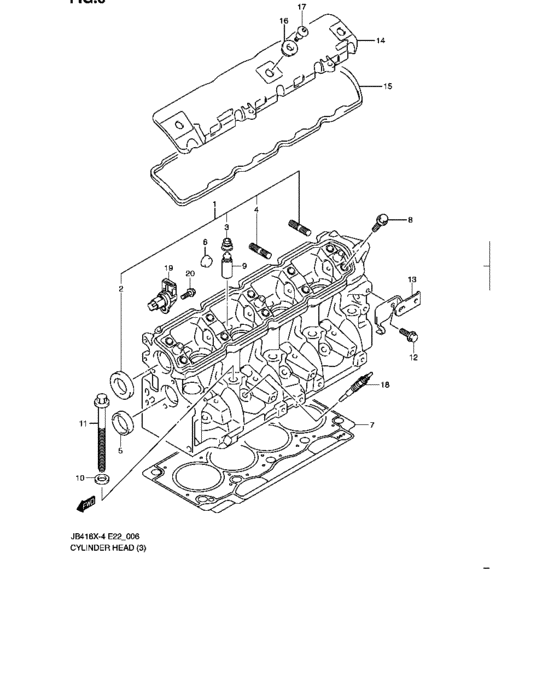

Cylinder head (JB419XD)
25
| # | OEM | Part name |
|---|
| 1 |
11110-67JG1-000 |
HEAD SET,CYLINDER |
| 1 |
11110-80KA0-000 |
Head set, cylinder |
| 2 |
11127-67JG0-000 |
OIL SEAL,CAMSHAFT |
| 3 |
12919-67JG0-000 |
SEAL,VALVE STEM |
| 4 |
19939-67JG1-000 |
STUD BOLT,M8 |
| 5 |
11293-67JG0-000 |
CAP,D38 |
| 6 |
11129-67JG0-000 |
CAP |
| 7 |
11141-67JG3-000 |
GASKET,CYL HEAD |
| 7 |
11141-80KA0-000 |
Gasket, cylinder head |
| 8 |
11128-67JG1-000 |
BOLT,8X38 |
| 9 |
11115-67JG1-000 |
GUIDE,VALVE |
| 10 |
11147-67JG0-000 |
WASHER |
| 11 |
11146-67JG0-000 |
BOLT,CYLINDER HEAD |
| 12 |
19941-67JG0-000 |
BOLT,8X20 |
| 13 |
11191-67JH0-000 |
BRACKET,RETENTION |
| 14 |
11170-67JG0-000 |
Cover,cylinder head |
| 15 |
11179-67JG0-000 |
GASKET,CYL HEAD COVER |
| 16 |
11178-67JG0-000 |
Gasket,head cover bolt |
| 16 |
11178-67JG1-000 |
GASKET,HEAD COVER BOLT |
| 17 |
11177-67JG1-000 |
BOLT,CYLINDER HEAD COVER |
| 18 |
18550-84A51-000 |
PLUG,GLOW |
| 18 |
18550-80KA0-000 |
Plug, glow |
| 19 |
33220-67J12-000 |
SENSOR,CAM POSITION |
| 19 |
33220-80KA0-000 |
Sensor, cam position |
| 20 |
19914-67JG1-000 |
BOLT,6X14 |
| OEM |
Part name |
Category |
| 11110-67JG1-000 |
HEAD SET,CYLINDER |
Cylinder head (JB419XD) |
| 11110-80KA0-000 |
Head set, cylinder |
Cylinder head (JB419XD) |
| 11115-67JG1-000 |
GUIDE,VALVE |
Cylinder head (JB419XD) |
| 11127-67JG0-000 |
OIL SEAL,CAMSHAFT |
Cylinder head (JB419XD) |
| 11128-67JG1-000 |
BOLT,8X38 |
Cylinder head (JB419XD) |
| 11129-67JG0-000 |
CAP |
Cylinder head (JB419XD) |
| 11141-67JG3-000 |
GASKET,CYL HEAD |
Cylinder head (JB419XD) |
| 11141-80KA0-000 |
Gasket, cylinder head |
Cylinder head (JB419XD) |
| 11146-67JG0-000 |
BOLT,CYLINDER HEAD |
Cylinder head (JB419XD) |
| 11147-67JG0-000 |
WASHER |
Cylinder head (JB419XD) |
| 11170-67JG0-000 |
Cover,cylinder head |
Cylinder head (JB419XD) |
| 11177-67JG1-000 |
BOLT,CYLINDER HEAD COVER |
Cylinder head (JB419XD) |
| 11178-67JG0-000 |
Gasket,head cover bolt |
Cylinder head (JB419XD) |
| 11178-67JG1-000 |
GASKET,HEAD COVER BOLT |
Cylinder head (JB419XD) |
| 11179-67JG0-000 |
GASKET,CYL HEAD COVER |
Cylinder head (JB419XD) |
| 11191-67JH0-000 |
BRACKET,RETENTION |
Cylinder head (JB419XD) |
| 11293-67JG0-000 |
CAP,D38 |
Cylinder head (JB419XD) |
| 12919-67JG0-000 |
SEAL,VALVE STEM |
Cylinder head (JB419XD) |
| 18550-80KA0-000 |
Plug, glow |
Cylinder head (JB419XD) |
| 18550-84A51-000 |
PLUG,GLOW |
Cylinder head (JB419XD) |
| 19914-67JG1-000 |
BOLT,6X14 |
Cylinder head (JB419XD) |
| 19939-67JG1-000 |
STUD BOLT,M8 |
Cylinder head (JB419XD) |
| 19941-67JG0-000 |
BOLT,8X20 |
Cylinder head (JB419XD) |
| 33220-67J12-000 |
SENSOR,CAM POSITION |
Cylinder head (JB419XD) |
| 33220-80KA0-000 |
Sensor, cam position |
Cylinder head (JB419XD) |
