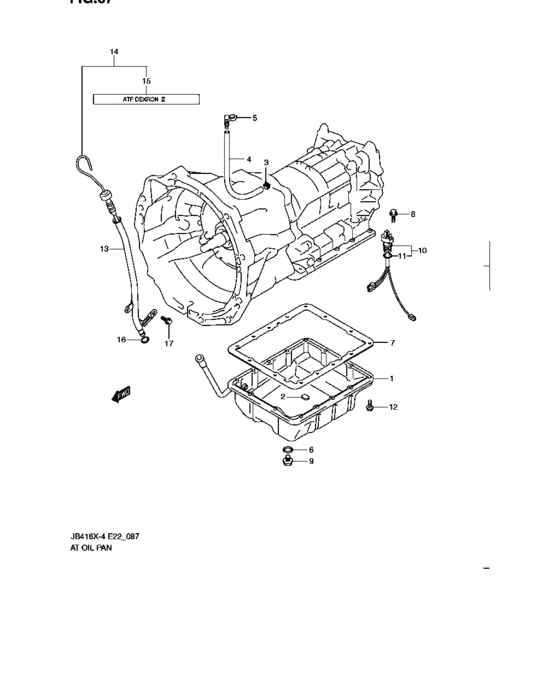

At oil pan (AT)
17
| # | OEM | Part name |
|---|
| 1 |
24741-65J11-000 |
PAN,T/M OIL |
| 2 |
24745-57B00-000 |
MAGNET,T/M OIL PAN |
| 3 |
24735-57B00-000 |
CLIP,BREATHER HOSE |
| 4 |
24771-65D00-000 |
HOSE,BREATHER T/M |
| 5 |
24773-57B00-000 |
BREATHER,AT T/M |
| 6 |
24781-57B00-000 |
GASKET,DRAIN PLUG |
| 7 |
24782-57B00-000 |
GASKET,T/M OIL PAN |
| 8 |
24813-57B00-000 |
Bolt |
| 9 |
24823-79C10-000 |
PLUG,DRAIN |
| 10 |
24892-65J10-000 |
HARNESS,SOLENOID WIRE |
| 11 |
29726-57B00-000 |
O-RING,SOL WIRE HARN |
| 12 |
09117-06002-000 |
BOLT(6X14) |
| 13 |
22940-78K10-000 |
TUBE,OIL FILLER |
| 14 |
22950-65J10-000 |
GAUGE,OIL |
| 15 |
24839-63J10-000 |
EMBLEM,ATF |
| 16 |
09280-10016-000 |
O RING(D:1.9,ID:9.8) |
| 17 |
01550-0816A-000 |
Bolt - Bolt, rear |
| OEM |
Part name |
Category |
| 01550-0816A-000 |
Bolt - Bolt, rear |
At oil pan (AT) |
| 09117-06002-000 |
BOLT(6X14) |
At oil pan (AT) |
| 09280-10016-000 |
O RING(D:1.9,ID:9.8) |
At oil pan (AT) |
| 22940-78K10-000 |
TUBE,OIL FILLER |
At oil pan (AT) |
| 22950-65J10-000 |
GAUGE,OIL |
At oil pan (AT) |
| 24735-57B00-000 |
CLIP,BREATHER HOSE |
At oil pan (AT) |
| 24741-65J11-000 |
PAN,T/M OIL |
At oil pan (AT) |
| 24745-57B00-000 |
MAGNET,T/M OIL PAN |
At oil pan (AT) |
| 24771-65D00-000 |
HOSE,BREATHER T/M |
At oil pan (AT) |
| 24773-57B00-000 |
BREATHER,AT T/M |
At oil pan (AT) |
| 24781-57B00-000 |
GASKET,DRAIN PLUG |
At oil pan (AT) |
| 24782-57B00-000 |
GASKET,T/M OIL PAN |
At oil pan (AT) |
| 24813-57B00-000 |
Bolt |
At oil pan (AT) |
| 24823-79C10-000 |
PLUG,DRAIN |
At oil pan (AT) |
| 24839-63J10-000 |
EMBLEM,ATF |
At oil pan (AT) |
| 24892-65J10-000 |
HARNESS,SOLENOID WIRE |
At oil pan (AT) |
| 29726-57B00-000 |
O-RING,SOL WIRE HARN |
At oil pan (AT) |
