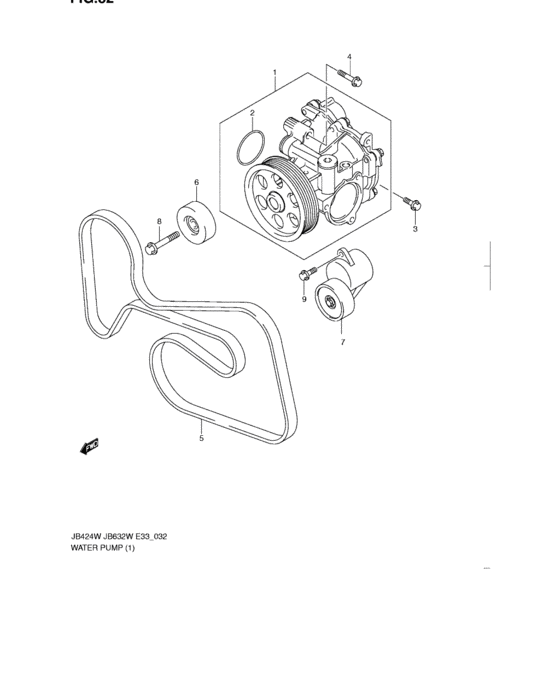

Water pump (JB424W:)
14
| # | OEM | Part name |
|---|
| 1 |
17400-78890-000 |
Pump assy,water |
| 1 |
17400-78893-000 |
PUMP SET,WATER |
| 2 |
17611-65J00-000 |
O-RING,WATER PUMP |
| 3 |
01550-0825A-000 |
Bolt |
| 4 |
01550-0850A-000 |
Bolt |
| 5 |
17521-54L30-000 |
Belt,water pump(6pk2045) |
| 5 |
17521-54L31-000 |
BELT,WATER PUMP 6PK2045 |
| 6 |
17530-78K00-000 |
Pulley,gen belt idler |
| 6 |
17530-78K01-000 |
PULLEY,GEN BELT IDLER |
| 7 |
17540-78K00-000 |
Tensioner assy,gen belt |
| 7 |
17540-54L00-000 |
TENSIONER ASSY,GEN BELT |
| 8 |
09103-10420-000 |
BOLT(10X65) |
| 8 |
09108-10141-000 |
BOLT,STUD |
| 10 |
09159-10046-XC0 |
NUT |
| OEM |
Part name |
Category |
| 01550-0825A-000 |
Bolt |
Water pump (JB424W:) |
| 01550-0850A-000 |
Bolt |
Water pump (JB424W:) |
| 09103-10420-000 |
BOLT(10X65) |
Water pump (JB424W:) |
| 09108-10141-000 |
BOLT,STUD |
Water pump (JB424W:) |
| 09159-10046-XC0 |
NUT |
Water pump (JB424W:) |
| 17400-78890-000 |
Pump assy,water |
Water pump (JB424W:) |
| 17400-78893-000 |
PUMP SET,WATER |
Water pump (JB424W:) |
| 17521-54L30-000 |
Belt,water pump(6pk2045) |
Water pump (JB424W:) |
| 17521-54L31-000 |
BELT,WATER PUMP 6PK2045 |
Water pump (JB424W:) |
| 17530-78K00-000 |
Pulley,gen belt idler |
Water pump (JB424W:) |
| 17530-78K01-000 |
PULLEY,GEN BELT IDLER |
Water pump (JB424W:) |
| 17540-54L00-000 |
TENSIONER ASSY,GEN BELT |
Water pump (JB424W:) |
| 17540-78K00-000 |
Tensioner assy,gen belt |
Water pump (JB424W:) |
| 17611-65J00-000 |
O-RING,WATER PUMP |
Water pump (JB424W:) |
