| 01421-0820A-000 |
BOLT,STUD |

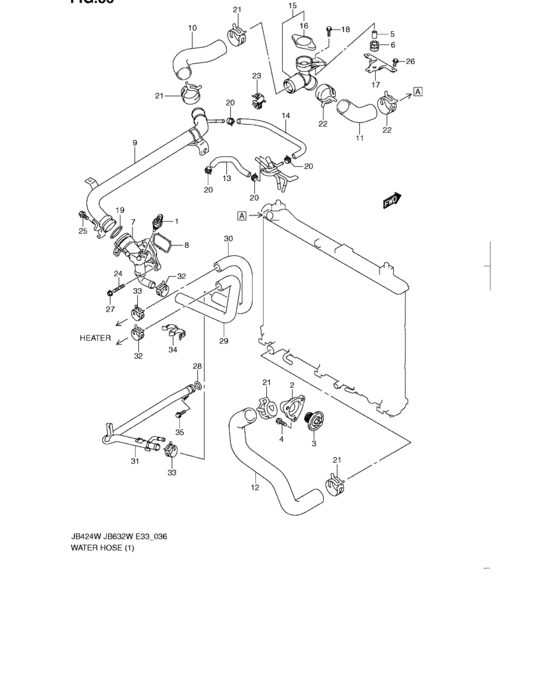

Water hose (JB424W:) |
| 01421-0825A-000 |
BOLT,STUD |
Water hose (JB424W:) |
| 01550-0612A-000 |
Bolt |
Water hose (JB424W:) |
| 01550-0620A-000 |
Bolt |
Water hose (JB424W:) |
| 01550-0816A-000 |
Bolt - Bolt, rear |
Water hose (JB424W:) |
| 01550-0825A-000 |
Bolt |
Water hose (JB424W:) |
| 02162-0612A-000 |
SCREW - Bolt, bracket |
Water hose (JB424W:) |
| 08316-1008A-000 |
NUT - Nut, idle gear shaft |
Water hose (JB424W:) |
| 09116-06172-000 |
BOLT(6X30) - Bolt (6x30) |
Water hose (JB424W:) |
| 09280-34005-000 |
O RING(D:3.5,ID:33.7) |
Water hose (JB424W:) |
| 09356-75141-600 |
HOSE(7.5X14.5X600) |
Water hose (JB424W:) |
| 09401-12410-000 |
CLIP - Clip, filter outlet |
Water hose (JB424W:) |
| 09401-21405-000 |
CLIP |
Water hose (JB424W:) |
| 09401-21407-000 |
CLIP |
Water hose (JB424W:) |
| 09401-35403-000 |
CLIP |
Water hose (JB424W:) |
| 09403-14315-000 |
CLAMP - Clamp, harness |
Water hose (JB424W:) |
| 09408-00243-000 |
CLAMP |
Water hose (JB424W:) |
| 13650-73H00-000 |
Sensor,water Temp |
Water hose (JB424W:) |
| 13877-65D00-000 |
COLLAR,7.6X10X19.3 |
Water hose (JB424W:) |
| 13878-65D00-000 |
CUSHION,12.5X22X19.5 |
Water hose (JB424W:) |
| 17560-57L00-000 |
CAP,WTR THERMOSTAT |
Water hose (JB424W:) |
| 17560-77EA0-000 |
Cap,wtr thermostat |
Water hose (JB424W:) |
| 17570-78K00-000 |
CAP,WATER OUTLET |
Water hose (JB424W:) |
| 17579-78K00-000 |
O-RING,WATER OUTLET CAP |
Water hose (JB424W:) |
| 17580-78K00-000 |
PIPE,WTR OUTLET |
Water hose (JB424W:) |
| 17670-63J00-000 |
THERMOSTAT,WATER 82 DEG |
Water hose (JB424W:) |
| 17841-78K00-000 |
HOSE,RADIATOR INLET |
Water hose (JB424W:) |
| 17842-64J00-000 |
HOSE,RDTR INLET NO.2 |
Water hose (JB424W:) |
| 17849-83G00-000 |
O-RING,HEATER OUTLET PIPE |
Water hose (JB424W:) |
| 17851-78K00-000 |
HOSE,RADIATOR OUTLET |
Water hose (JB424W:) |
| 17871-78K00-000 |
HOSE,HTR INLET |
Water hose (JB424W:) |
| 17872-78K00-000 |
HOSE,HTR OUTLET |
Water hose (JB424W:) |
| 17880-78K00-000 |
PIPE,HEATER OUTLET |
Water hose (JB424W:) |
| 17910-65J00-000 |
NECK ASSY,WTR FILLER |
Water hose (JB424W:) |
| 17915-65J00-000 |
BRACKET,FILLER NECK |
Water hose (JB424W:) |
| 17920-75F00-000 |
CAP,RADIATOR |
Water hose (JB424W:) |
