JB424W

Suzuki GRAND-VITARA · 3,453 parts · 169 categories
JB424W ×

← Back to categories

3,453 items

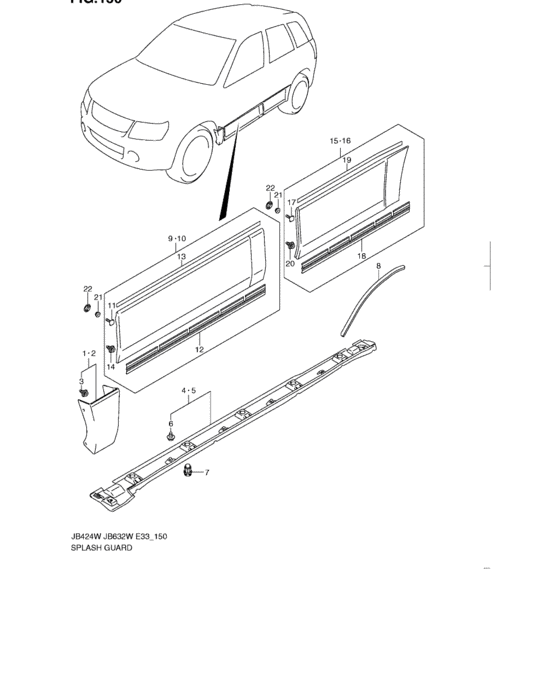

Splash guard (SPLASH GUARD) 102
#OEMPart name
1 77550-65J00-ZDK GUARD ASSY,FR FENDER SPL,R
1 77550-65J00-ZDL GUARD ASSY,FR FENDER SPL,R(GRA
1 77550-65J00-ZJP GUARD,FR FENDER SPL,R
1 77550-65J00-ZJ3 GUARD ASSY,FR FENDER SPL,R
1 77550-65J00-ZLA GUARD,FR FENDER SPL,R
1 77550-65J00-ZLB GUARD,FR FENDER SPL,R
1 77550-65J00-ZLC GUARD,FR FENDER SPL,R
1 77550-65J00-ZMA GUARD,FR FENDER SPL,R
1 77550-65J00-Z2S GUARD ASSY,FR FENDER SPL,R
1 77550-65J00-Z7T GUARD ASSY,FR FENDER SPL,R
1 77550-65J00-26U GUARD ASSY,FR FENDER SPL,R
2 77650-65J00-ZDK GUARD ASSY,FR FENDER SPL,L
2 77650-65J00-ZDL GUARD ASSY,FR FENDER SPL,L
2 77650-65J00-ZJP GUARD,FR SPL,L
2 77650-65J00-ZJ3 GUARD ASSY,FR FENDER SPL,L
2 77650-65J00-ZLA GUARD,FR SPL,L
2 77650-65J00-ZLB GUARD,FR SPL,L
2 77650-65J00-ZLC GUARD,FR SPL,L
2 77650-65J00-799 GUARD,FR FENDER SPL,L
2 77650-65J00-ZMA GUARD,FR FENDER SPL,L
2 77650-65J00-Z2S GUARD ASSY,FR FENDER SPL,L
2 77650-65J00-Z7T GUARD ASSY,FR FENDER SPL,L
2 77650-65J00-26U GUARD ASSY,FR FENDER SPL,L
3 09409-10312-000 CLIP
4 77560-65J00-000 GUARD ASSY,SIDE SILL SPLASH,R
5 77660-65J00-000 GUARD ASSY,SIDE SILL SPLASH,L
7 09409-15302-000 CLIP
8 77531-65J01-000 MOLDING,RR WHEEL FLANGE
9 77580-65820-ZDK GUARD,FR SPL,R(BEIGE)
9 77580-65820-ZDL GUARD,FR SPL,R(GRAY)
9 77580-65820-ZJP GUARD,FR SPL,R(BLUE)
9 77580-65820-ZJ3 GUARD,FR SPL,R(BLACK)
9 77580-65820-ZLA GUARD,FR SPL,R(PURPLE)
9 77580-65820-ZLB GUARD,FR SPL,R(RED)
9 77580-65820-ZLC GUARD,FR SPL,R(GREEN)
9 77580-65820-ZMA GUARD, FR DOOR SPLASH RH (GRAY)
9 77580-65820-Z2S GUARD,FR SPL,R(SILVER)
9 77580-65820-Z7T GUARD,FR SPL,R(WHITE)
9 77580-65820-26U GUARD,FR SPL,R(WHITE)
10 77680-65820-ZDK GUARD,FR SPL,L(BEIGE)
10 77680-65820-ZDL GUARD,FR SPL,L(GRAY)
10 77680-65820-ZJP GUARD,FR SPL,L(BLUE)
10 77680-65820-ZJ3 GUARD,FR SPL,L(BLACK)
10 77680-65820-ZLA GUARD,FR SPL,L(PURPLE)
10 77680-65820-ZLB GUARD,FR SPL,L(RED)
10 77680-65820-ZLC GUARD,FR SPL,L(GREEN)
10 77680-65820-ZMA GUARD, FR DOOR SPLASH LH (GRAY)
10 77680-65820-Z2S GUARD,FR SPL,L(SILVER)
10 77680-65820-Z7T GUARD,FR SPL,L(WHITE)
10 77680-65820-26U GUARD,FR SPL,L(WHITE)
11 77225-78F10-000 Bolt
12 77582-65J10-000 WEATHERSTRIP,FR DR SPLASH
13 77583-65J00-000 TAPE,FR DOOR SPLASH
15 77590-65J10-ZDK Guard,rr door splash,r(beige)
15 77590-65J12-ZDK GUARD,RR SPL,R
15 77590-65J10-ZDL Guard,rr door splash,r(gray)
15 77590-65J12-ZDL GUARD,RR SPL,R
15 77590-65J10-ZJP Guard,rr door splash,r(blue)
15 77590-65J12-ZJP GUARD,RR SPL,R
15 77590-65J10-ZJ3 Guard,rr door splash,r(black)
15 77590-65J12-ZJ3 GUARD,RR SPL,R
15 77590-65J10-ZLA Guard,rr door splash,r(purple)
15 77590-65J12-ZLA GUARD,RR SPL,R
15 77590-65J10-ZLB Guard,rr door splash,r(red)
15 77590-65J12-ZLB GUARD,RR SPL,R
15 77590-65J10-ZLC Guard,rr door splash,r(green)
15 77590-65J12-ZLC GUARD,RR SPL,R
15 77590-65J10-ZMA Guard,rr door splash,r(gray)
15 77590-65J12-ZMA GUARD,RR SPL,R
15 77590-65J10-Z2S Guard,rr door splash,r(silver)
15 77590-65J12-Z2S GUARD,RR SPL,R
15 77590-65J10-Z7T Guard,rr door splash,r(white)
15 77590-65J12-Z7T GUARD,RR SPL,R
15 77590-65J10-26U Guard,rr door splash,r(white)
15 77590-65J12-26U GUARD,RR SPL,R
16 77690-65J10-ZDK Guard,rr door splash,l(beige)
16 77690-65J12-ZDK GUARD,RR SPL,L
16 77690-65J10-ZDL Guard,rr door splash,l(gray)
16 77690-65J12-ZDL GUARD,RR SPL,L
16 77690-65J10-ZJP Guard,rr door splash,l(blue)
16 77690-65J12-ZJP GUARD,RR SPL,L
16 77690-65J10-ZJ3 Guard,rr door splash,l(black)
16 77690-65J12-ZJ3 GUARD, RR DOOR SPLASH LH (BLACK)
16 77690-65J10-ZLA Guard,rr door splash,l(purple)
16 77690-65J12-ZLA GUARD,RR SPL,L
16 77690-65J10-ZLB Guard,rr door splash,l(red)
16 77690-65J12-ZLB GUARD,RR SPL,L
16 77690-65J10-ZLC Guard,rr door splash,l(green)
16 77690-65J12-ZLC GUARD,RR SPL,L
16 77690-65J10-ZMA Guard,rr door splash,l(gray)
16 77690-65J12-ZMA GUARD,RR SPL,L
16 77690-65J10-Z2S Guard,rr door splash,l(silver)
16 77690-65J12-Z2S GUARD,RR SPL,L
16 77690-65J10-Z7T Guard,rr door splash,l(white)
16 77690-65J12-Z7T GUARD,RR SPL,L
16 77690-65J10-26U Guard,rr door splash,l(white)
16 77690-65J12-26U GUARD,RR SPL,L
18 77592-65J10-000 WEATHERSTRIP,RR DR SPLASH
19 77593-65J00-000 Tape,rear door splash
19 77593-65J02-000 TAPE,RR DOOR SPLASH
21 09159-05049-000 NUT
22 09250-25007-000 CAP(OD:25.0)
