JB424W

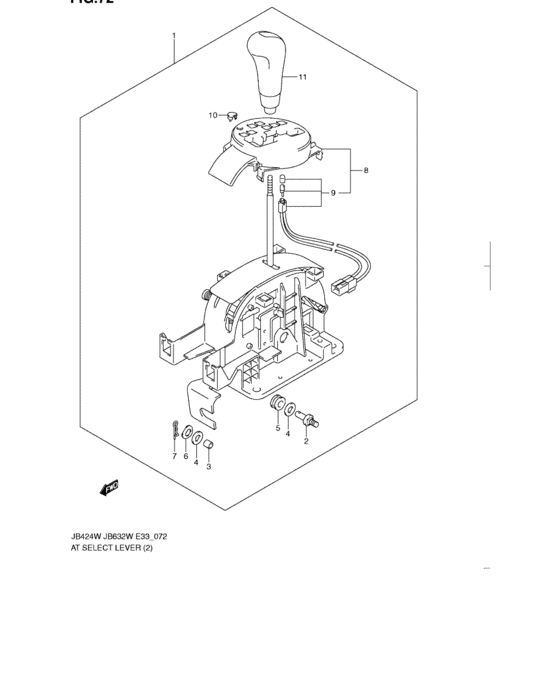

Select lever (AT:JB632W) 13
| # | OEM | Part name |
|---|---|---|
| 1 | 28100-64JK2-BWK | Selector assy,manual |
| 1 | 28100-64JK4-BWK | SELECTOR ASSY,MANUAL |
| 2 | 28141-64J11-000 | PIN |
| 3 | 28142-64J11-000 | TUBE |
| 4 | 28143-64J11-000 | WASHER |
| 5 | 28144-64J10-000 | INSULATOR |
| 6 | 28145-64J11-000 | WASHER |
| 7 | 28146-64J11-000 | PIN |
| 8 | 28150-64JK0-5PK | INDICATOR ASSY |
| 9 | 28159-64JH0-000 | LAMP ASSY |
| 10 | 28157-64J10-000 | CAP |
| 11 | 28160-62J11-BWK | KNOB ASSY,SELECT LEVER |
| 11 | 28160-62J12-BWK | KNOB ASSY,SELECT LEVER |
| OEM | Part name | Category |
|---|---|---|
| 28100-64JK2-BWK | Selector assy,manual | Select lever (AT:JB632W) |
| 28100-64JK4-BWK | SELECTOR ASSY,MANUAL | Select lever (AT:JB632W) |
| 28141-64J11-000 | PIN | Select lever (AT:JB632W) |
| 28142-64J11-000 | TUBE | Select lever (AT:JB632W) |
| 28143-64J11-000 | WASHER | Select lever (AT:JB632W) |
| 28144-64J10-000 | INSULATOR | Select lever (AT:JB632W) |
| 28145-64J11-000 | WASHER | Select lever (AT:JB632W) |
| 28146-64J11-000 | PIN | Select lever (AT:JB632W) |
| 28150-64JK0-5PK | INDICATOR ASSY | Select lever (AT:JB632W) |
| 28157-64J10-000 | CAP | Select lever (AT:JB632W) |
| 28159-64JH0-000 | LAMP ASSY | Select lever (AT:JB632W) |
| 28160-62J11-BWK | KNOB ASSY,SELECT LEVER | Select lever (AT:JB632W) |
| 28160-62J12-BWK | KNOB ASSY,SELECT LEVER | Select lever (AT:JB632W) |
