Search › Model › JB424W
JB424W

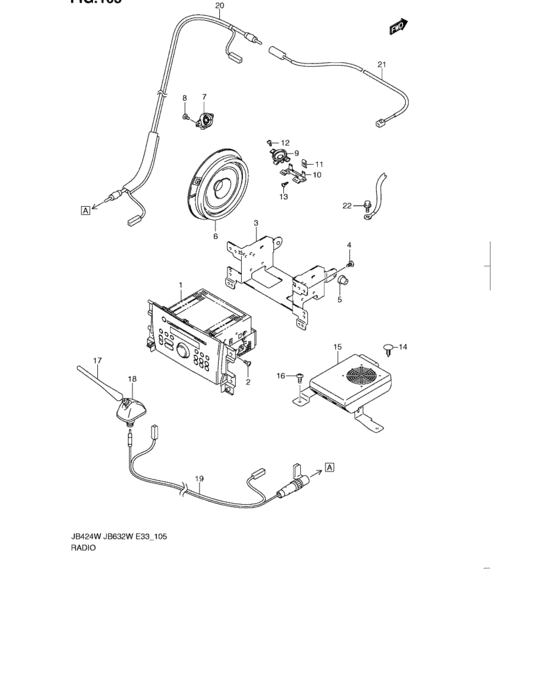

Radio (RADIO) 31
| # | OEM | Part name |
|---|---|---|
| 1 | 39101-76KA1-ZCA | TUNER ASSY |
| 1 | 39101-76KA1-ZS1 | TUNER ASSY |
| 1 | 39101-76KB1-ZCA | TUNER ASSY |
| 1 | 39101-76KB1-ZS1 | TUNER ASSY |
| 1 | 39101-78KA0-ZCA | TUNER ASSY |
| 1 | 39101-78KA0-ZS1 | TUNER ASSY |
| 1 | 39101-77KB1-ZCA | TUNER ASSY |
| 1 | 39101-77KB1-ZS1 | TUNER ASSY |
| 1 | 39101-79KA0-ZCA | TUNER ASSY |
| 1 | 39101-79KA0-ZS1 | TUNER ASSY |
| 2 | 02142-0506A-000 | SCREW |
| 3 | 39321-65J00-000 | BRACKET,TUNER |
| 4 | 03541-0512A-000 | SCREW |
| 5 | 34955-54G10-000 | BUSH,RADIO BRKT |
| 6 | 39102-65J30-000 | SPEAKER ASSY |
| 7 | 39102-65J20-000 | SPEAKER ASSY,TWEETER |
| 8 | 03541-0410A-000 | SCREW |
| 9 | 39102-68HA0-000 | SPEAKER ASSY,CTR |
| 10 | 39350-76K00-000 | BRACKET,CTR SPKR |
| 11 | 09148-05045-000 | NUT |
| 12 | 02142-0512A-000 | SCREW - Screw, lower |
| 13 | 03141-0512A-000 | SCREW - Screw, belt cooling duct |
| 14 | 09409-06326-5PK | CLIP(BLACK) |
| 15 | 39104-76K00-000 | SPEAKER ASSY,SUB |
| 16 | 02162-0616B-000 | SCREW - Bolt, adjust |
| 17 | 39251-64J00-000 | ROD,ANTENNA |
| 18 | 39253-65JB0-000 | BASE,ANTENNA |
| 19 | 39271-66JD0-000 | FEEDER,ANT BACK |
| 20 | 39271-76KA0-000 | FEEDER,ANT ROOF |
| 21 | 39270-64JA0-000 | FEEDER,ANT I/P |
| 22 | 09115-06005-000 | BOLT(6X16) |
| OEM | Part name | Category |
|---|---|---|
| 02142-0506A-000 | SCREW | Radio (RADIO) |
| 02142-0512A-000 | SCREW - Screw, lower | Radio (RADIO) |
| 02162-0616B-000 | SCREW - Bolt, adjust | Radio (RADIO) |
| 03141-0512A-000 | SCREW - Screw, belt cooling duct | Radio (RADIO) |
| 03541-0410A-000 | SCREW | Radio (RADIO) |
| 03541-0512A-000 | SCREW | Radio (RADIO) |
| 09115-06005-000 | BOLT(6X16) | Radio (RADIO) |
| 09148-05045-000 | NUT | Radio (RADIO) |
| 09409-06326-5PK | CLIP(BLACK) | Radio (RADIO) |
| 34955-54G10-000 | BUSH,RADIO BRKT | Radio (RADIO) |
| 39101-76KA1-ZCA | TUNER ASSY | Radio (RADIO) |
| 39101-76KA1-ZS1 | TUNER ASSY | Radio (RADIO) |
| 39101-76KB1-ZCA | TUNER ASSY | Radio (RADIO) |
| 39101-76KB1-ZS1 | TUNER ASSY | Radio (RADIO) |
| 39101-77KB1-ZCA | TUNER ASSY | Radio (RADIO) |
| 39101-77KB1-ZS1 | TUNER ASSY | Radio (RADIO) |
| 39101-78KA0-ZCA | TUNER ASSY | Radio (RADIO) |
| 39101-78KA0-ZS1 | TUNER ASSY | Radio (RADIO) |
| 39101-79KA0-ZCA | TUNER ASSY | Radio (RADIO) |
| 39101-79KA0-ZS1 | TUNER ASSY | Radio (RADIO) |
| 39102-65J20-000 | SPEAKER ASSY,TWEETER | Radio (RADIO) |
| 39102-65J30-000 | SPEAKER ASSY | Radio (RADIO) |
| 39102-68HA0-000 | SPEAKER ASSY,CTR | Radio (RADIO) |
| 39104-76K00-000 | SPEAKER ASSY,SUB | Radio (RADIO) |
| 39251-64J00-000 | ROD,ANTENNA | Radio (RADIO) |
| 39253-65JB0-000 | BASE,ANTENNA | Radio (RADIO) |
| 39270-64JA0-000 | FEEDER,ANT I/P | Radio (RADIO) |
| 39271-66JD0-000 | FEEDER,ANT BACK | Radio (RADIO) |
| 39271-76KA0-000 | FEEDER,ANT ROOF | Radio (RADIO) |
| 39321-65J00-000 | BRACKET,TUNER | Radio (RADIO) |
| 39350-76K00-000 | BRACKET,CTR SPKR | Radio (RADIO) |
