Search › Model › JB424W
JB424W

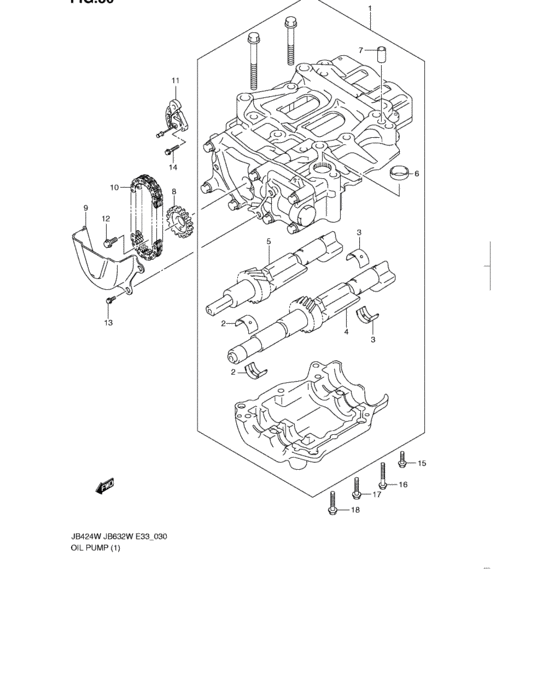

Oil pump (JB424W) 21
| # | OEM | Part name |
|---|---|---|
| 1 | 16100-78K00-000 | Pump assy,oil |
| 1 | 16100-78K01-000 | PUMP ASSY,OIL |
| 2 | 12227-78K00-000 | BEARING,BALANCER NO.1 |
| 3 | 12227-78K50-000 | BEARING,BALANCER NO.2 |
| 4 | 12230-78K00-000 | Shaft,balancer no.1 |
| 4 | 12230-78K01-000 | SHAFT,BALANCER NO.1 |
| 5 | 12240-78K00-000 | SHAFT,BALANCER NO.2 |
| 6 | 16114-85FA2-000 | PIN,OIL PUMP CASE |
| 7 | 04211-09109-000 | PIN - Knock pin |
| 8 | 16113-78K00-000 | SPROCKET,OIL PUMP |
| 9 | 16160-78K00-000 | COVER,OIL PUMP SPROCKET |
| 10 | 16760-78K00-000 | CHAIN,OIL PUMP DRIVE |
| 11 | 16770-78K00-000 | Adjuster,oil pump chain |
| 11 | 16770-78K03-000 | ADJUSTER,OIL PUMP CHAIN |
| 12 | 09103-10275-000 | BOLT(10X25) - Bolt, front |
| 13 | 01550-0612A-000 | Bolt |
| 14 | 01550-0635A-000 | Bolt |
| 15 | 01550-0845A-000 | Bolt - Bolt, oil pump (s) |
| 16 | 01550-0885A-000 | Bolt |
| 17 | 01550-1065A-000 | Bolt |
| 18 | 01550-1075A-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01550-0612A-000 | Bolt | Oil pump (JB424W) |
| 01550-0635A-000 | Bolt | Oil pump (JB424W) |
| 01550-0845A-000 | Bolt - Bolt, oil pump (s) | Oil pump (JB424W) |
| 01550-0885A-000 | Bolt | Oil pump (JB424W) |
| 01550-1065A-000 | Bolt | Oil pump (JB424W) |
| 01550-1075A-000 | Bolt | Oil pump (JB424W) |
| 04211-09109-000 | PIN - Knock pin | Oil pump (JB424W) |
| 09103-10275-000 | BOLT(10X25) - Bolt, front | Oil pump (JB424W) |
| 12227-78K00-000 | BEARING,BALANCER NO.1 | Oil pump (JB424W) |
| 12227-78K50-000 | BEARING,BALANCER NO.2 | Oil pump (JB424W) |
| 12230-78K00-000 | Shaft,balancer no.1 | Oil pump (JB424W) |
| 12230-78K01-000 | SHAFT,BALANCER NO.1 | Oil pump (JB424W) |
| 12240-78K00-000 | SHAFT,BALANCER NO.2 | Oil pump (JB424W) |
| 16100-78K00-000 | Pump assy,oil | Oil pump (JB424W) |
| 16100-78K01-000 | PUMP ASSY,OIL | Oil pump (JB424W) |
| 16113-78K00-000 | SPROCKET,OIL PUMP | Oil pump (JB424W) |
| 16114-85FA2-000 | PIN,OIL PUMP CASE | Oil pump (JB424W) |
| 16160-78K00-000 | COVER,OIL PUMP SPROCKET | Oil pump (JB424W) |
| 16760-78K00-000 | CHAIN,OIL PUMP DRIVE | Oil pump (JB424W) |
| 16770-78K00-000 | Adjuster,oil pump chain | Oil pump (JB424W) |
| 16770-78K03-000 | ADJUSTER,OIL PUMP CHAIN | Oil pump (JB424W) |
