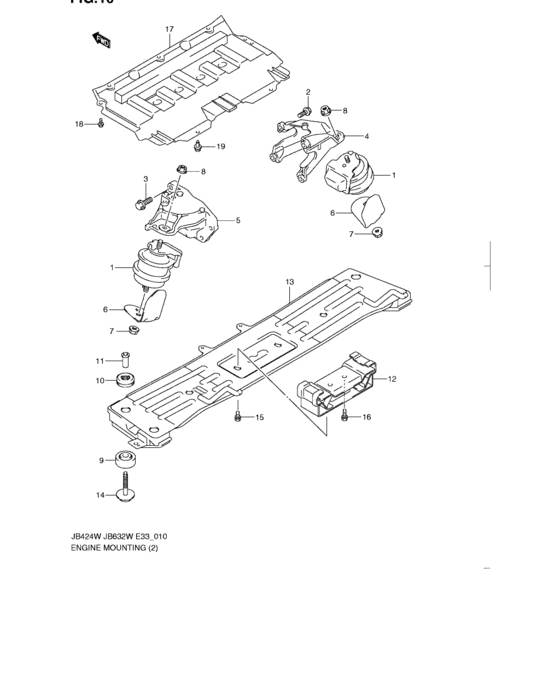

Engine mounting (JB632W)
21
| # | OEM | Part name |
|---|
| 1 |
11610-79K01-000 |
MOUNTING,ENG FR |
| 2 |
11617-79K00-000 |
BOLT,10X35 |
| 4 |
11641-79K00-000 |
BRACKET,ENG FR MTG,R |
| 5 |
11651-79K00-000 |
BRACKET,ENG FR MTG,L |
| 6 |
11681-80K50-000 |
COVER,FR MTG |
| 7 |
09159-10116-000 |
NUT |
| 8 |
08316-1010A-000 |
NUT - Nut, kick starter |
| 9 |
11684-65J00-000 |
CUSHION,MTG MEMBER LOWER |
| 9 |
11684-78K00-000 |
CUSHION,MTG MEMBER LOWER |
| 10 |
11686-65J00-000 |
CUSHION,MTG MEMBER UPPER |
| 10 |
11686-78K00-000 |
CUSHION,MTG MEMBER UPPER |
| 11 |
11687-67H00-000 |
COLLAR,MTG MEMBER |
| 12 |
11710-65J00-000 |
MOUNTING,ENG RR |
| 12 |
11710-65J10-000 |
MOUNTING,ENG RR |
| 13 |
11730-78K10-000 |
MEMBER,ENG RR MTG |
| 14 |
09116-10173-000 |
BOLT(10X72.5) |
| 15 |
01550-1016A-000 |
Bolt - Plug, oil gallery |
| 16 |
01550-1025A-000 |
Bolt - Bolt, drive gear |
| 17 |
13180-65J00-000 |
COVER,ENGINE UNDER |
| 18 |
09111-06094-000 |
BOLT(6X16.5) |
| 19 |
09409-07332-000 |
CLIP |
| OEM |
Part name |
Category |
| 01550-1016A-000 |
Bolt - Plug, oil gallery |
Engine mounting (JB632W) |
| 01550-1025A-000 |
Bolt - Bolt, drive gear |
Engine mounting (JB632W) |
| 08316-1010A-000 |
NUT - Nut, kick starter |
Engine mounting (JB632W) |
| 09111-06094-000 |
BOLT(6X16.5) |
Engine mounting (JB632W) |
| 09116-10173-000 |
BOLT(10X72.5) |
Engine mounting (JB632W) |
| 09159-10116-000 |
NUT |
Engine mounting (JB632W) |
| 09409-07332-000 |
CLIP |
Engine mounting (JB632W) |
| 11610-79K01-000 |
MOUNTING,ENG FR |
Engine mounting (JB632W) |
| 11617-79K00-000 |
BOLT,10X35 |
Engine mounting (JB632W) |
| 11641-79K00-000 |
BRACKET,ENG FR MTG,R |
Engine mounting (JB632W) |
| 11651-79K00-000 |
BRACKET,ENG FR MTG,L |
Engine mounting (JB632W) |
| 11681-80K50-000 |
COVER,FR MTG |
Engine mounting (JB632W) |
| 11684-65J00-000 |
CUSHION,MTG MEMBER LOWER |
Engine mounting (JB632W) |
| 11684-78K00-000 |
CUSHION,MTG MEMBER LOWER |
Engine mounting (JB632W) |
| 11686-65J00-000 |
CUSHION,MTG MEMBER UPPER |
Engine mounting (JB632W) |
| 11686-78K00-000 |
CUSHION,MTG MEMBER UPPER |
Engine mounting (JB632W) |
| 11687-67H00-000 |
COLLAR,MTG MEMBER |
Engine mounting (JB632W) |
| 11710-65J00-000 |
MOUNTING,ENG RR |
Engine mounting (JB632W) |
| 11710-65J10-000 |
MOUNTING,ENG RR |
Engine mounting (JB632W) |
| 11730-78K10-000 |
MEMBER,ENG RR MTG |
Engine mounting (JB632W) |
| 13180-65J00-000 |
COVER,ENGINE UNDER |
Engine mounting (JB632W) |
