| 01550-0616A-000 |
Bolt |

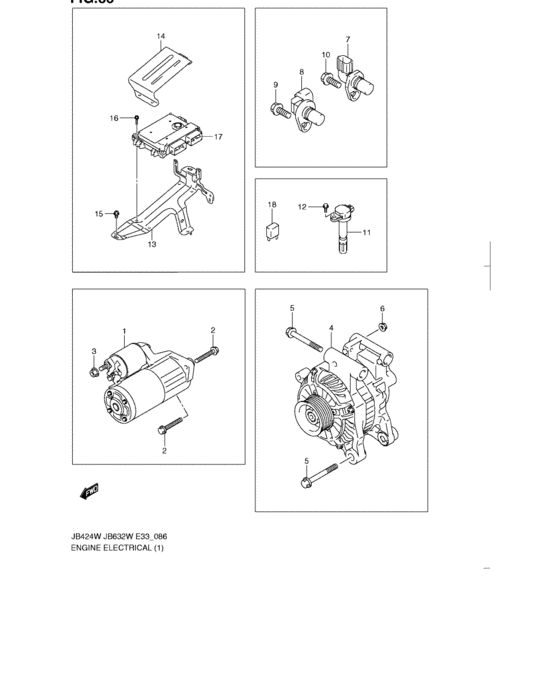

Engine electrical (JB424W) |
| 01550-1065A-000 |
Bolt |
Engine electrical (JB424W) |
| 02162-0612D-000 |
SCREW |
Engine electrical (JB424W) |
| 02162-0625A-000 |
SCREW |
Engine electrical (JB424W) |
| 08316-1008A-000 |
NUT - Nut, idle gear shaft |
Engine electrical (JB424W) |
| 09103-06283-000 |
BOLT(6X16) |
Engine electrical (JB424W) |
| 09103-10402-000 |
BOLT(10X95) |
Engine electrical (JB424W) |
| 09135-06024-000 |
BOLT(6X23) |
Engine electrical (JB424W) |
| 31100-78K00-000 |
MOTOR ASSY,STARTING |
Engine electrical (JB424W) |
| 31100-78K01-000 |
Motor Assy,starting |
Engine electrical (JB424W) |
| 31400-78K01-000 |
Generator assy |
Engine electrical (JB424W) |
| 31400-78K13-000 |
GENERATOR ASSY |
Engine electrical (JB424W) |
| 33220-50M00-000 |
SENSOR ASSY,POSITION |
Engine electrical (JB424W) |
| 33220-51K00-000 |
SENSOR ASSY,POSITION |
Engine electrical (JB424W) |
| 33220-63J00-000 |
SENSOR ASSY,POSITION |
Engine electrical (JB424W) |
| 33220-64L20-000 |
SENSOR ASSY, CRANK POSITION |
Engine electrical (JB424W) |
| 33400-51K20-000 |
Coil assy,ignition |
Engine electrical (JB424W) |
| 33400-51K40-000 |
COIL ASSY,IGNITION |
Engine electrical (JB424W) |
| 33910-78K10-000 |
BASE ASSY,EPI CONT |
Engine electrical (JB424W) |
| 33910-78K60-000 |
BASE ASSY,EPI CONT |
Engine electrical (JB424W) |
| 33924-65J12-000 |
BRACKET,EPI CONT |
Engine electrical (JB424W) |
| 33924-65J20-000 |
BRACKET,EPI CONT |
Engine electrical (JB424W) |
| 38860-76F01-000 |
RELAY ASSY - Relay, starting motor |
Engine electrical (JB424W) |
