Search › Model › JB424W
JB424W

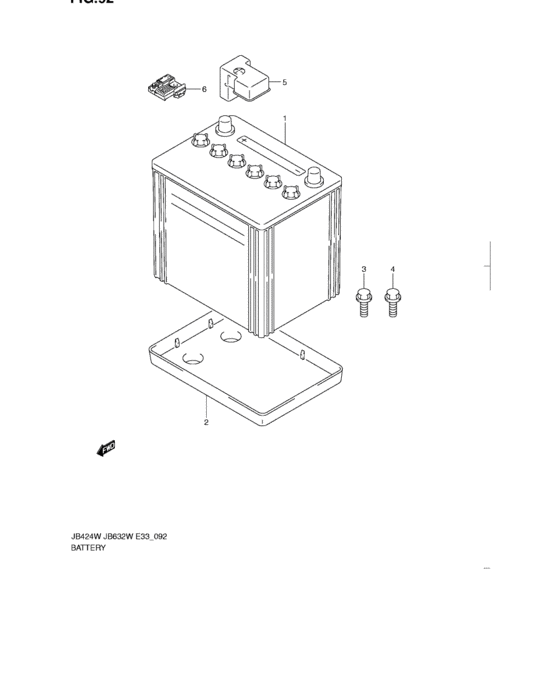

Battery (BATTERY) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 33610-65D71-000 | Battery - 12v,55ah/5hr , delphi |
| 2 | 33660-65J00-000 | TRAY,BATTERY |
| 3 | 09115-06005-000 | BOLT(6X16) |
| 4 | 01550-0816A-000 | Bolt - Bolt, rear |
| 5 | 36694-64J00-000 | COVER,BTRY TERMINAL |
| 6 | 36739-50J00-000 | FUSE,BATTERY CABLE 80A |
| 6 | 36739-66J00-000 | FUSE,BATTERY CABLE 120A |
| OEM | Part name | Category |
|---|---|---|
| 01550-0816A-000 | Bolt - Bolt, rear | Battery (BATTERY) |
| 09115-06005-000 | BOLT(6X16) | Battery (BATTERY) |
| 33610-65D71-000 | Battery - 12v,55ah/5hr , delphi | Battery (BATTERY) |
| 33660-65J00-000 | TRAY,BATTERY | Battery (BATTERY) |
| 36694-64J00-000 | COVER,BTRY TERMINAL | Battery (BATTERY) |
| 36739-50J00-000 | FUSE,BATTERY CABLE 80A | Battery (BATTERY) |
| 36739-66J00-000 | FUSE,BATTERY CABLE 120A | Battery (BATTERY) |
