| 02162-0612A-000 |
SCREW - Bolt, bracket |

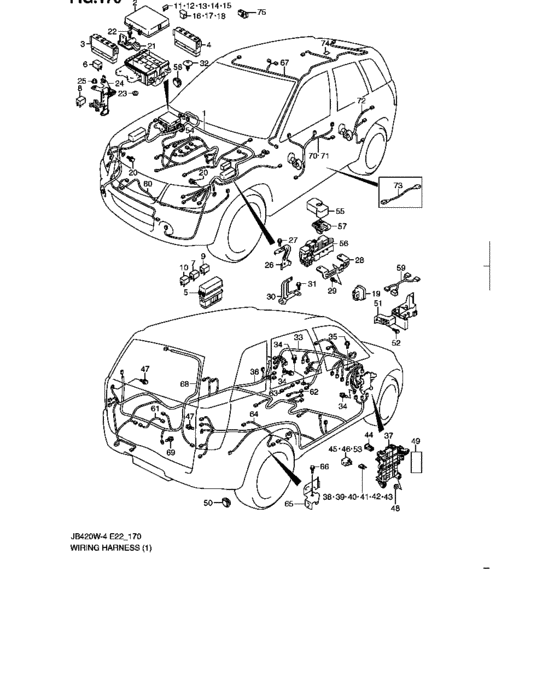

Wiring harness (TYPE 4:JB420W) |
| 08316-1006A-000 |
NUT |
Wiring harness (TYPE 4:JB420W) |
| 09115-06005-000 |
BOLT(6X16) |
Wiring harness (TYPE 4:JB420W) |
| 09122-86002-000 |
SCREW(6X12) |
Wiring harness (TYPE 4:JB420W) |
| 09159-06076-000 |
NUT |
Wiring harness (TYPE 4:JB420W) |
| 09409-06330-000 |
CLIP |
Wiring harness (TYPE 4:JB420W) |
| 09481-07504-000 |
FUSE(7.5A) |
Wiring harness (TYPE 4:JB420W) |
| 09481-10504-000 |
FUSE(10A) |
Wiring harness (TYPE 4:JB420W) |
| 09481-15504-000 |
FUSE(15A) |
Wiring harness (TYPE 4:JB420W) |
| 09481-20504-000 |
FUSE(20A) |
Wiring harness (TYPE 4:JB420W) |
| 09481-25504-000 |
FUSE(25A) |
Wiring harness (TYPE 4:JB420W) |
| 09481-30403-000 |
FUSE(30A) |
Wiring harness (TYPE 4:JB420W) |
| 09481-30504-000 |
FUSE(30A) |
Wiring harness (TYPE 4:JB420W) |
| 09481-40403-000 |
FUSE(40A) |
Wiring harness (TYPE 4:JB420W) |
| 09481-50403-000 |
FUSE(50A) |
Wiring harness (TYPE 4:JB420W) |
| 32810-65J00-000 |
SENSOR ASSY,CURRENT |
Wiring harness (TYPE 4:JB420W) |
| 36601-77K00-000 |
Harness assy,main |
Wiring harness (TYPE 4:JB420W) |
| 36601-77K01-000 |
HARNESS ASSY,MAIN |
Wiring harness (TYPE 4:JB420W) |
| 36601-77K10-000 |
Harness assy,main |
Wiring harness (TYPE 4:JB420W) |
| 36601-77K11-000 |
HARNESS ASSY,MAIN |
Wiring harness (TYPE 4:JB420W) |
| 36601-77K50-000 |
Harness assy,main |
Wiring harness (TYPE 4:JB420W) |
| 36601-77K51-000 |
HARNESS ASSY,MAIN |
Wiring harness (TYPE 4:JB420W) |
| 36601-77K70-000 |
Harness assy,main |
Wiring harness (TYPE 4:JB420W) |
| 36601-77K71-000 |
HARNESS ASSY,MAIN |
Wiring harness (TYPE 4:JB420W) |
| 36602-76K00-000 |
Harness assy,i/p |
Wiring harness (TYPE 4:JB420W) |
| 36602-76K01-000 |
HARNESS ASSY,I/P |
Wiring harness (TYPE 4:JB420W) |
| 36602-76K10-000 |
Harness assy,i/p |
Wiring harness (TYPE 4:JB420W) |
| 36602-76K11-000 |
HARNESS ASSY,I/P |
Wiring harness (TYPE 4:JB420W) |
| 36602-76K50-000 |
Harness assy,i/p |
Wiring harness (TYPE 4:JB420W) |
| 36602-76K51-000 |
HARNESS ASSY,I/P |
Wiring harness (TYPE 4:JB420W) |
| 36602-78K00-000 |
Harness assy,i/p |
Wiring harness (TYPE 4:JB420W) |
| 36602-78K01-000 |
HARNESS ASSY,I/P |
Wiring harness (TYPE 4:JB420W) |
| 36602-78K20-000 |
Harness assy,i/p |
Wiring harness (TYPE 4:JB420W) |
| 36602-78K21-000 |
HARNESS ASSY,I/P |
Wiring harness (TYPE 4:JB420W) |
| 36602-78KE0-000 |
Harness assy,i/p |
Wiring harness (TYPE 4:JB420W) |
| 36602-78KE1-000 |
HARNESS ASSY,I/P |
Wiring harness (TYPE 4:JB420W) |
| 36603-78K00-000 |
HARNESS ASSY,FLOOR |
Wiring harness (TYPE 4:JB420W) |
| 36603-78K10-000 |
Harness assy,floor |
Wiring harness (TYPE 4:JB420W) |
| 36603-78K20-000 |
Harness assy,floor |
Wiring harness (TYPE 4:JB420W) |
| 36603-78KB0-000 |
HARNESS ASSY,FLOOR |
Wiring harness (TYPE 4:JB420W) |
| 36603-78KJ0-000 |
HARNESS ASSY,FLOOR |
Wiring harness (TYPE 4:JB420W) |
| 36610-77K10-000 |
Harness assy,main |
Wiring harness (TYPE 4:JB420W) |
| 36610-77K11-000 |
Harness assy,main |
Wiring harness (TYPE 4:JB420W) |
| 36610-77K20-000 |
HARNESS ASSY,MAIN |
Wiring harness (TYPE 4:JB420W) |
| 36610-77K80-000 |
HARNESS ASSY,MAIN |
Wiring harness (TYPE 4:JB420W) |
| 36611-65J00-000 |
WIRE,CONSOLE |
Wiring harness (TYPE 4:JB420W) |
| 36611-65J40-000 |
WIRE,CONSOLE |
Wiring harness (TYPE 4:JB420W) |
| 36620-76K30-000 |
Harness assy,i/p |
Wiring harness (TYPE 4:JB420W) |
| 36620-76K31-000 |
HARNESS ASSY,I/P |
Wiring harness (TYPE 4:JB420W) |
| 36620-76K40-000 |
Harness assy,i/p |
Wiring harness (TYPE 4:JB420W) |
| 36620-76K41-000 |
HARNESS ASSY,I/P |
Wiring harness (TYPE 4:JB420W) |
| 36620-76K80-000 |
Harness assy,i/p |
Wiring harness (TYPE 4:JB420W) |
| 36620-76K81-000 |
Harness assy,i/p |
Wiring harness (TYPE 4:JB420W) |
| 36620-76KR0-000 |
Harness assy,i/p |
Wiring harness (TYPE 4:JB420W) |
| 36620-76KR1-000 |
HARNESS ASSY,I/P |
Wiring harness (TYPE 4:JB420W) |
| 36630-78K30-000 |
HARNESS ASSY,FLOOR |
Wiring harness (TYPE 4:JB420W) |
| 36630-78K50-000 |
Harness assy,floor |
Wiring harness (TYPE 4:JB420W) |
| 36630-78K60-000 |
Harness assy,floor |
Wiring harness (TYPE 4:JB420W) |
| 36630-78K70-000 |
Harness assy,floor |
Wiring harness (TYPE 4:JB420W) |
| 36630-78K80-000 |
Harness assy,floor |
Wiring harness (TYPE 4:JB420W) |
| 36630-78K90-000 |
Harness assy,floor |
Wiring harness (TYPE 4:JB420W) |
| 36648-78K00-000 |
BRACKET,FUEL WIRE |
Wiring harness (TYPE 4:JB420W) |
| 36650-77K00-000 |
Harness assy,eng |
Wiring harness (TYPE 4:JB420W) |
| 36650-77K01-000 |
Harness assy,engine |
Wiring harness (TYPE 4:JB420W) |
| 36650-77K10-000 |
Harness assy,eng |
Wiring harness (TYPE 4:JB420W) |
| 36650-77K11-000 |
HARNESS ASSY,ENGINE |
Wiring harness (TYPE 4:JB420W) |
| 36650-77K50-000 |
Harness assy,eng |
Wiring harness (TYPE 4:JB420W) |
| 36650-77K51-000 |
HARNESS ASSY,ENGINE |
Wiring harness (TYPE 4:JB420W) |
| 36650-77KA0-000 |
Harness assy,eng |
Wiring harness (TYPE 4:JB420W) |
| 36650-77KA1-000 |
HARNESS ASSY,ENGINE |
Wiring harness (TYPE 4:JB420W) |
| 36650-77KC0-000 |
Harness assy,eng |
Wiring harness (TYPE 4:JB420W) |
| 36650-77KC1-000 |
HARNESS ASSY,ENGINE |
Wiring harness (TYPE 4:JB420W) |
| 36650-77KE0-000 |
Harness assy,eng |
Wiring harness (TYPE 4:JB420W) |
| 36650-77KE1-000 |
HARNESS ASSY,ENGINE |
Wiring harness (TYPE 4:JB420W) |
| 36655-78K00-000 |
WIRE,AT&4WD CONT |
Wiring harness (TYPE 4:JB420W) |
| 36655-78KA0-000 |
WIRE,AT&4WD CONT |
Wiring harness (TYPE 4:JB420W) |
| 36658-65J10-000 |
WIRE,FR DIFF&HEIGHT SENSOR |
Wiring harness (TYPE 4:JB420W) |
| 36658-78K00-000 |
WIRE,RR HEIGHT SENSOR |
Wiring harness (TYPE 4:JB420W) |
| 36680-78K00-000 |
WIRE,BACK DR |
Wiring harness (TYPE 4:JB420W) |
| 36680-78K10-000 |
WIRE,BACK DR |
Wiring harness (TYPE 4:JB420W) |
| 36691-65J00-000 |
WIRE,A/B PASSENGER |
Wiring harness (TYPE 4:JB420W) |
| 36694-64J00-000 |
COVER,BTRY TERMINAL |
Wiring harness (TYPE 4:JB420W) |
| 36710-76K20-000 |
BOX ASSY,JUNCTION |
Wiring harness (TYPE 4:JB420W) |
| 36717-76K00-000 |
LABEL,FUSE BOX |
Wiring harness (TYPE 4:JB420W) |
| 36735-64J01-000 |
BRACKET,MAIN FUSE&RLY BOX |
Wiring harness (TYPE 4:JB420W) |
| 36735-64J11-000 |
BRACKET,STRUT R |
Wiring harness (TYPE 4:JB420W) |
| 36735-64J30-000 |
BRACKET,RDTR RLY BOX |
Wiring harness (TYPE 4:JB420W) |
| 36735-64JA1-000 |
BRACKET,MAIN FUSE&RLY BOX |
Wiring harness (TYPE 4:JB420W) |
| 36737-64J00-000 |
PULLER,FUSE |
Wiring harness (TYPE 4:JB420W) |
| 36738-64J01-000 |
COVER,FUSE&RELAY BOX |
Wiring harness (TYPE 4:JB420W) |
| 36739-50J00-000 |
FUSE,BATTERY CABLE 80A |
Wiring harness (TYPE 4:JB420W) |
| 36740-64J00-000 |
BLOCK,FUSE |
Wiring harness (TYPE 4:JB420W) |
| 36742-65J00-000 |
MODULE,POWER INTEGRATION |
Wiring harness (TYPE 4:JB420W) |
| 36742-76J00-000 |
MODULE,POWER INTEGRATION |
Wiring harness (TYPE 4:JB420W) |
| 36744-65J00-000 |
COVER,RELAY BOX |
Wiring harness (TYPE 4:JB420W) |
| 36745-64J00-000 |
BRACKET,FUSE BLOCK |
Wiring harness (TYPE 4:JB420W) |
| 36745-64J10-000 |
BRACKET,BTRY HARN |
Wiring harness (TYPE 4:JB420W) |
| 36751-78K00-000 |
WIRE,RR DR |
Wiring harness (TYPE 4:JB420W) |
| 36751-78K20-000 |
WIRE,RR DR |
Wiring harness (TYPE 4:JB420W) |
| 36756-78K00-000 |
WIRE,FR DR DRVR |
Wiring harness (TYPE 4:JB420W) |
| 36756-78K40-000 |
WIRE,FR DR DRVR |
Wiring harness (TYPE 4:JB420W) |
| 36756-78K60-000 |
WIRE,FR DR DRVR |
Wiring harness (TYPE 4:JB420W) |
| 36756-78K70-000 |
WIRE,FR DR DRVR |
Wiring harness (TYPE 4:JB420W) |
| 36756-78KA0-000 |
WIRE,FR DR DRVR |
Wiring harness (TYPE 4:JB420W) |
| 36756-78KE0-000 |
WIRE,FR DR DRVR |
Wiring harness (TYPE 4:JB420W) |
| 36756-78KF0-000 |
WIRE,FR DR DRVR |
Wiring harness (TYPE 4:JB420W) |
| 36757-78K00-000 |
WIRE,FR DR PASS |
Wiring harness (TYPE 4:JB420W) |
| 36757-78K40-000 |
Wire comp,fr door pass |
Wiring harness (TYPE 4:JB420W) |
| 36757-78K60-000 |
WIRE,FR DR PASS |
Wiring harness (TYPE 4:JB420W) |
| 36757-78K70-000 |
WIRE,FR DR PASS |
Wiring harness (TYPE 4:JB420W) |
| 36757-78KA0-000 |
WIRE,FR DR PASS |
Wiring harness (TYPE 4:JB420W) |
| 36757-78KE0-000 |
WIRE,FR DR PASS |
Wiring harness (TYPE 4:JB420W) |
| 36757-78KF0-000 |
WIRE,FR DR PASS |
Wiring harness (TYPE 4:JB420W) |
| 36820-78K00-000 |
WIRE,ROOF |
Wiring harness (TYPE 4:JB420W) |
| 36820-78K10-000 |
WIRE,ROOF |
Wiring harness (TYPE 4:JB420W) |
| 36820-78K40-000 |
WIRE,ROOF |
Wiring harness (TYPE 4:JB420W) |
| 36820-78K50-000 |
WIRE,ROOF |
Wiring harness (TYPE 4:JB420W) |
| 36840-78K00-000 |
WIRE,FUEL |
Wiring harness (TYPE 4:JB420W) |
| 36930-66J00-000 |
COVER,HARNESS |
Wiring harness (TYPE 4:JB420W) |
| 38860-76F01-000 |
RELAY ASSY - Relay, starting motor |
Wiring harness (TYPE 4:JB420W) |
| 38860-78F00-000 |
RELAY ASSY |
Wiring harness (TYPE 4:JB420W) |
| 72999-67H00-000 |
CAP,OD:40 |
Wiring harness (TYPE 4:JB420W) |
| 74145-65D00-000 |
RELAY ASSY |
Wiring harness (TYPE 4:JB420W) |
| 74156-64J00-000 |
WIRE,A/C PANEL |
Wiring harness (TYPE 4:JB420W) |
| 74156-64J10-000 |
WIRE,HVAC |
Wiring harness (TYPE 4:JB420W) |
