Search › Model › JB420W
JB420W

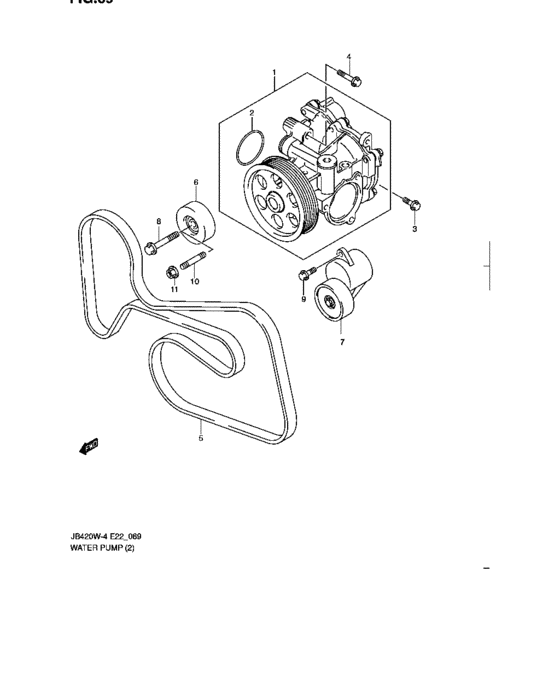

Water pump (JB424W) 12
| # | OEM | Part name |
|---|---|---|
| 1 | 17400-78891-000 | Pump set, water |
| 1 | 17400-78893-000 | PUMP SET,WATER |
| 1 | 17400-78894-000 | PUMP SET,WATER |
| 2 | 17611-65J00-000 | O-RING,WATER PUMP |
| 3 | 01550-0825A-000 | Bolt |
| 4 | 01550-0850A-000 | Bolt |
| 5 | 17521-54L31-000 | BELT,WATER PUMP 6PK2045 |
| 6 | 17530-78K01-000 | PULLEY,GEN BELT IDLER |
| 7 | 17540-54L00-000 | TENSIONER ASSY,GEN BELT |
| 8 | 09103-10420-000 | BOLT(10X65) |
| 10 | 09108-10141-000 | BOLT,STUD |
| 11 | 09159-10046-XC0 | NUT |
| OEM | Part name | Category |
|---|---|---|
| 01550-0825A-000 | Bolt | Water pump (JB424W) |
| 01550-0850A-000 | Bolt | Water pump (JB424W) |
| 09103-10420-000 | BOLT(10X65) | Water pump (JB424W) |
| 09108-10141-000 | BOLT,STUD | Water pump (JB424W) |
| 09159-10046-XC0 | NUT | Water pump (JB424W) |
| 17400-78891-000 | Pump set, water | Water pump (JB424W) |
| 17400-78893-000 | PUMP SET,WATER | Water pump (JB424W) |
| 17400-78894-000 | PUMP SET,WATER | Water pump (JB424W) |
| 17521-54L31-000 | BELT,WATER PUMP 6PK2045 | Water pump (JB424W) |
| 17530-78K01-000 | PULLEY,GEN BELT IDLER | Water pump (JB424W) |
| 17540-54L00-000 | TENSIONER ASSY,GEN BELT | Water pump (JB424W) |
| 17611-65J00-000 | O-RING,WATER PUMP | Water pump (JB424W) |
