Search › Model › JB420W
JB420W

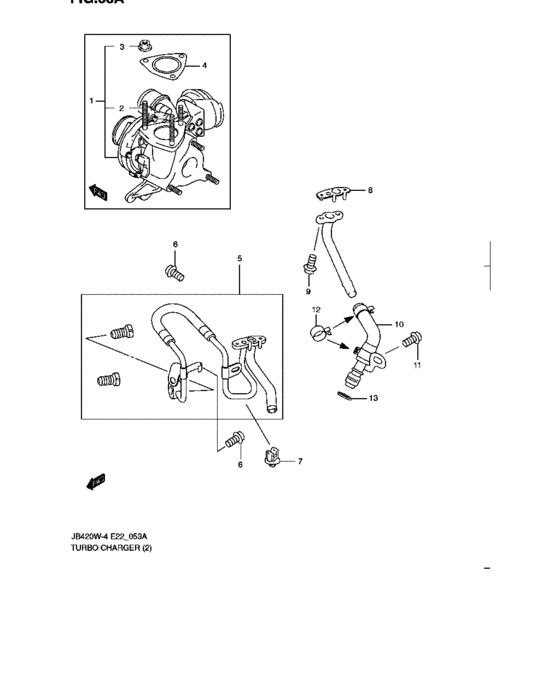

Turbo charger (JB419WD:EURO 5) 13
| # | OEM | Part name |
|---|---|---|
| 1 | 13900-80KA0-000 | Charger assy, turbo |
| 2 | 13917-80KA0-000 | Stud bolt set |
| 3 | 13918-67JG1-000 | NUT |
| 4 | 13919-80KA0-000 | Gasket |
| 5 | 13930-80KA0-000 | Tube set, feed |
| 6 | 13943-80KA0-000 | Bolt - 6x20 |
| 7 | 13933-80KA0-000 | Clip |
| 8 | 13936-80KA0-000 | Gasket |
| 9 | 13924-67JG0-000 | Bolt - 6x15 |
| 10 | 19935-80KA0-000 | Tube, turbo oil |
| 11 | 19934-80KA0-000 | Bolt - 10x25 |
| 12 | 13937-80KA0-000 | Clip |
| 13 | 13938-80KA0-000 | O ring |
| OEM | Part name | Category |
|---|---|---|
| 13900-80KA0-000 | Charger assy, turbo | Turbo charger (JB419WD:EURO 5) |
| 13917-80KA0-000 | Stud bolt set | Turbo charger (JB419WD:EURO 5) |
| 13918-67JG1-000 | NUT | Turbo charger (JB419WD:EURO 5) |
| 13919-80KA0-000 | Gasket | Turbo charger (JB419WD:EURO 5) |
| 13924-67JG0-000 | Bolt - 6x15 | Turbo charger (JB419WD:EURO 5) |
| 13930-80KA0-000 | Tube set, feed | Turbo charger (JB419WD:EURO 5) |
| 13933-80KA0-000 | Clip | Turbo charger (JB419WD:EURO 5) |
| 13936-80KA0-000 | Gasket | Turbo charger (JB419WD:EURO 5) |
| 13937-80KA0-000 | Clip | Turbo charger (JB419WD:EURO 5) |
| 13938-80KA0-000 | O ring | Turbo charger (JB419WD:EURO 5) |
| 13943-80KA0-000 | Bolt - 6x20 | Turbo charger (JB419WD:EURO 5) |
| 19934-80KA0-000 | Bolt - 10x25 | Turbo charger (JB419WD:EURO 5) |
| 19935-80KA0-000 | Tube, turbo oil | Turbo charger (JB419WD:EURO 5) |
