JB420W

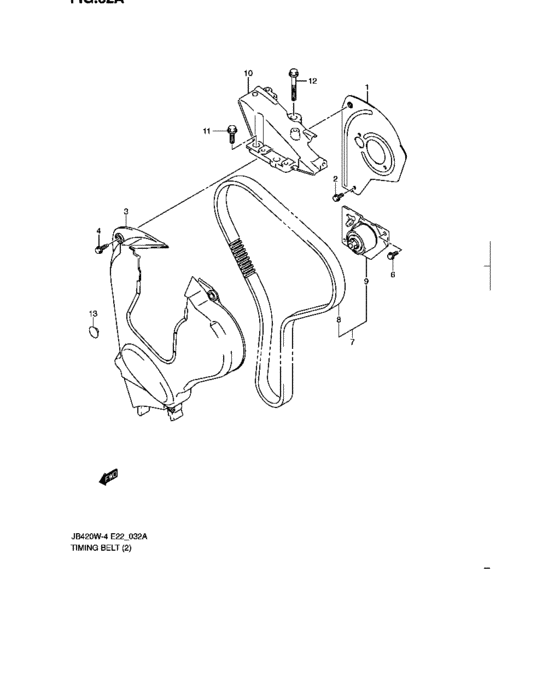

Timing belt (JB419WD:EURO 5) 12
| # | OEM | Part name |
|---|---|---|
| 1 | 11361-80KA0-000 | Cover, timing belt |
| 2 | 19914-67JG1-000 | BOLT,6X14 |
| 3 | 11391-80KA0-000 | Housing, cover |
| 4 | 18528-84A51-000 | BOLT,6X23 |
| 5 | 11371-67JG0-000 | COVER |
| 7 | 12760-80KA0-000 | Belt set, timing |
| 8 | 12761-80KA0-000 | Belt, timing |
| 9 | 12811-80KA0-000 | Tensioner, roller |
| 10 | 11391-80K50-000 | COVER,TIMING BELT OUTSIDE |
| 11 | 11617-67J00-000 | BOLT,TIMING BELT COVER |
| 12 | 09103-10304-000 | BOLT(10X75) |
| 13 | 09409-10305-000 | CLIP |
| OEM | Part name | Category |
|---|---|---|
| 09103-10304-000 | BOLT(10X75) | Timing belt (JB419WD:EURO 5) |
| 09409-10305-000 | CLIP | Timing belt (JB419WD:EURO 5) |
| 11361-80KA0-000 | Cover, timing belt | Timing belt (JB419WD:EURO 5) |
| 11371-67JG0-000 | COVER | Timing belt (JB419WD:EURO 5) |
| 11391-80K50-000 | COVER,TIMING BELT OUTSIDE | Timing belt (JB419WD:EURO 5) |
| 11391-80KA0-000 | Housing, cover | Timing belt (JB419WD:EURO 5) |
| 11617-67J00-000 | BOLT,TIMING BELT COVER | Timing belt (JB419WD:EURO 5) |
| 12760-80KA0-000 | Belt set, timing | Timing belt (JB419WD:EURO 5) |
| 12761-80KA0-000 | Belt, timing | Timing belt (JB419WD:EURO 5) |
| 12811-80KA0-000 | Tensioner, roller | Timing belt (JB419WD:EURO 5) |
| 18528-84A51-000 | BOLT,6X23 | Timing belt (JB419WD:EURO 5) |
| 19914-67JG1-000 | BOLT,6X14 | Timing belt (JB419WD:EURO 5) |
