JB420W

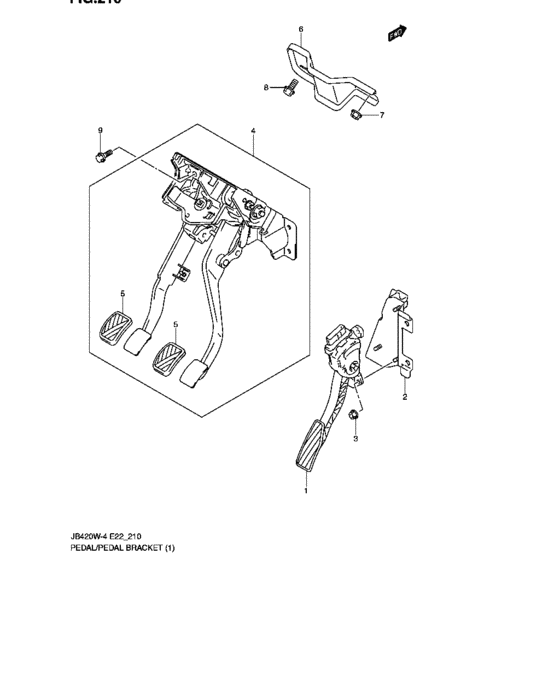

Pedal/pedal bracket (LHD:MT) 11
| # | OEM | Part name |
|---|---|---|
| 1 | 15900-65J02-000 | Pedal assy,accelerator |
| 1 | 15900-65J10-000 | PEDAL ASSY,ACCELERATOR |
| 2 | 49510-65J50-000 | BRACKET,ACCELERATOR PEDAL |
| 3 | 09159-06076-000 | NUT |
| 4 | 49600-76K50-000 | PEDAL ASSY,BRAKE&CLUTCH |
| 5 | 49751-58J00-000 | PAD,PEDAL |
| 5 | 49751-58J20-000 | PAD,PEDAL |
| 6 | 49841-65J00-000 | BRACKET,COLUMN SUPPORT |
| 7 | 09159-08083-000 | NUT |
| 8 | 01550-0812A-000 | Bolt |
| 9 | 01550-0816A-000 | Bolt - Bolt, rear |
| OEM | Part name | Category |
|---|---|---|
| 01550-0812A-000 | Bolt | Pedal/pedal bracket (LHD:MT) |
| 01550-0816A-000 | Bolt - Bolt, rear | Pedal/pedal bracket (LHD:MT) |
| 09159-06076-000 | NUT | Pedal/pedal bracket (LHD:MT) |
| 09159-08083-000 | NUT | Pedal/pedal bracket (LHD:MT) |
| 15900-65J02-000 | Pedal assy,accelerator | Pedal/pedal bracket (LHD:MT) |
| 15900-65J10-000 | PEDAL ASSY,ACCELERATOR | Pedal/pedal bracket (LHD:MT) |
| 49510-65J50-000 | BRACKET,ACCELERATOR PEDAL | Pedal/pedal bracket (LHD:MT) |
| 49600-76K50-000 | PEDAL ASSY,BRAKE&CLUTCH | Pedal/pedal bracket (LHD:MT) |
| 49751-58J00-000 | PAD,PEDAL | Pedal/pedal bracket (LHD:MT) |
| 49751-58J20-000 | PAD,PEDAL | Pedal/pedal bracket (LHD:MT) |
| 49841-65J00-000 | BRACKET,COLUMN SUPPORT | Pedal/pedal bracket (LHD:MT) |
