Search › Model › JB420W
JB420W

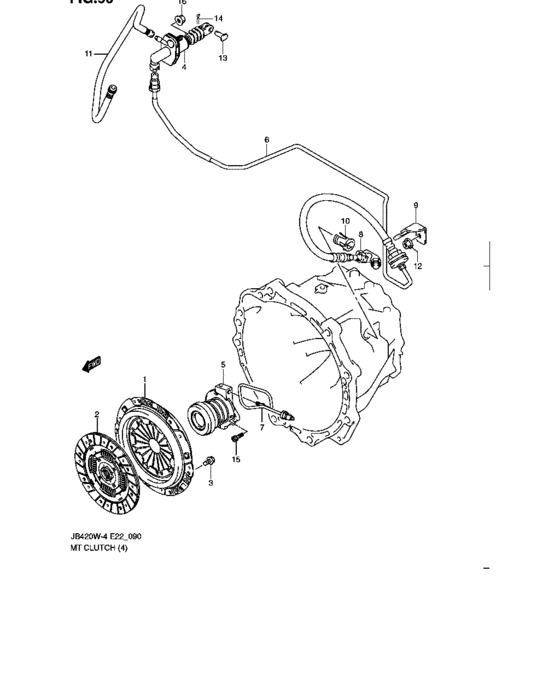

Mt clutch (MT:JB424W:RHD) 18
| # | OEM | Part name |
|---|---|---|
| 1 | 22100-78K00-000 | COVER ASSY,CLUTCH |
| 2 | 22400-78K00-000 | Disc comp,clutch |
| 2 | 22400-78K01-000 | DISC,CLUTCH |
| 3 | 09117-08096-000 | BOLT(8X16) |
| 4 | 23810-64J00-000 | Cylinder assy,clutch master |
| 4 | 23810-64J21-000 | CYLINDER ASSY,CLUTCH MASTER |
| 5 | 23820-64J00-000 | CYLINDER ASSY,CLUTCH OPERATING |
| 6 | 23830-64J30-000 | PIPE,CLUTCH OIL NO.1 |
| 7 | 23830-65J60-000 | PIPE,CLUTCH OIL NO.2 |
| 8 | 23856-64JA0-000 | JOINT ASSY,CLUTCH PIPE |
| 9 | 23871-64J00-000 | BRACKET,CLUTCH OIL HOSE |
| 10 | 23874-64J00-000 | SLEEVE,CLUTCH PIPE JOINT |
| 11 | 23881-64J20-000 | HOSE,CLUTCH RESERVOIR |
| 12 | 09159-08127-000 | NUT |
| 13 | 09200-10021-000 | PIN |
| 14 | 09385-10006-000 | PIN,SNAP |
| 15 | 07130-0620A-000 | Bolt |
| 16 | 08316-1006A-000 | NUT |
| OEM | Part name | Category |
|---|---|---|
| 07130-0620A-000 | Bolt | Mt clutch (MT:JB424W:RHD) |
| 08316-1006A-000 | NUT | Mt clutch (MT:JB424W:RHD) |
| 09117-08096-000 | BOLT(8X16) | Mt clutch (MT:JB424W:RHD) |
| 09159-08127-000 | NUT | Mt clutch (MT:JB424W:RHD) |
| 09200-10021-000 | PIN | Mt clutch (MT:JB424W:RHD) |
| 09385-10006-000 | PIN,SNAP | Mt clutch (MT:JB424W:RHD) |
| 22100-78K00-000 | COVER ASSY,CLUTCH | Mt clutch (MT:JB424W:RHD) |
| 22400-78K00-000 | Disc comp,clutch | Mt clutch (MT:JB424W:RHD) |
| 22400-78K01-000 | DISC,CLUTCH | Mt clutch (MT:JB424W:RHD) |
| 23810-64J00-000 | Cylinder assy,clutch master | Mt clutch (MT:JB424W:RHD) |
| 23810-64J21-000 | CYLINDER ASSY,CLUTCH MASTER | Mt clutch (MT:JB424W:RHD) |
| 23820-64J00-000 | CYLINDER ASSY,CLUTCH OPERATING | Mt clutch (MT:JB424W:RHD) |
| 23830-64J30-000 | PIPE,CLUTCH OIL NO.1 | Mt clutch (MT:JB424W:RHD) |
| 23830-65J60-000 | PIPE,CLUTCH OIL NO.2 | Mt clutch (MT:JB424W:RHD) |
| 23856-64JA0-000 | JOINT ASSY,CLUTCH PIPE | Mt clutch (MT:JB424W:RHD) |
| 23871-64J00-000 | BRACKET,CLUTCH OIL HOSE | Mt clutch (MT:JB424W:RHD) |
| 23874-64J00-000 | SLEEVE,CLUTCH PIPE JOINT | Mt clutch (MT:JB424W:RHD) |
| 23881-64J20-000 | HOSE,CLUTCH RESERVOIR | Mt clutch (MT:JB424W:RHD) |
