JB420W

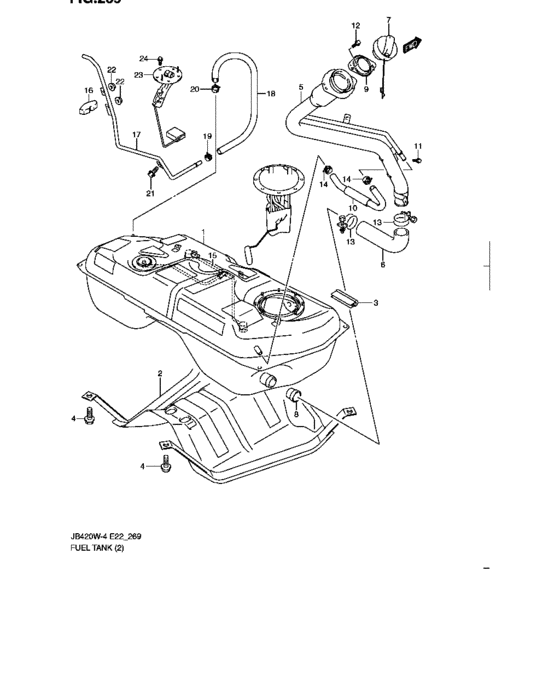

Fuel tank (JB419WD) 24
| # | OEM | Part name |
|---|---|---|
| 1 | 89101-80810-000 | TANK ASSY,FUEL |
| 2 | 89300-77K00-000 | PROTECTOR,FUEL |
| 3 | 89445-60G00-000 | PROTECTOR,TANK FLANGE |
| 4 | 09118-10073-000 | BOLT(10X30) |
| 5 | 89201-65J11-000 | NECK ASSY,FUEL FILLER |
| 6 | 89241-65J00-000 | HOSE,FUEL TANK FILLER |
| 7 | 89260-77K01-000 | CAP ASSY,FUEL FILLER |
| 8 | 89270-75F00-000 | VALVE,FUEL TANK INLET |
| 9 | 89285-58J00-000 | PACKING,FUEL FILLER |
| 10 | 89290-65J00-000 | HOSE,FUEL TANK BREATHER |
| 11 | 09103-06265-000 | BOLT(6X12) |
| 12 | 09116-05014-000 | BOLT(5X20) |
| 13 | 09400-45411-000 | CLAMP |
| 14 | 09401-16403-000 | CLIP - Clip, 2nd air hose no.2 |
| 15 | 89401-65J00-000 | VALVE ASSY,FUEL EVAP |
| 16 | 18568-65J20-000 | PACKING,EVAP SUCTION PIPE |
| 17 | 89420-67J00-000 | PIPE,AIR SUCTION |
| 18 | 89442-67J00-000 | HOSE,EVAP |
| 19 | 09401-11415-000 | CLIP |
| 20 | 09401-12404-000 | CLIP |
| 21 | 01550-0816A-000 | Bolt - Bolt, rear |
| 22 | 09159-06076-000 | NUT |
| 23 | 34810-65J00-000 | GAUGE ASSY,FUEL LEVEL |
| 24 | 09136-05045-000 | SCREW(5X10) |
| OEM | Part name | Category |
|---|---|---|
| 01550-0816A-000 | Bolt - Bolt, rear | Fuel tank (JB419WD) |
| 09103-06265-000 | BOLT(6X12) | Fuel tank (JB419WD) |
| 09116-05014-000 | BOLT(5X20) | Fuel tank (JB419WD) |
| 09118-10073-000 | BOLT(10X30) | Fuel tank (JB419WD) |
| 09136-05045-000 | SCREW(5X10) | Fuel tank (JB419WD) |
| 09159-06076-000 | NUT | Fuel tank (JB419WD) |
| 09400-45411-000 | CLAMP | Fuel tank (JB419WD) |
| 09401-11415-000 | CLIP | Fuel tank (JB419WD) |
| 09401-12404-000 | CLIP | Fuel tank (JB419WD) |
| 09401-16403-000 | CLIP - Clip, 2nd air hose no.2 | Fuel tank (JB419WD) |
| 18568-65J20-000 | PACKING,EVAP SUCTION PIPE | Fuel tank (JB419WD) |
| 34810-65J00-000 | GAUGE ASSY,FUEL LEVEL | Fuel tank (JB419WD) |
| 89101-80810-000 | TANK ASSY,FUEL | Fuel tank (JB419WD) |
| 89201-65J11-000 | NECK ASSY,FUEL FILLER | Fuel tank (JB419WD) |
| 89241-65J00-000 | HOSE,FUEL TANK FILLER | Fuel tank (JB419WD) |
| 89260-77K01-000 | CAP ASSY,FUEL FILLER | Fuel tank (JB419WD) |
| 89270-75F00-000 | VALVE,FUEL TANK INLET | Fuel tank (JB419WD) |
| 89285-58J00-000 | PACKING,FUEL FILLER | Fuel tank (JB419WD) |
| 89290-65J00-000 | HOSE,FUEL TANK BREATHER | Fuel tank (JB419WD) |
| 89300-77K00-000 | PROTECTOR,FUEL | Fuel tank (JB419WD) |
| 89401-65J00-000 | VALVE ASSY,FUEL EVAP | Fuel tank (JB419WD) |
| 89420-67J00-000 | PIPE,AIR SUCTION | Fuel tank (JB419WD) |
| 89442-67J00-000 | HOSE,EVAP | Fuel tank (JB419WD) |
| 89445-60G00-000 | PROTECTOR,TANK FLANGE | Fuel tank (JB419WD) |
