Search › Model › JB420W
JB420W

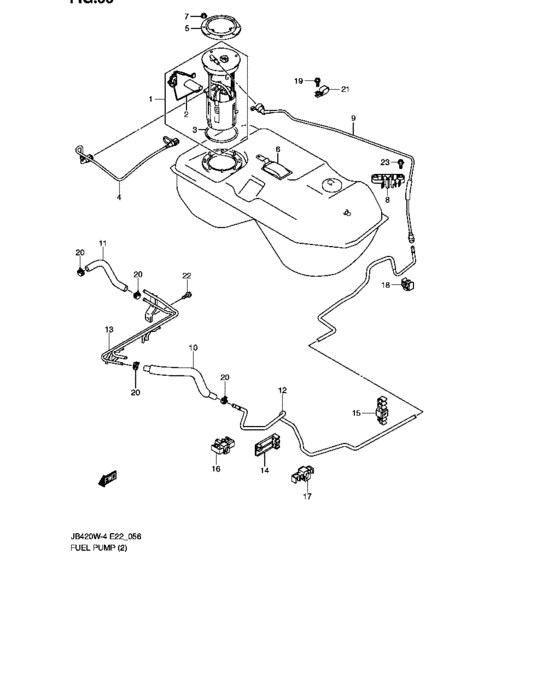

Fuel Pump (JB424W) 27
| # | OEM | Part name |
|---|---|---|
| 1 | 15100-78880-000 | Pump set,fuel |
| 1 | 15100-788A1-000 | PUMP SET,FUEL |
| 1 | 15112-65J00-000 | PIPE,FUEL SUCTION |
| 1 | 15814-78K20-000 | PIPE,FUEL FEED PUMP TO PIPE |
| 2 | 34810-78K00-000 | GAUGE ASSY,FUEL LEVEL |
| 2 | 15101-78821-000 | GAUGE ASSY,FUEL LEVEL |
| 3 | 15111-80J00-000 | GASKET,FUEL PUMP |
| 4 | 15112-78K00-000 | PIPE,FUEL SUCTION |
| 5 | 15121-61J00-000 | PLATE,FUEL PUMP |
| 6 | 15195-65J00-000 | FILTER,FUEL SUCTION |
| 7 | 09159-06077-000 | NUT |
| 8 | 15813-65J00-000 | CLAMP,FUEL PIPE |
| 9 | 15814-78K00-000 | PIPE,FUEL FEED PUMP TO PIPE |
| 10 | 15817-78K00-000 | HOSE,FUEL,BODY TO ENG |
| 11 | 15818-78K00-000 | HOSE,FUEL,ENG SIDE |
| 12 | 15821-78K00-000 | PIPE,FUEL |
| 13 | 15840-78K00-000 | PIPE,FUEL ENG SIDE |
| 14 | 15875-65J00-000 | COVER,FUEL PIPE |
| 15 | 15892-65J00-000 | CLAMP,FUEL PIPE |
| 16 | 15893-78K00-000 | CLAMP,FUEL PIPE |
| 17 | 15894-65J00-000 | CLAMP,FUEL PIPE |
| 18 | 15895-78K00-000 | CLAMP,FUEL PIPE |
| 19 | 09115-06005-000 | BOLT(6X16) |
| 20 | 09401-11420-000 | CLIP |
| 21 | 09403-13410-000 | CLAMP |
| 22 | 01560-0612A-000 | Bolt |
| 23 | 02162-0610A-000 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 01560-0612A-000 | Bolt | Fuel Pump (JB424W) |
| 02162-0610A-000 | SCREW | Fuel Pump (JB424W) |
| 09115-06005-000 | BOLT(6X16) | Fuel Pump (JB424W) |
| 09159-06077-000 | NUT | Fuel Pump (JB424W) |
| 09401-11420-000 | CLIP | Fuel Pump (JB424W) |
| 09403-13410-000 | CLAMP | Fuel Pump (JB424W) |
| 15100-78880-000 | Pump set,fuel | Fuel Pump (JB424W) |
| 15100-788A1-000 | PUMP SET,FUEL | Fuel Pump (JB424W) |
| 15101-78821-000 | GAUGE ASSY,FUEL LEVEL | Fuel Pump (JB424W) |
| 15111-80J00-000 | GASKET,FUEL PUMP | Fuel Pump (JB424W) |
| 15112-65J00-000 | PIPE,FUEL SUCTION | Fuel Pump (JB424W) |
| 15112-78K00-000 | PIPE,FUEL SUCTION | Fuel Pump (JB424W) |
| 15121-61J00-000 | PLATE,FUEL PUMP | Fuel Pump (JB424W) |
| 15195-65J00-000 | FILTER,FUEL SUCTION | Fuel Pump (JB424W) |
| 15813-65J00-000 | CLAMP,FUEL PIPE | Fuel Pump (JB424W) |
| 15814-78K00-000 | PIPE,FUEL FEED PUMP TO PIPE | Fuel Pump (JB424W) |
| 15814-78K20-000 | PIPE,FUEL FEED PUMP TO PIPE | Fuel Pump (JB424W) |
| 15817-78K00-000 | HOSE,FUEL,BODY TO ENG | Fuel Pump (JB424W) |
| 15818-78K00-000 | HOSE,FUEL,ENG SIDE | Fuel Pump (JB424W) |
| 15821-78K00-000 | PIPE,FUEL | Fuel Pump (JB424W) |
| 15840-78K00-000 | PIPE,FUEL ENG SIDE | Fuel Pump (JB424W) |
| 15875-65J00-000 | COVER,FUEL PIPE | Fuel Pump (JB424W) |
| 15892-65J00-000 | CLAMP,FUEL PIPE | Fuel Pump (JB424W) |
| 15893-78K00-000 | CLAMP,FUEL PIPE | Fuel Pump (JB424W) |
| 15894-65J00-000 | CLAMP,FUEL PIPE | Fuel Pump (JB424W) |
| 15895-78K00-000 | CLAMP,FUEL PIPE | Fuel Pump (JB424W) |
| 34810-78K00-000 | GAUGE ASSY,FUEL LEVEL | Fuel Pump (JB424W) |
