JB420W

Suzuki GRAND-VITARA · 5,552 parts · 291 categories
JB420W ×

← Back to categories

5,552 items

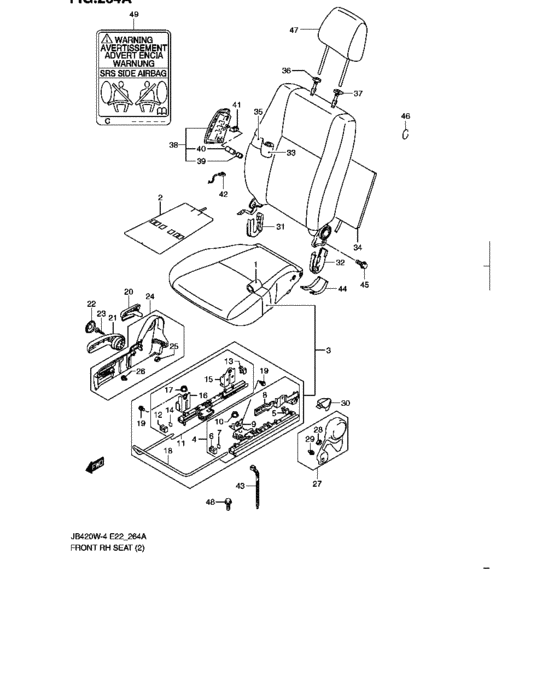

Front rh seat (RHD) 98
#OEMPart name
1 85180-65J70-FCD Trim comp,fr cush,r
1 85180-65J71-JVB TRIM,FR CUSHION,R
1 85180-65J72-JVB Trim,fr Cushion,r
1 85180-65J70-FCF Trim comp,fr cush,r
1 85180-65J71-JVE TRIM,FR CUSHION,R
1 85180-65J70-BFK Trim,fr cushion,r
1 85180-76K70-BFK TRIM,FR CUSHION,R
1 85180-65J70-BFN Trim,fr cushion,r
1 85180-65J71-BFN TRIM,FR CUSHION,R
2 85170-63J00-000 Heater,fr cush
2 85170-63J02-000 HEATER,FR CUSH
3 85105-65J61-000 CUSHION S/ASSY,FR,R
4 86601-63J70-000 ADJUSTER S/ASSY,FR INSIDE,R
5 86652-63J00-000 Cover,lower rail end
5 86652-63J01-000 CAP,FR ADJUSTER LWR
6 86653-63J00-000 Cover,lower rail end
6 86653-63J01-000 CAP,FR ADJUSTER LWR
7 86654-63J00-000 COVER,UPR RAIL END
8 86712-63J70-000 RISER,RR INS,R
9 86721-63J70-000 RISER,FR INS,R
10 08316-1010A-000 NUT - Nut, kick starter
11 86603-65J60-000 ADJUSTER S/ASSY,FR OUTSIDE,R
15 86641-65J60-000 RISER,RR OUT
16 86710-65J60-000 RISER,FR OUT,R
18 86691-65J00-000 HANDLE,FR SEAT ADJ
19 86717-65J00-000 BOLT,RISER
20 85211-65J00-5PK Knob,rclng,r
20 85211-65JA0-5PK KNOB,RCLNG,R
20 85211-65J00-R8H Knob,rclng,r
20 85211-65JA0-R8H KNOB,RCLNG,R
21 85213-65J00-5PK LEVER,SEAT LIFTER
21 85213-65J00-R8H LEVER,SEAT LIFTER
22 85214-63J20-5PK CAP,LIFTER LEVER
22 85214-63J20-R8H CAP,LIFTER LEVER
23 09132-05043-000 SCREW(5X10)
24 85220-65J50-5PK COVER,RCLNG OUTSIDE,R
24 85220-65J50-R8H COVER,RCLNG OUTSIDE,R
25 09409-10308-000 CLIP
26 09409-10313-000 CLIP
27 85240-65J00-5PK COVER,FR RCLNG INSIDE,R
27 85240-65J00-R8H COVER,FR RCLNG INSIDE,R
30 85243-63J70-000 COVER,RR RISER INSIDE,R
31 85222-63J00-5PK COVER,FR BACK FRAME,R
31 85222-63J00-R8H COVER,FR BACK FRAME,R
32 85242-63J00-5PK COVER,FR BACK FRAME,L
32 85242-63J00-R8H COVER,FR BACK FRAME,L
33 85380-63J60-FCD Trim comp,fr back
33 85380-63J60-JVB TRIM,FR BACK
33 85380-63J60-FCF Trim comp,fr back
33 85380-63J60-JVE TRIM,FR BACK,R
33 85380-63JG0-FCD Trim comp,fr back,r
33 85380-63JG1-JVB TRIM,FR BACK,R
33 85380-63JG0-BFK Trim,front back,r
33 85380-76KG0-BFK TRIM,FR BACK,R
33 85380-63JG0-BFN Trim,front back,r
33 85380-76KG0-BFN TRIM,FR BACK,R
34 85370-63J00-000 Heater,fr back
34 85370-63J01-000 HEATER,FR BACK
35 85305-79KG0-000 BACK S/ASSY,FR,R
35 85305-79KN0-000 BACK S/ASSY,FR,R
35 85305-79KN1-000 BACK S/ASSY,FR,R
36 85341-63J10-P4Z GUIDE,HEADRESTRAINT
36 85341-63J11-P4Z GUIDE,HEADRESTRAINT
36 85341-63J12-P4Z Guide,headrestraint
36 85341-63J10-R8H GUIDE,HEADRESTRAINT
36 85341-63J11-R8H GUIDE,HEADRESTRAINT
36 85341-63J12-R8H Guide,headrestraint
37 85840-63J10-P4Z GUIDE,HEADRESTRAINT
37 85840-63J11-P4Z GUIDE COMP,HEADRESTRAINT
37 85840-63J12-P4Z Guide Comp,headrestraint
37 85840-63J10-R8H GUIDE,HEADRESTRAINT
37 85840-63J11-R8H GUIDE,HEADRESTRAINT
37 85840-63J12-R8H Guide,headrestraint
38 85350-65J00-5PK MODULE ASSY,SIDE A/B,R
38 85350-65J00-R8H MODULE ASSY,A/B,R
39 85352-65J00-000 NUT
40 85353-65J00-000 SLEEVE
41 85351-62J00-000 FASTENER,SIDE AIR BAG MTG
42 85355-62J00-000 HARNESS ASSY,SIDE AIRBAG
42 85355-77K00-000 HARNESS ASSY,SIDE AIRBAG
43 09407-14403-000 CLAMP(L:125) - Clamp, spark plug cap
44 86658-58J90-S9K TRIM,FR CUSHION RR
44 86658-58J90-S3R Trim comp,fr cush rr
44 86658-58JA0-S3R TRIM,FR CUSHION RR
45 01550-1016A-000 Bolt - Plug, oil gallery
46 09387-19001-000 RING
47 86401-65J00-ENB Headrestraint assy(black)
47 86401-65J01-JVD HEADRESTRAINT ASSY
47 86401-65J02-JVD Headrestraint Assy
47 86401-65J00-FCH Headrestraint assy
47 86401-65J00-JVG HEADRESTRAINT ASSY
47 86401-65J01-JVG HEADRESTRAINT ASSY
47 86401-65J00-T6U Headrestraint assy(black)
47 86401-76K00-T6U HEADRESTRAINT ASSY
47 86401-65J00-S1K Headrestraint assy(beige)
47 86401-76K00-S1K HEADRESTRAINT ASSY
48 09119-08097-000 BOLT(8X25)
49 85354-59JC1-000 LABEL,SIDE AIRBAG
