JB416X

Suzuki GRAND-VITARA · 4,714 parts · 260 categories

4,714 items

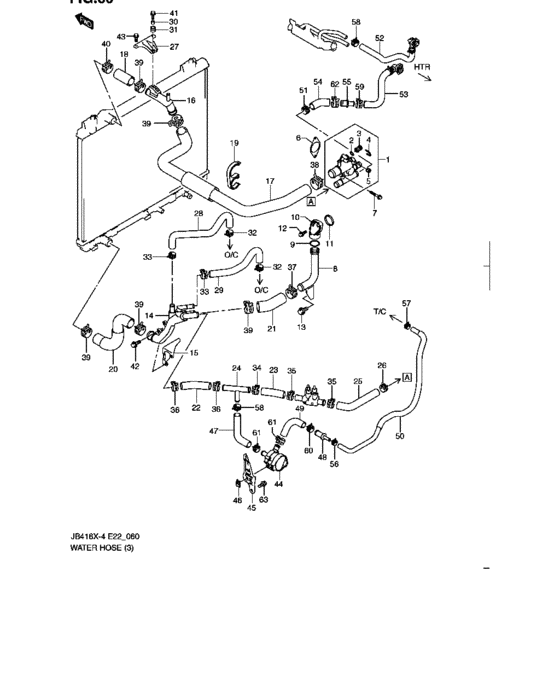

Water hose (TYPE 4:JB419XD) 60

#	OEM	Part name
1	17690-67JG1-000	BOX,WATER OUTLET
2	13661-84A00-000	GASKET,SENSOR
3	13650-67JG0-000	Sensor,water Temp
4	17694-84A00-000	CLIP,WATER TEMP SENSOR
5	17698-67JG0-000	CAP,BLEEDS
6	17695-67JG0-000	GASKET,OUTLET BOX
7	19938-67JG0-000	BOLT,M6
8	17861-67JG1-000	TUBE,WATER INLET
9	17881-84A00-000	O-RING
10	17865-67JG1-000	PIPE,WATER
11	17866-67JG0-000	GASKET,WATER PIPE
12	18528-84A51-000	BOLT,6X23
13	19921-67JG2-000	BOLT,10X16
14	17550-67J01-000	Pipe
14	17550-67J02-000	PIPE,WATER INLET
15	17555-67J00-000	BRACKET,WTR INLET PIPE
16	17580-67J01-000	PIPE,WTR OUTLET
17	17841-67J00-000	HOSE,RADIATOR INLET NO.1
18	17842-67J00-000	HOSE,RADIATOR INLET NO.2
19	17846-67J01-000	CLIP,RDTR INLET HOSE
20	17851-67J00-000	HOSE,RADIATOR OUTLET NO.1
21	17852-67J00-000	HOSE,RADIATOR OUTLET NO.2
22	17853-67J00-000	HOSE,WTR ENG OUTLET NO.1
23	17854-67J00-000	HOSE,WTR ENG OUTLET NO.2
24	17855-67J00-000	PIPE,WTR OUTLET 3WAY
25	17856-67J00-000	HOSE,WTR ENG OUTLET NO.3
26	09402-32502-000	CLAMP
27	17915-67J00-000	BRACKET,RDTR INLET HOSE
28	17971-67J01-000	HOSE,OIL COOLER INLET
29	17973-67J01-000	HOSE,OIL COOLER OUTLET
30	09180-06264-000	SPACER(6.5X9X10.5) - Spacer, rr comb
31	09320-09044-000	CUSHION
32	09401-20408-000	CLIP
33	09401-21405-000	CLIP
34	09401-24402-000	CLIP
35	09401-23405-000	CLIP
37	09401-33402-000	CLIP
38	09401-35402-000	CLAMP
39	09401-35403-000	CLIP
41	01560-0620A-000	Bolt
42	01550-0820A-000	Bolt - Bolt, funnel bracket
43	02162-0612A-000	SCREW - Bolt, bracket
44	17450-67JA0-000	PUMP,ELECTRIC
45	17455-67J00-000	BRACKET,WTR PUMP
46	17456-67J00-000	CLIP,ADDITIONAL WTR PUMP
47	17461-67J00-000	HOSE,WTR PUMP
48	17462-67J00-000	UNION,WATER PUMP HOSE
49	17463-67J00-000	HOSE,WTR PUMP OUT
50	17464-67J00-000	HOSE,TURBO OUTLET
52	17871-67J00-000	HOSE ASSY,HTR INLET
53	17872-67J00-000	HOSE ASSY,HTR OUTLET NO.1
53	17872-67J01-000	HOSE ASSY,HTR OUTLET NO.1
54	17873-67J00-000	HOSE,HEATER OUTLET NO.2
54	17873-67J01-000	HOSE,HEATER OUTLET NO.2
55	17874-67J00-000	UNION,HEATER OUTLET HOSE
56	09401-14405-000	CLIP
57	09401-16410-000	CLIP
61	09401-22405-000	CLIP
63	02162-0616A-000	SCREW
63	02162-0616B-000	SCREW - Bolt, adjust

OEM	Part name	Category
01550-0820A-000	Bolt - Bolt, funnel bracket	Water hose (TYPE 4:JB419XD)
01560-0620A-000	Bolt	Water hose (TYPE 4:JB419XD)
02162-0612A-000	SCREW - Bolt, bracket	Water hose (TYPE 4:JB419XD)
02162-0616A-000	SCREW	Water hose (TYPE 4:JB419XD)
02162-0616B-000	SCREW - Bolt, adjust	Water hose (TYPE 4:JB419XD)
09180-06264-000	SPACER(6.5X9X10.5) - Spacer, rr comb	Water hose (TYPE 4:JB419XD)
09320-09044-000	CUSHION	Water hose (TYPE 4:JB419XD)
09401-14405-000	CLIP	Water hose (TYPE 4:JB419XD)
09401-16410-000	CLIP	Water hose (TYPE 4:JB419XD)
09401-20408-000	CLIP	Water hose (TYPE 4:JB419XD)
09401-21405-000	CLIP	Water hose (TYPE 4:JB419XD)
09401-22405-000	CLIP	Water hose (TYPE 4:JB419XD)
09401-23405-000	CLIP	Water hose (TYPE 4:JB419XD)
09401-24402-000	CLIP	Water hose (TYPE 4:JB419XD)
09401-33402-000	CLIP	Water hose (TYPE 4:JB419XD)
09401-35402-000	CLAMP	Water hose (TYPE 4:JB419XD)
09401-35403-000	CLIP	Water hose (TYPE 4:JB419XD)
09402-32502-000	CLAMP	Water hose (TYPE 4:JB419XD)
13650-67JG0-000	Sensor,water Temp	Water hose (TYPE 4:JB419XD)
13661-84A00-000	GASKET,SENSOR	Water hose (TYPE 4:JB419XD)
17450-67JA0-000	PUMP,ELECTRIC	Water hose (TYPE 4:JB419XD)
17455-67J00-000	BRACKET,WTR PUMP	Water hose (TYPE 4:JB419XD)
17456-67J00-000	CLIP,ADDITIONAL WTR PUMP	Water hose (TYPE 4:JB419XD)
17461-67J00-000	HOSE,WTR PUMP	Water hose (TYPE 4:JB419XD)
17462-67J00-000	UNION,WATER PUMP HOSE	Water hose (TYPE 4:JB419XD)
17463-67J00-000	HOSE,WTR PUMP OUT	Water hose (TYPE 4:JB419XD)
17464-67J00-000	HOSE,TURBO OUTLET	Water hose (TYPE 4:JB419XD)
17550-67J01-000	Pipe	Water hose (TYPE 4:JB419XD)
17550-67J02-000	PIPE,WATER INLET	Water hose (TYPE 4:JB419XD)
17555-67J00-000	BRACKET,WTR INLET PIPE	Water hose (TYPE 4:JB419XD)
17580-67J01-000	PIPE,WTR OUTLET	Water hose (TYPE 4:JB419XD)
17690-67JG1-000	BOX,WATER OUTLET	Water hose (TYPE 4:JB419XD)
17694-84A00-000	CLIP,WATER TEMP SENSOR	Water hose (TYPE 4:JB419XD)
17695-67JG0-000	GASKET,OUTLET BOX	Water hose (TYPE 4:JB419XD)
17698-67JG0-000	CAP,BLEEDS	Water hose (TYPE 4:JB419XD)
17841-67J00-000	HOSE,RADIATOR INLET NO.1	Water hose (TYPE 4:JB419XD)
17842-67J00-000	HOSE,RADIATOR INLET NO.2	Water hose (TYPE 4:JB419XD)
17846-67J01-000	CLIP,RDTR INLET HOSE	Water hose (TYPE 4:JB419XD)
17851-67J00-000	HOSE,RADIATOR OUTLET NO.1	Water hose (TYPE 4:JB419XD)
17852-67J00-000	HOSE,RADIATOR OUTLET NO.2	Water hose (TYPE 4:JB419XD)
17853-67J00-000	HOSE,WTR ENG OUTLET NO.1	Water hose (TYPE 4:JB419XD)
17854-67J00-000	HOSE,WTR ENG OUTLET NO.2	Water hose (TYPE 4:JB419XD)
17855-67J00-000	PIPE,WTR OUTLET 3WAY	Water hose (TYPE 4:JB419XD)
17856-67J00-000	HOSE,WTR ENG OUTLET NO.3	Water hose (TYPE 4:JB419XD)
17861-67JG1-000	TUBE,WATER INLET	Water hose (TYPE 4:JB419XD)
17865-67JG1-000	PIPE,WATER	Water hose (TYPE 4:JB419XD)
17866-67JG0-000	GASKET,WATER PIPE	Water hose (TYPE 4:JB419XD)
17871-67J00-000	HOSE ASSY,HTR INLET	Water hose (TYPE 4:JB419XD)
17872-67J00-000	HOSE ASSY,HTR OUTLET NO.1	Water hose (TYPE 4:JB419XD)
17872-67J01-000	HOSE ASSY,HTR OUTLET NO.1	Water hose (TYPE 4:JB419XD)
17873-67J00-000	HOSE,HEATER OUTLET NO.2	Water hose (TYPE 4:JB419XD)
17873-67J01-000	HOSE,HEATER OUTLET NO.2	Water hose (TYPE 4:JB419XD)
17874-67J00-000	UNION,HEATER OUTLET HOSE	Water hose (TYPE 4:JB419XD)
17881-84A00-000	O-RING	Water hose (TYPE 4:JB419XD)
17915-67J00-000	BRACKET,RDTR INLET HOSE	Water hose (TYPE 4:JB419XD)
17971-67J01-000	HOSE,OIL COOLER INLET	Water hose (TYPE 4:JB419XD)
17973-67J01-000	HOSE,OIL COOLER OUTLET	Water hose (TYPE 4:JB419XD)
18528-84A51-000	BOLT,6X23	Water hose (TYPE 4:JB419XD)
19921-67JG2-000	BOLT,10X16	Water hose (TYPE 4:JB419XD)
19938-67JG0-000	BOLT,M6	Water hose (TYPE 4:JB419XD)
