JB416X

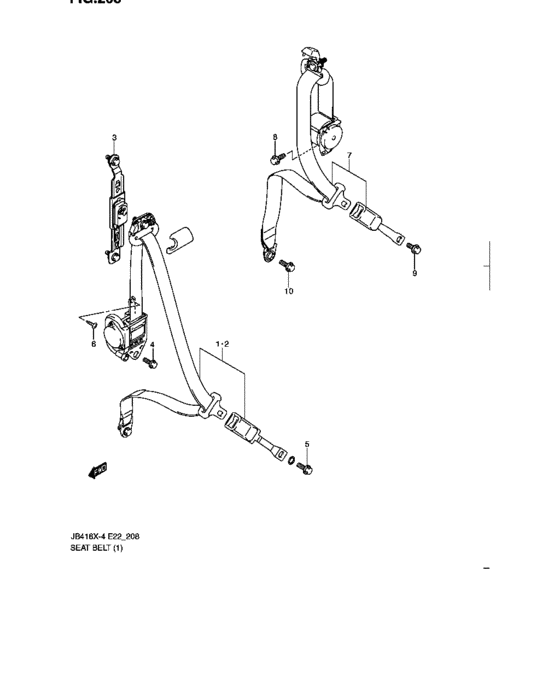

Seat belt (LHD) 13
| # | OEM | Part name |
|---|---|---|
| 1 | 84901-64J02-BHE | Belt assy,fr r |
| 1 | 84901-64J03-BHE | BELT ASSY,FR,R |
| 1 | 84901-64J04-BHE | Belt Assy,fr,r |
| 2 | 84902-64J12-BHE | Belt assy,fr l |
| 2 | 84902-64J13-BHE | BELT ASSY,FR,L |
| 2 | 84902-64J14-BHE | Belt Assy,fr,l |
| 3 | 84990-63J00-6GS | ADJUSTER ASSY,FR SHLDR |
| 4 | 09103-11001-000 | BOLT(7/16X22) - Bolt, fr belt buckle |
| 5 | 09117-11002-000 | BOLT(11X20) |
| 6 | 03141-0612A-000 | SCREW |
| 7 | 84904-64J10-BHE | BELT ASSY,RR |
| 7 | 84904-64J11-BHE | Belt Assy,rr |
| 9 | 09111-11003-000 | BOLT(11X17.5) |
| OEM | Part name | Category |
|---|---|---|
| 03141-0612A-000 | SCREW | Seat belt (LHD) |
| 09103-11001-000 | BOLT(7/16X22) - Bolt, fr belt buckle | Seat belt (LHD) |
| 09111-11003-000 | BOLT(11X17.5) | Seat belt (LHD) |
| 09117-11002-000 | BOLT(11X20) | Seat belt (LHD) |
| 84901-64J02-BHE | Belt assy,fr r | Seat belt (LHD) |
| 84901-64J03-BHE | BELT ASSY,FR,R | Seat belt (LHD) |
| 84901-64J04-BHE | Belt Assy,fr,r | Seat belt (LHD) |
| 84902-64J12-BHE | Belt assy,fr l | Seat belt (LHD) |
| 84902-64J13-BHE | BELT ASSY,FR,L | Seat belt (LHD) |
| 84902-64J14-BHE | Belt Assy,fr,l | Seat belt (LHD) |
| 84904-64J10-BHE | BELT ASSY,RR | Seat belt (LHD) |
| 84904-64J11-BHE | Belt Assy,rr | Seat belt (LHD) |
| 84990-63J00-6GS | ADJUSTER ASSY,FR SHLDR | Seat belt (LHD) |
