| 01560-1016A-000 |
Bolt |

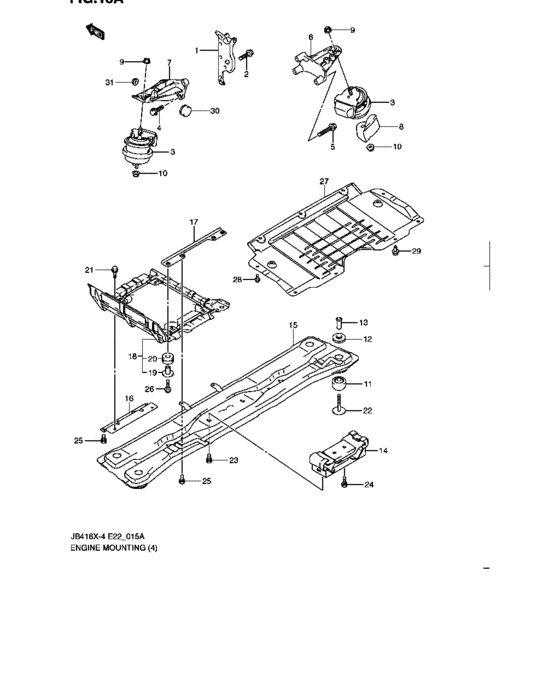

Engine mounting (TYPE 5:JB419XD) |
| 01560-1025A-000 |
Bolt |
Engine mounting (TYPE 5:JB419XD) |
| 02162-0612A-000 |
SCREW - Bolt, bracket |
Engine mounting (TYPE 5:JB419XD) |
| 02162-0620C-000 |
SCREW |
Engine mounting (TYPE 5:JB419XD) |
| 08316-1008A-000 |
NUT - Nut, idle gear shaft |
Engine mounting (TYPE 5:JB419XD) |
| 08316-1010A-000 |
NUT - Nut, kick starter |
Engine mounting (TYPE 5:JB419XD) |
| 09111-06094-000 |
BOLT(6X16.5) |
Engine mounting (TYPE 5:JB419XD) |
| 09116-10173-000 |
BOLT(10X72.5) |
Engine mounting (TYPE 5:JB419XD) |
| 09159-10116-000 |
NUT |
Engine mounting (TYPE 5:JB419XD) |
| 09180-06331-000 |
SPACER(6.2X8.4X10.9) |
Engine mounting (TYPE 5:JB419XD) |
| 09320-08077-000 |
CUSHION |
Engine mounting (TYPE 5:JB419XD) |
| 09409-07332-000 |
CLIP |
Engine mounting (TYPE 5:JB419XD) |
| 11610-80K01-000 |
MOUNTING,ENG FR |
Engine mounting (TYPE 5:JB419XD) |
| 11617-67J00-000 |
BOLT,TIMING BELT COVER |
Engine mounting (TYPE 5:JB419XD) |
| 11618-67J00-000 |
BOLT,ENG MTG,R |
Engine mounting (TYPE 5:JB419XD) |
| 11641-80K50-000 |
BRACKET,ENG FR MTG,R |
Engine mounting (TYPE 5:JB419XD) |
| 11651-80K50-000 |
BRACKET,ENG FR MTG,L |
Engine mounting (TYPE 5:JB419XD) |
| 11681-80K50-000 |
COVER,FR MTG |
Engine mounting (TYPE 5:JB419XD) |
| 11684-78K00-000 |
CUSHION,MTG MEMBER LOWER |
Engine mounting (TYPE 5:JB419XD) |
| 11686-78K00-000 |
CUSHION,MTG MEMBER UPPER |
Engine mounting (TYPE 5:JB419XD) |
| 11687-67H00-000 |
COLLAR,MTG MEMBER |
Engine mounting (TYPE 5:JB419XD) |
| 11710-65J00-000 |
MOUNTING,ENG RR |
Engine mounting (TYPE 5:JB419XD) |
| 11730-78K10-000 |
MEMBER,ENG RR MTG |
Engine mounting (TYPE 5:JB419XD) |
| 11741-65J00-000 |
BRACKET,ENG SPLASH COVER |
Engine mounting (TYPE 5:JB419XD) |
| 11741-67J00-000 |
BRACKET,ENG SPLASH COVER |
Engine mounting (TYPE 5:JB419XD) |
| 11790-67J00-000 |
COVER,ENG SPLASH |
Engine mounting (TYPE 5:JB419XD) |
| 11855-80KA0-000 |
Stay, eng cover |
Engine mounting (TYPE 5:JB419XD) |
| 13180-80K50-000 |
COVER,ENGINE UNDER |
Engine mounting (TYPE 5:JB419XD) |
| 19941-67JG0-000 |
BOLT,8X20 |
Engine mounting (TYPE 5:JB419XD) |
| 46315-80GA0-000 |
DAMPER,L MTG |
Engine mounting (TYPE 5:JB419XD) |
