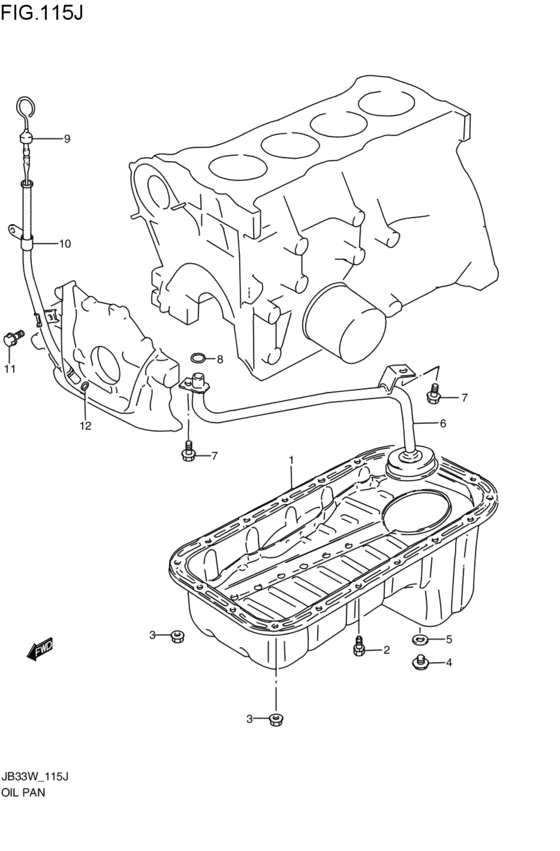

| 02162-06103-000 |
Bolt - Bolt, bracket |
oil pan (1997-12-01~) |
| 02162-0610A-000 |
SCREW |
oil pan (1997-12-01~) |
| 07120-06123-000 |
Bolt - Bolt, breather pipe |
oil pan (1997-12-01~) |
| 07120-0612B-000 |
Bolt - Plug |
oil pan (1997-12-01~) |
| 08316-10063-000 |
Nut |
oil pan (1997-12-01~) |
| 08316-1006B-000 |
NUT |
oil pan (1997-12-01~) |
| 09117-06033-000 |
BOLT(6X12) |
oil pan (1997-12-01~) |
| 09168-14015-000 |
GASKET(14X20X1.5) - Gasket, oil hose union |
oil pan (1997-12-01~) |
| 09247-14027-000 |
PLUG(14X11.5) - Plug, oil drain |
oil pan (1997-12-01~) |
| 09247-14044-000 |
DRAIN PLUG (M14x1.5) |
oil pan (1997-12-01~) |
| 09280-10016-000 |
O RING(D:1.9,ID:9.8) |
oil pan (1997-12-01~) |
| 09280-14011-000 |
O RING(D:2.5,ID:13.8) - O ring (d:2.5 id:13.8) |
oil pan (1997-12-01~) |
| 11510-83004-000 |
PAN,OIL |
oil pan (1997-12-01~) |
| 16520-83003-000 |
STRAINER,OIL PUMP |
oil pan (1997-12-01~) |
| 16910-66D00-000 |
GAUGE,OIL LEVEL |
oil pan (1997-12-01~) |
| 16930-64B02-000 |
GUIDE,OIL LEVEL GAUGE |
oil pan (1997-12-01~) |
