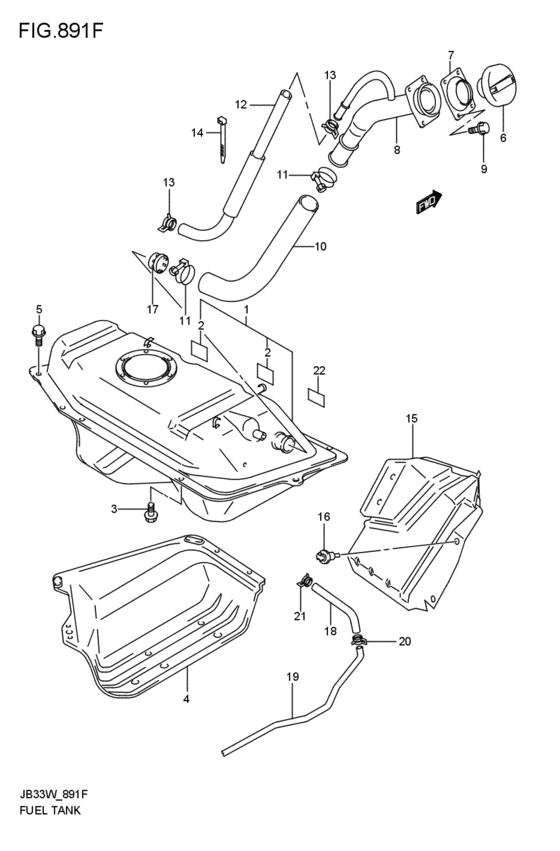

| 02162-06103-000 |
Bolt - Bolt, bracket |
fuel tank (1997-12-01~) |
| 02162-0610A-000 |
SCREW |
fuel tank (1997-12-01~) |
| 09116-05014-000 |
BOLT(5X20) |
fuel tank (1997-12-01~) |
| 09118-08151-000 |
Bolt (8x25) |
fuel tank (1997-12-01~) |
| 09118-08151-XC0 |
BOLT(8X25) |
fuel tank (1997-12-01~) |
| 09359-54112-760 |
HOSE(5.4X11.4X760) - Hose, fuel (pump to carb) (5.4x11.4x760) |
fuel tank (1997-12-01~) |
| 09400-45311-000 |
CLAMP |
fuel tank (1997-12-01~) |
| 09401-11413-000 |
CLIP |
fuel tank (1997-12-01~) |
| 09401-12404-000 |
CLIP |
fuel tank (1997-12-01~) |
| 09401-18406-000 |
CLIP |
fuel tank (1997-12-01~) |
| 09407-25401-000 |
CLAMP(L:235) - Clamp (l:235) |
fuel tank (1997-12-01~) |
| 09409-07332-000 |
CLIP |
fuel tank (1997-12-01~) |
| 89101-81AB0-000 |
TANK ASSY,FUEL |
fuel tank (1997-12-01~) |
| 89101-81AV0-000 |
TANK ASSY FUEL |
fuel tank (1997-12-01~) |
| 89201-81A01-000 |
ネックアッシ,フューエルフィラ |
fuel tank (1997-12-01~) |
| 89201-81A02-000 |
NECK ASSY,FUEL FILLER |
fuel tank (1997-12-01~) |
| 89241-81A00-000 |
HOSE FUEL TANK FILLER |
fuel tank (1997-12-01~) |
| 89241-81A20-000 |
HOSE,FUEL TANK FILLER |
fuel tank (1997-12-01~) |
| 89250-81A02-000 |
HOSE,FUEL TANK BREATHER |
fuel tank (1997-12-01~) |
| 89260-70G01-000 |
Cap assy, fuel filler |
fuel tank (1997-12-01~) |
| 89260-73H00-000 |
CAP ASSY,FUEL FILLER |
fuel tank (1997-12-01~) |
| 89280-77A00-000 |
VALVE,FUEL TANK INLET |
fuel tank (1997-12-01~) |
| 89285-75F00-000 |
PACKING,FUEL FILLER |
fuel tank (1997-12-01~) |
| 89311-81A00-000 |
PROTECTOR,FUEL FILLER NECK |
fuel tank (1997-12-01~) |
| 89321-81A00-000 |
PROTECTOR,FUEL TANK |
fuel tank (1997-12-01~) |
| 89322-81A00-000 |
PROTECTOR,FUEL TANK FR |
fuel tank (1997-12-01~) |
| 89322-81A10-000 |
PROTECTOR,FUEL TANK FR,R |
fuel tank (1997-12-01~) |
| 89483-81A00-000 |
PIPE,FUEL EVAP |
fuel tank (1997-12-01~) |
