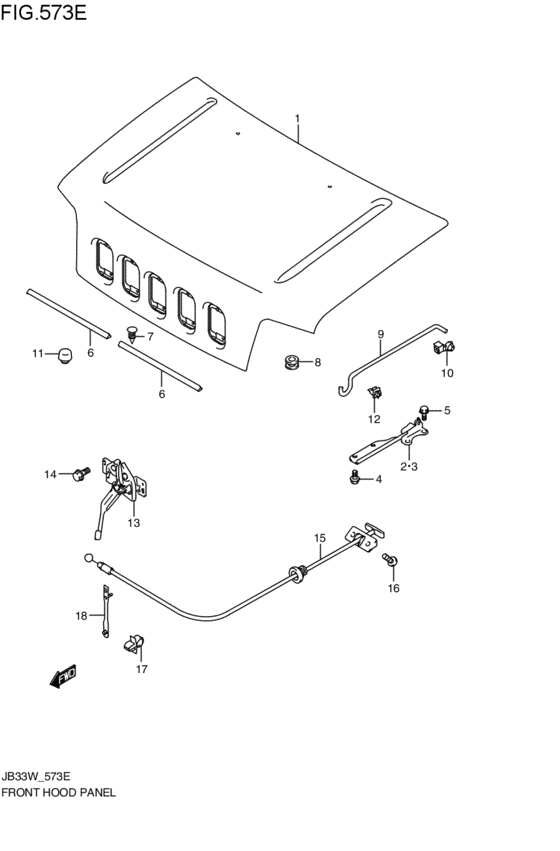

front hood (1997-12-01~)
26
| # | OEM | Part name |
|---|
| 1 |
58300-81880-000 |
PANEL SET FRONT HOOD |
| 1 |
58300-81883-000 |
PANEL ASSY,FRONT HOOD |
| 2 |
57410-50G00-000 |
HINGE,FR HOOD,R |
| 3 |
57420-50G00-000 |
HINGE,FR HOOD,L |
| 4 |
01550-08163-000 |
Bolt, holder |
| 4 |
01550-0816B-000 |
Bolt |
| 4 |
01550-0816A-000 |
Bolt - Bolt, rear |
| 5 |
02162-06163-000 |
Screw - Bolt |
| 5 |
02162-0616B-000 |
SCREW - Bolt, adjust |
| 6 |
72351-81A00-000 |
シール,フード,フロント |
| 6 |
72351-57M60-000 |
SEAL,HOOD FR |
| 7 |
09409-04304-000 |
CLIP |
| 8 |
72372-82000-000 |
CUSHION,BACK DR SIDE |
| 9 |
72431-81A00-000 |
STAY,FRONT HOOD |
| 10 |
09209-14001-000 |
LINKAGE |
| 11 |
72372-50E00-000 |
CUSHION,FR HOOD FR NO.2 |
| 12 |
09403-07311-000 |
CLAMP |
| 13 |
82110-81A00-000 |
ラッチ,フード |
| 13 |
82110-81A03-000 |
LATCH,HOOD |
| 15 |
82160-81A00-000 |
CABLE,HOOD LATCH RELEASE |
| 16 |
02142-05123-000 |
Screw 5x12 |
| 16 |
02142-0512A-000 |
SCREW - Screw, lower |
| 17 |
09403-06410-000 |
CLAMP |
| 17 |
09403-06411-000 |
Clamp |
| 17 |
09403-06412-000 |
CLAMP |
| 18 |
09407-05403-000 |
CLAMP,L:88 |
| OEM |
Part name |
Category |
| 01550-08163-000 |
Bolt, holder |
front hood (1997-12-01~) |
| 01550-0816A-000 |
Bolt - Bolt, rear |
front hood (1997-12-01~) |
| 01550-0816B-000 |
Bolt |
front hood (1997-12-01~) |
| 02142-05123-000 |
Screw 5x12 |
front hood (1997-12-01~) |
| 02142-0512A-000 |
SCREW - Screw, lower |
front hood (1997-12-01~) |
| 02162-06163-000 |
Screw - Bolt |
front hood (1997-12-01~) |
| 02162-0616B-000 |
SCREW - Bolt, adjust |
front hood (1997-12-01~) |
| 09209-14001-000 |
LINKAGE |
front hood (1997-12-01~) |
| 09403-06410-000 |
CLAMP |
front hood (1997-12-01~) |
| 09403-06411-000 |
Clamp |
front hood (1997-12-01~) |
| 09403-06412-000 |
CLAMP |
front hood (1997-12-01~) |
| 09403-07311-000 |
CLAMP |
front hood (1997-12-01~) |
| 09407-05403-000 |
CLAMP,L:88 |
front hood (1997-12-01~) |
| 09409-04304-000 |
CLIP |
front hood (1997-12-01~) |
| 57410-50G00-000 |
HINGE,FR HOOD,R |
front hood (1997-12-01~) |
| 57420-50G00-000 |
HINGE,FR HOOD,L |
front hood (1997-12-01~) |
| 58300-81880-000 |
PANEL SET FRONT HOOD |
front hood (1997-12-01~) |
| 58300-81883-000 |
PANEL ASSY,FRONT HOOD |
front hood (1997-12-01~) |
| 72351-57M60-000 |
SEAL,HOOD FR |
front hood (1997-12-01~) |
| 72351-81A00-000 |
シール,フード,フロント |
front hood (1997-12-01~) |
| 72372-50E00-000 |
CUSHION,FR HOOD FR NO.2 |
front hood (1997-12-01~) |
| 72372-82000-000 |
CUSHION,BACK DR SIDE |
front hood (1997-12-01~) |
| 72431-81A00-000 |
STAY,FRONT HOOD |
front hood (1997-12-01~) |
| 82110-81A00-000 |
ラッチ,フード |
front hood (1997-12-01~) |
| 82110-81A03-000 |
LATCH,HOOD |
front hood (1997-12-01~) |
| 82160-81A00-000 |
CABLE,HOOD LATCH RELEASE |
front hood (1997-12-01~) |
