JB32W

Suzuki JIMNY · 1995 · 2,238 parts · 112 categories

2,238 items

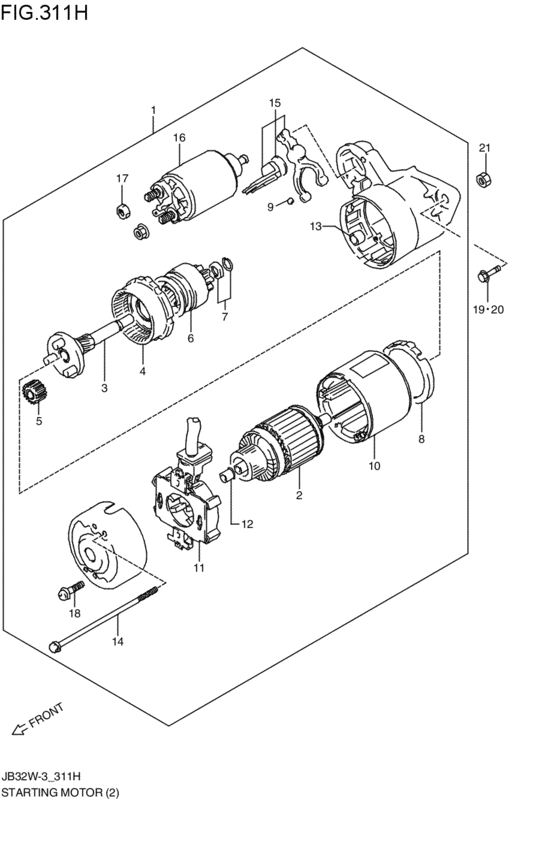

starting motor (AT; 1997-05-01~1997-09-01) 30

#	OEM	Part name
1	31100-60A22-000	モータアッシ,スターティング
1	31100-60A12-REM	Starting motor
1	31100-60A24-000	MOTOR ASSY,STARTING
2	31311-86032-000	Armature
3	31341-60A10-000	SHAFT,GEAR
4	31343-50F40-000	GEAR,INTERNAL
5	31344-86030-000	GEAR,PLNTY
6	31320-86030-000	CLUTCH,OVER RUNNING
7	31313-86030-000	STOPPER SET
7	31314-86030-000	Stopper Set
8	31345-86030-000	Packing
8	31345-60A00-000	PACKING
9	31193-86030-000	BALL
10	31110-86031-000	YOKE ASSY
11	31173-86031-000	HOLDER BRUSH
11	31173-60A22-000	HOLDER ASSY,BRUSH
12	31172-64B60-000	BEARING,REAR
13	31152-79030-000	BEARING,FRONT
14	31261-86030-000	Bolt
15	31191-86030-000	LEVER ASSY
16	31220-86030-000	SWITCH ASSY
17	08316-10083-000	Nut
17	08316-1008B-000	NUT
18	31136-79030-000	SCREW ASSY
18	31175-79030-000	Screw Set
19	01550-08303-000	Bolt
19	01550-0830B-000	Bolt
19	01550-0830A-000	Bolt - Bolt, mount oil seal cover
20	01550-08503-000	Bolt
20	01550-0850B-000	Bolt

OEM	Part name	Category
01550-08303-000	Bolt	starting motor (AT; 1997-05-01~1997-09-01)
01550-0830A-000	Bolt - Bolt, mount oil seal cover	starting motor (AT; 1997-05-01~1997-09-01)
01550-0830B-000	Bolt	starting motor (AT; 1997-05-01~1997-09-01)
01550-08503-000	Bolt	starting motor (AT; 1997-05-01~1997-09-01)
01550-0850B-000	Bolt	starting motor (AT; 1997-05-01~1997-09-01)
08316-10083-000	Nut	starting motor (AT; 1997-05-01~1997-09-01)
08316-1008B-000	NUT	starting motor (AT; 1997-05-01~1997-09-01)
31100-60A12-REM	Starting motor	starting motor (AT; 1997-05-01~1997-09-01)
31100-60A22-000	モータアッシ,スターティング	starting motor (AT; 1997-05-01~1997-09-01)
31100-60A24-000	MOTOR ASSY,STARTING	starting motor (AT; 1997-05-01~1997-09-01)
31110-86031-000	YOKE ASSY	starting motor (AT; 1997-05-01~1997-09-01)
31136-79030-000	SCREW ASSY	starting motor (AT; 1997-05-01~1997-09-01)
31152-79030-000	BEARING,FRONT	starting motor (AT; 1997-05-01~1997-09-01)
31172-64B60-000	BEARING,REAR	starting motor (AT; 1997-05-01~1997-09-01)
31173-60A22-000	HOLDER ASSY,BRUSH	starting motor (AT; 1997-05-01~1997-09-01)
31173-86031-000	HOLDER BRUSH	starting motor (AT; 1997-05-01~1997-09-01)
31175-79030-000	Screw Set	starting motor (AT; 1997-05-01~1997-09-01)
31191-86030-000	LEVER ASSY	starting motor (AT; 1997-05-01~1997-09-01)
31193-86030-000	BALL	starting motor (AT; 1997-05-01~1997-09-01)
31220-86030-000	SWITCH ASSY	starting motor (AT; 1997-05-01~1997-09-01)
31261-86030-000	Bolt	starting motor (AT; 1997-05-01~1997-09-01)
31311-86032-000	Armature	starting motor (AT; 1997-05-01~1997-09-01)
31313-86030-000	STOPPER SET	starting motor (AT; 1997-05-01~1997-09-01)
31314-86030-000	Stopper Set	starting motor (AT; 1997-05-01~1997-09-01)
31320-86030-000	CLUTCH,OVER RUNNING	starting motor (AT; 1997-05-01~1997-09-01)
31341-60A10-000	SHAFT,GEAR	starting motor (AT; 1997-05-01~1997-09-01)
31343-50F40-000	GEAR,INTERNAL	starting motor (AT; 1997-05-01~1997-09-01)
31344-86030-000	GEAR,PLNTY	starting motor (AT; 1997-05-01~1997-09-01)
31345-60A00-000	PACKING	starting motor (AT; 1997-05-01~1997-09-01)
31345-86030-000	Packing	starting motor (AT; 1997-05-01~1997-09-01)
