Search › Model › JB32W
JB32W

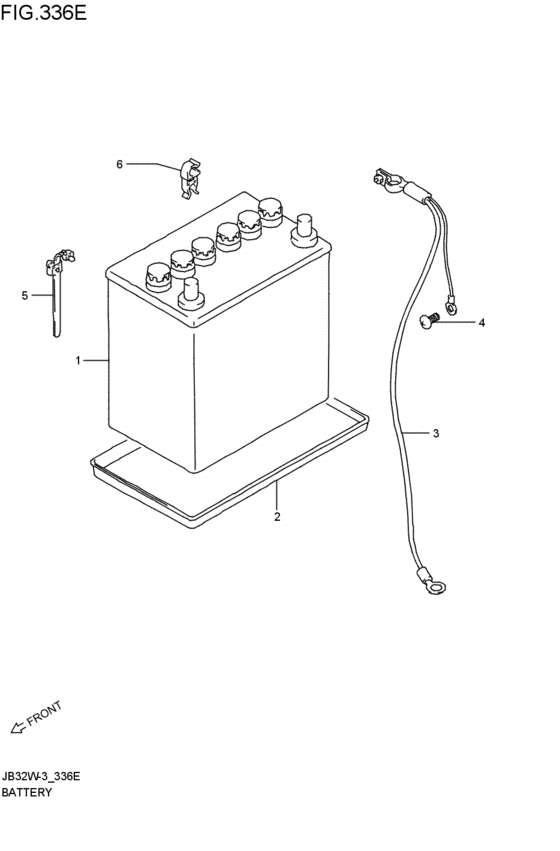

battery (1997-05-01~1997-09-01) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 33610-82120-000 | Battery assy |
| 1 | 33610-821V1-000 | BATTERY ASSY,55B24R (Cannot supply) |
| 2 | 33660-73010-000 | Tray, battery |
| 2 | 33660-71L10-000 | TRAY,BATTERY |
| 3 | 33850-82C20-000 | CABLE,BTRY GND |
| 4 | 09129-06002-000 | SCREW(6X12) |
| 5 | 09407-12404-000 | CLAMP(L:140) |
| 6 | 09408-00111-000 | CLAMP |
| OEM | Part name | Category |
|---|---|---|
| 09129-06002-000 | SCREW(6X12) | battery (1997-05-01~1997-09-01) |
| 09407-12404-000 | CLAMP(L:140) | battery (1997-05-01~1997-09-01) |
| 09408-00111-000 | CLAMP | battery (1997-05-01~1997-09-01) |
| 33610-82120-000 | Battery assy | battery (1997-05-01~1997-09-01) |
| 33610-821V1-000 | BATTERY ASSY,55B24R (Cannot supply) | battery (1997-05-01~1997-09-01) |
| 33660-71L10-000 | TRAY,BATTERY | battery (1997-05-01~1997-09-01) |
| 33660-73010-000 | Tray, battery | battery (1997-05-01~1997-09-01) |
| 33850-82C20-000 | CABLE,BTRY GND | battery (1997-05-01~1997-09-01) |
