Search › Model › JB32W
JB32W

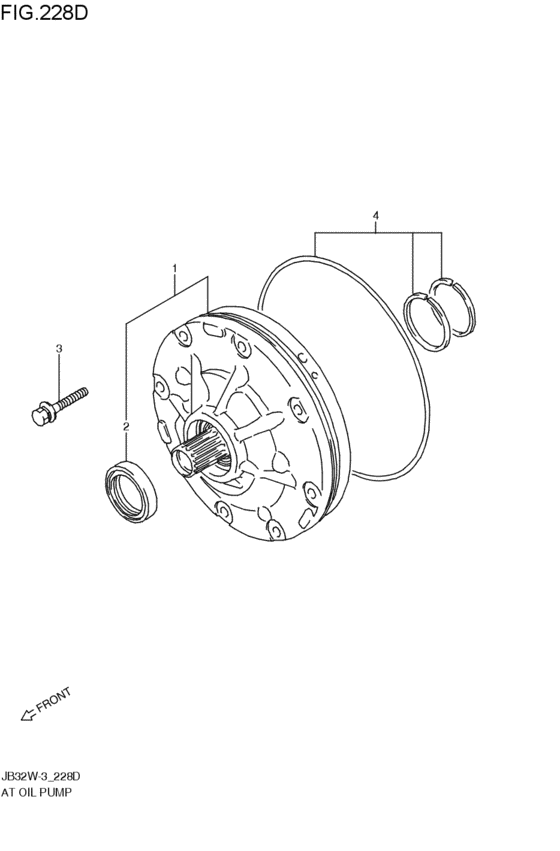

at - oil pump (AT; 1997-05-01~1997-09-01) 5
| # | OEM | Part name |
|---|---|---|
| 1 | 22800-83C00-000 | ポンプアッシ,オイル |
| 1 | 22800-78A12-000 | PUMP ASSY,OIL |
| 2 | 22881-72B20-000 | SEAL,OIL PUMP BODY OIL |
| 3 | 22883-55A00-000 | Bolt |
| 4 | 22860-62DT0-000 | SEAL RING SET,OIL PUMP |
| OEM | Part name | Category |
|---|---|---|
| 22800-78A12-000 | PUMP ASSY,OIL | at - oil pump (AT; 1997-05-01~1997-09-01) |
| 22800-83C00-000 | ポンプアッシ,オイル | at - oil pump (AT; 1997-05-01~1997-09-01) |
| 22860-62DT0-000 | SEAL RING SET,OIL PUMP | at - oil pump (AT; 1997-05-01~1997-09-01) |
| 22881-72B20-000 | SEAL,OIL PUMP BODY OIL | at - oil pump (AT; 1997-05-01~1997-09-01) |
| 22883-55A00-000 | Bolt | at - oil pump (AT; 1997-05-01~1997-09-01) |
