Search › Model › JB23W
JB23W

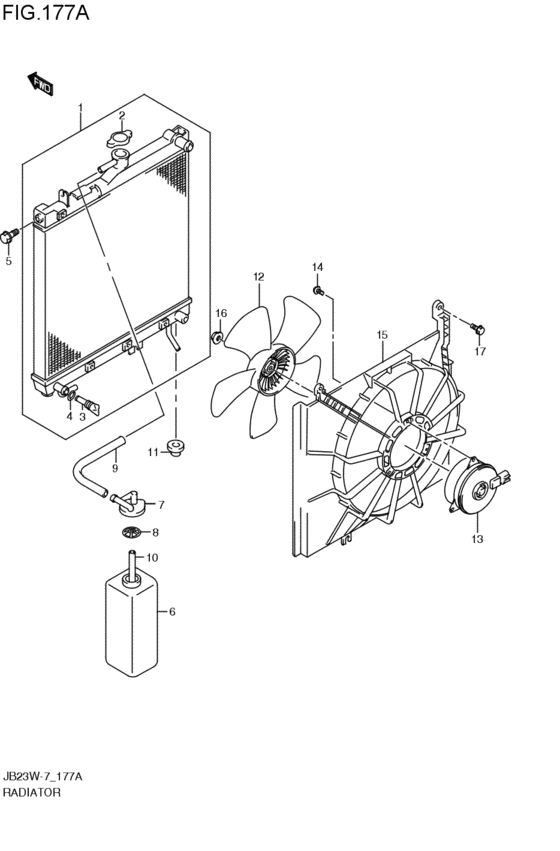

radiator (2008-03-01~) 19
| # | OEM | Part name |
|---|---|---|
| 1 | 17700-61L00-000 | ラジエータアッシ |
| 2 | 17920-75F00-000 | CAP,RADIATOR |
| 3 | 17751-61A00-000 | PLUG,DRAIN |
| 4 | 17759-72010-000 | O-RING |
| 5 | 02162-0625A-000 | SCREW |
| 6 | 17931-80F50-000 | TANK,WATER RESERVE |
| 7 | 17932-81AA0-000 | CAP,WATER RESERVE TANK |
| 8 | 17933-60B00-000 | RUBBER,WTR RSV TANK CAP - Rubber, tank cap |
| 9 | 17938-81A10-000 | HOSE,RDTR TO RSVR TANK |
| 10 | 09352-70111-600 | HOSE(7X11X600) |
| 11 | 17812-82000-000 | BUSHING,RADIATOR SUPPORT |
| 12 | 17111-81AA0-000 | ファンアッシ |
| 13 | 17120-76JA0-000 | モータアッシ,ファン |
| 14 | 02142-0510A-000 | SCREW - Bolt, oil pump rotor plate |
| 14 | 02142-0510B-000 | SCREW - Bolt |
| 15 | 17761-61L00-000 | シュラウド |
| 16 | 08316-2005A-000 | NUT |
| 17 | 02162-0616A-000 | SCREW |
| 17 | 02162-0616B-000 | SCREW - Bolt, adjust |
| OEM | Part name | Category |
|---|---|---|
| 02142-0510A-000 | SCREW - Bolt, oil pump rotor plate | radiator (2008-03-01~) |
| 02142-0510B-000 | SCREW - Bolt | radiator (2008-03-01~) |
| 02162-0616A-000 | SCREW | radiator (2008-03-01~) |
| 02162-0616B-000 | SCREW - Bolt, adjust | radiator (2008-03-01~) |
| 02162-0625A-000 | SCREW | radiator (2008-03-01~) |
| 08316-2005A-000 | NUT | radiator (2008-03-01~) |
| 09352-70111-600 | HOSE(7X11X600) | radiator (2008-03-01~) |
| 17111-81AA0-000 | ファンアッシ | radiator (2008-03-01~) |
| 17120-76JA0-000 | モータアッシ,ファン | radiator (2008-03-01~) |
| 17700-61L00-000 | ラジエータアッシ | radiator (2008-03-01~) |
| 17751-61A00-000 | PLUG,DRAIN | radiator (2008-03-01~) |
| 17759-72010-000 | O-RING | radiator (2008-03-01~) |
| 17761-61L00-000 | シュラウド | radiator (2008-03-01~) |
| 17812-82000-000 | BUSHING,RADIATOR SUPPORT | radiator (2008-03-01~) |
| 17920-75F00-000 | CAP,RADIATOR | radiator (2008-03-01~) |
| 17931-80F50-000 | TANK,WATER RESERVE | radiator (2008-03-01~) |
| 17932-81AA0-000 | CAP,WATER RESERVE TANK | radiator (2008-03-01~) |
| 17933-60B00-000 | RUBBER,WTR RSV TANK CAP - Rubber, tank cap | radiator (2008-03-01~) |
| 17938-81A10-000 | HOSE,RDTR TO RSVR TANK | radiator (2008-03-01~) |
