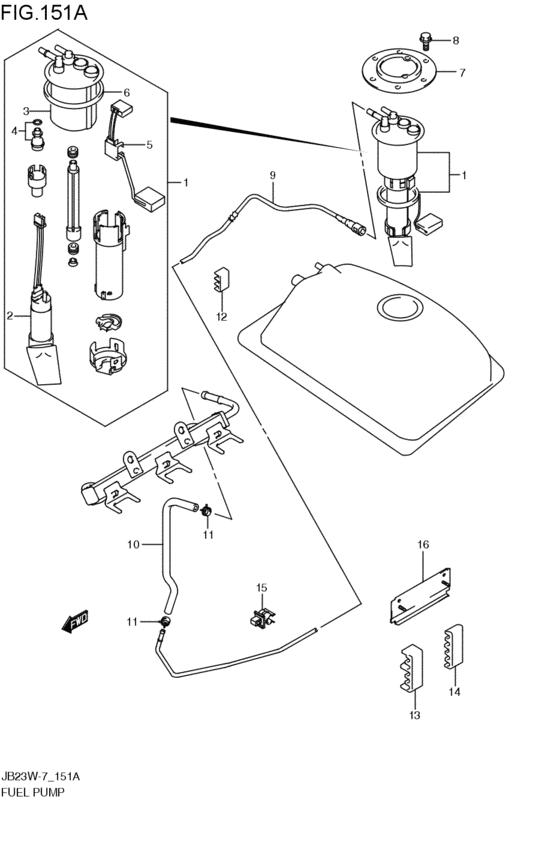

Fuel Pump (2008-03-01~)
16
| # | OEM | Part name |
|---|
| 1 |
15100-61820-000 |
FUEL PUMP ASSY |
| 2 |
15110-61L00-000 |
FUEL PUMP |
| 3 |
15310-61L00-000 |
Fuel filter |
| 4 |
15610-76G50-000 |
REGULATOR ASSY,FUEL |
| 5 |
34810-61L00-000 |
ゲージアッシ,フューエルレベル |
| 6 |
15111-50G01-000 |
GASKET,FUEL PUMP |
| 7 |
15121-50G00-000 |
PLATE,FUEL PUMP |
| 8 |
01550-0610A-000 |
Bolt |
| 9 |
15820-76J00-000 |
PIPE,FUEL FEED |
| 10 |
15824-83A00-000 |
ホース,フューエル(パイプツーエンジン) |
| 11 |
09401-13419-000 |
CLIP |
| 12 |
15893-60A11-000 |
CLAMP,FUEL PIPE |
| 13 |
15895-56B11-000 |
CLAMP,FUEL PIPE |
| 14 |
15895-60A11-000 |
CLAMP,FUEL PIPE |
| 15 |
09403-13307-000 |
CLAMP |
| 16 |
15873-76J00-000 |
PROTECTOR,FUEL PIPE |
| OEM |
Part name |
Category |
| 01550-0610A-000 |
Bolt |
Fuel Pump (2008-03-01~) |
| 09401-13419-000 |
CLIP |
Fuel Pump (2008-03-01~) |
| 09403-13307-000 |
CLAMP |
Fuel Pump (2008-03-01~) |
| 15100-61820-000 |
FUEL PUMP ASSY |
Fuel Pump (2008-03-01~) |
| 15110-61L00-000 |
FUEL PUMP |
Fuel Pump (2008-03-01~) |
| 15111-50G01-000 |
GASKET,FUEL PUMP |
Fuel Pump (2008-03-01~) |
| 15121-50G00-000 |
PLATE,FUEL PUMP |
Fuel Pump (2008-03-01~) |
| 15310-61L00-000 |
Fuel filter |
Fuel Pump (2008-03-01~) |
| 15610-76G50-000 |
REGULATOR ASSY,FUEL |
Fuel Pump (2008-03-01~) |
| 15820-76J00-000 |
PIPE,FUEL FEED |
Fuel Pump (2008-03-01~) |
| 15824-83A00-000 |
ホース,フューエル(パイプツーエンジン) |
Fuel Pump (2008-03-01~) |
| 15873-76J00-000 |
PROTECTOR,FUEL PIPE |
Fuel Pump (2008-03-01~) |
| 15893-60A11-000 |
CLAMP,FUEL PIPE |
Fuel Pump (2008-03-01~) |
| 15895-56B11-000 |
CLAMP,FUEL PIPE |
Fuel Pump (2008-03-01~) |
| 15895-60A11-000 |
CLAMP,FUEL PIPE |
Fuel Pump (2008-03-01~) |
| 34810-61L00-000 |
ゲージアッシ,フューエルレベル |
Fuel Pump (2008-03-01~) |
