JA71V

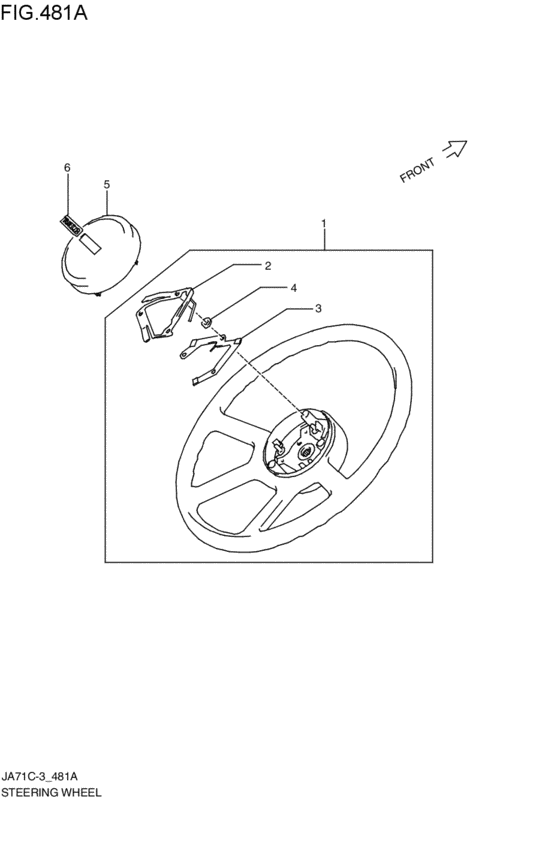

steering wheel (1987-11-01~1990-01-01) 6
| # | OEM | Part name |
|---|---|---|
| 1 | 48110-70A00-5ES | WHEEL ASSY,STEERING(BLACK) |
| 2 | 48130-70A00-000 | PLATE,HORN CONTACT |
| 3 | 48133-70A00-000 | Seat,contact |
| 4 | 48128-80030-000 | COLLAR |
| 5 | 48121-70A00-5ES | BUTTON,HORN |
| 6 | 48131-70A30-000 | emblem |
| OEM | Part name | Category |
|---|---|---|
| 48110-70A00-5ES | WHEEL ASSY,STEERING(BLACK) | steering wheel (1987-11-01~1990-01-01) |
| 48121-70A00-5ES | BUTTON,HORN | steering wheel (1987-11-01~1990-01-01) |
| 48128-80030-000 | COLLAR | steering wheel (1987-11-01~1990-01-01) |
| 48130-70A00-000 | PLATE,HORN CONTACT | steering wheel (1987-11-01~1990-01-01) |
| 48131-70A30-000 | emblem | steering wheel (1987-11-01~1990-01-01) |
| 48133-70A00-000 | Seat,contact | steering wheel (1987-11-01~1990-01-01) |
