| 01107-06123-000 |
Bolt 6x1x16 - Bolt, front |

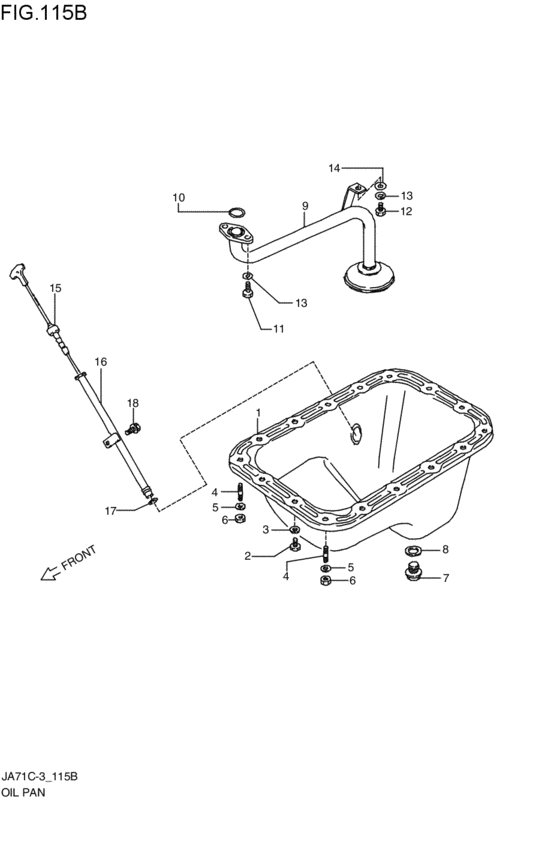

oil pan (1987-11-01~1990-01-01) |
| 01107-06163-000 |
Bolt m6x1x16 |
oil pan (1987-11-01~1990-01-01) |
| 01411-06123-000 |
Bolt, stud - Stud bolt |
oil pan (1987-11-01~1990-01-01) |
| 01411-0612A-000 |
BOLT,STUD |
oil pan (1987-11-01~1990-01-01) |
| 01500-06123-000 |
Bolt, front |
oil pan (1987-11-01~1990-01-01) |
| 01500-0612A-000 |
Bolt |
oil pan (1987-11-01~1990-01-01) |
| 01500-0616A-000 |
Bolt |
oil pan (1987-11-01~1990-01-01) |
| 01517-06123-000 |
Bolt |
oil pan (1987-11-01~1990-01-01) |
| 01550-0612A-000 |
Bolt |
oil pan (1987-11-01~1990-01-01) |
| 01550-0612B-000 |
Bolt - Bolt, clamp |
oil pan (1987-11-01~1990-01-01) |
| 08310-0006A-000 |
NUT |
oil pan (1987-11-01~1990-01-01) |
| 08310-0006B-000 |
NUT - Nut gear shift link rod |
oil pan (1987-11-01~1990-01-01) |
| 08310-11063-000 |
Nut m6x1x5 |
oil pan (1987-11-01~1990-01-01) |
| 08321-0106A-000 |
WASHER,LOCK |
oil pan (1987-11-01~1990-01-01) |
| 08321-21063-000 |
Lock washer |
oil pan (1987-11-01~1990-01-01) |
| 08322-0106B-000 |
WASHER |
oil pan (1987-11-01~1990-01-01) |
| 08322-21063-000 |
Washer |
oil pan (1987-11-01~1990-01-01) |
| 09100-06116-000 |
ボルト,10X12 |
oil pan (1987-11-01~1990-01-01) |
| 09100-06116-XC0 |
BOLT(10X12) |
oil pan (1987-11-01~1990-01-01) |
| 09168-14012-000 |
Washer |
oil pan (1987-11-01~1990-01-01) |
| 09168-14015-000 |
GASKET(14X20X1.5) - Gasket, oil hose union |
oil pan (1987-11-01~1990-01-01) |
| 09247-14027-000 |
PLUG(14X11.5) - Plug, oil drain |
oil pan (1987-11-01~1990-01-01) |
| 09247-14044-000 |
DRAIN PLUG (M14x1.5) |
oil pan (1987-11-01~1990-01-01) |
| 09280-10005-000 |
O ring, gear case |
oil pan (1987-11-01~1990-01-01) |
| 09280-10016-000 |
O RING(D:1.9,ID:9.8) |
oil pan (1987-11-01~1990-01-01) |
| 09280-16005-000 |
O RING(D:2.4,ID:15.8) - O ring, exhaust pipe |
oil pan (1987-11-01~1990-01-01) |
| 11510-80700-000 |
パン,オイル |
oil pan (1987-11-01~1990-01-01) |
| 16520-80700-000 |
ストレーナ,オイルポンプ |
oil pan (1987-11-01~1990-01-01) |
| 16910-80700-000 |
ゲージ,オイルレベル |
oil pan (1987-11-01~1990-01-01) |
| 16930-80700-000 |
ガイド,オイルレベルゲージ |
oil pan (1987-11-01~1990-01-01) |
