JA627W

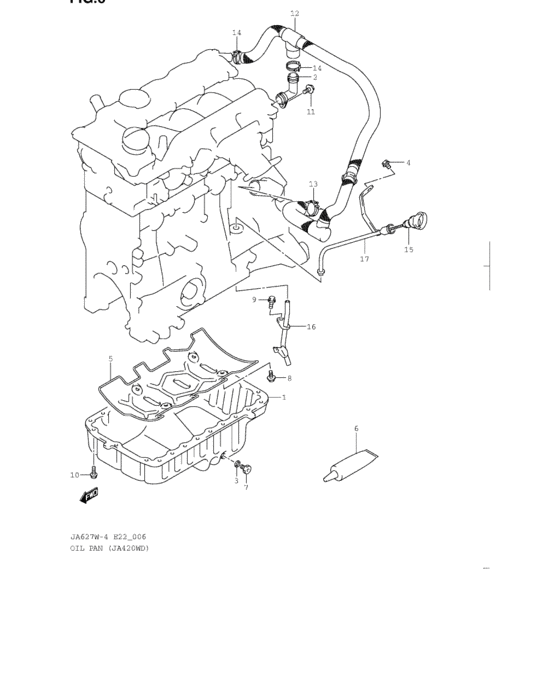

Oil pan (JA420WD) 19
| # | OEM | Part name |
|---|---|---|
| 1 | 11510-67G00-000 | PAN,OIL |
| 2 | 11283-67J00-000 | SOCKET |
| 3 | 13996-66G00-000 | GASKET |
| 4 | 16123-67G00-000 | BOLT,M6 |
| 5 | 16584-66G00-000 | PLATE,OIL PAN BAFFLE |
| 6 | 16588-66G00-000 | Gasket |
| 7 | 16590-66G00-000 | PLUG,DRAIN M14 |
| 7 | 16590-66G01-000 | PLUG,DRAIN M14 |
| 8 | 16593-66G00-000 | BOLT,6X16 |
| 9 | 16593-67J00-000 | BOLT,6X16 |
| 10 | 16594-66G00-000 | BOLT,7X21 |
| 11 | 16594-67J00-000 | BOLT,6X20 |
| 12 | 16596-67J00-000 | Hose |
| 12 | 16596-67J01-000 | HOSE |
| 13 | 16598-67J01-000 | Clamp - 32 |
| 14 | 16599-67J00-000 | CLAMP |
| 15 | 16910-67J00-000 | GAUGE,OIL LEVEL |
| 16 | 16930-67G00-000 | GUIDE,OIL LEVEL GAUGE LWR |
| 17 | 16935-67J00-000 | GUIDE,OIL LEVEL GAUGE UPR |
| OEM | Part name | Category |
|---|---|---|
| 11283-67J00-000 | SOCKET | Oil pan (JA420WD) |
| 11510-67G00-000 | PAN,OIL | Oil pan (JA420WD) |
| 13996-66G00-000 | GASKET | Oil pan (JA420WD) |
| 16123-67G00-000 | BOLT,M6 | Oil pan (JA420WD) |
| 16584-66G00-000 | PLATE,OIL PAN BAFFLE | Oil pan (JA420WD) |
| 16588-66G00-000 | Gasket | Oil pan (JA420WD) |
| 16590-66G00-000 | PLUG,DRAIN M14 | Oil pan (JA420WD) |
| 16590-66G01-000 | PLUG,DRAIN M14 | Oil pan (JA420WD) |
| 16593-66G00-000 | BOLT,6X16 | Oil pan (JA420WD) |
| 16593-67J00-000 | BOLT,6X16 | Oil pan (JA420WD) |
| 16594-66G00-000 | BOLT,7X21 | Oil pan (JA420WD) |
| 16594-67J00-000 | BOLT,6X20 | Oil pan (JA420WD) |
| 16596-67J00-000 | Hose | Oil pan (JA420WD) |
| 16596-67J01-000 | HOSE | Oil pan (JA420WD) |
| 16598-67J01-000 | Clamp - 32 | Oil pan (JA420WD) |
| 16599-67J00-000 | CLAMP | Oil pan (JA420WD) |
| 16910-67J00-000 | GAUGE,OIL LEVEL | Oil pan (JA420WD) |
| 16930-67G00-000 | GUIDE,OIL LEVEL GAUGE LWR | Oil pan (JA420WD) |
| 16935-67J00-000 | GUIDE,OIL LEVEL GAUGE UPR | Oil pan (JA420WD) |
