JA627W

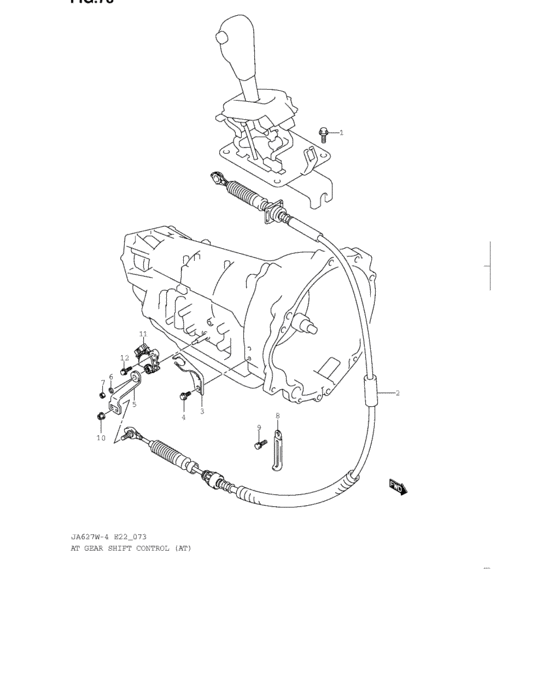

Gear shift control (AT) 20
| # | OEM | Part name |
|---|---|---|
| 1 | 09118-08118-000 | BOLT(8X20) |
| 2 | 28210-54J10-000 | CABLE ASSY,SELECT |
| 3 | 28221-54J10-000 | BRACKET,SELECT CABLE |
| 4 | 01550-08203-000 | Bolt |
| 4 | 01550-0820B-000 | Bolt |
| 4 | 01550-0820A-000 | Bolt - Bolt, funnel bracket |
| 5 | 28231-54J10-000 | レバー,マニュアルセレクト |
| 5 | 28231-54J11-000 | LEVER,MANUAL SLT |
| 6 | 09162-08008-000 | WASHER,LOCK - Lock washer |
| 7 | 08310-00083-000 | Nut |
| 7 | 08310-0008B-000 | NUT |
| 7 | 08310-0008A-000 | NUT - Nut, bead stopper |
| 8 | 09404-08420-000 | CLAMP(L:120 T:1.0) |
| 9 | 01550-08123-000 | Bolt - Plug, oil gallery |
| 9 | 01550-0812B-000 | Bolt - Plug, drain |
| 9 | 01550-0812A-000 | Bolt |
| 10 | 09159-08069-000 | Nut |
| 10 | 09159-08135-000 | NUT |
| 11 | 24741-53J10-000 | SWITCH ASSY,SHIFT |
| 12 | 24742-53J10-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01550-08123-000 | Bolt - Plug, oil gallery | Gear shift control (AT) |
| 01550-0812A-000 | Bolt | Gear shift control (AT) |
| 01550-0812B-000 | Bolt - Plug, drain | Gear shift control (AT) |
| 01550-08203-000 | Bolt | Gear shift control (AT) |
| 01550-0820A-000 | Bolt - Bolt, funnel bracket | Gear shift control (AT) |
| 01550-0820B-000 | Bolt | Gear shift control (AT) |
| 08310-00083-000 | Nut | Gear shift control (AT) |
| 08310-0008A-000 | NUT - Nut, bead stopper | Gear shift control (AT) |
| 08310-0008B-000 | NUT | Gear shift control (AT) |
| 09118-08118-000 | BOLT(8X20) | Gear shift control (AT) |
| 09159-08069-000 | Nut | Gear shift control (AT) |
| 09159-08135-000 | NUT | Gear shift control (AT) |
| 09162-08008-000 | WASHER,LOCK - Lock washer | Gear shift control (AT) |
| 09404-08420-000 | CLAMP(L:120 T:1.0) | Gear shift control (AT) |
| 24741-53J10-000 | SWITCH ASSY,SHIFT | Gear shift control (AT) |
| 24742-53J10-000 | Bolt | Gear shift control (AT) |
| 28210-54J10-000 | CABLE ASSY,SELECT | Gear shift control (AT) |
| 28221-54J10-000 | BRACKET,SELECT CABLE | Gear shift control (AT) |
| 28231-54J10-000 | レバー,マニュアルセレクト | Gear shift control (AT) |
| 28231-54J11-000 | LEVER,MANUAL SLT | Gear shift control (AT) |
