Search › Model › JA627W
JA627W

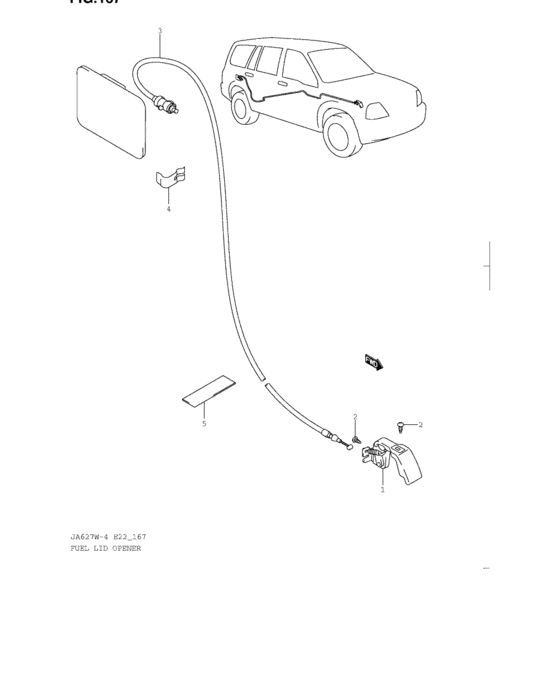

Fuel lid opener (FUEL LID OPENER) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 76510-60A00-000 | HANDLE ASSY,FUEL OPENER |
| 2 | 03141-06103-000 | Screw |
| 2 | 03141-0610A-000 | SCREW |
| 3 | 76520-52D01-000 | OPENER ASSY,FUEL LID |
| 3 | 76520-52D11-000 | OPENER ASSY,FUEL LID |
| 4 | 77118-60B02-000 | SPRING,FUEL LID |
| 5 | 36930-82010-000 | COVER,HARNESS - Cover, roof wire |
| OEM | Part name | Category |
|---|---|---|
| 03141-06103-000 | Screw | Fuel lid opener (FUEL LID OPENER) |
| 03141-0610A-000 | SCREW | Fuel lid opener (FUEL LID OPENER) |
| 36930-82010-000 | COVER,HARNESS - Cover, roof wire | Fuel lid opener (FUEL LID OPENER) |
| 76510-60A00-000 | HANDLE ASSY,FUEL OPENER | Fuel lid opener (FUEL LID OPENER) |
| 76520-52D01-000 | OPENER ASSY,FUEL LID | Fuel lid opener (FUEL LID OPENER) |
| 76520-52D11-000 | OPENER ASSY,FUEL LID | Fuel lid opener (FUEL LID OPENER) |
| 77118-60B02-000 | SPRING,FUEL LID | Fuel lid opener (FUEL LID OPENER) |
