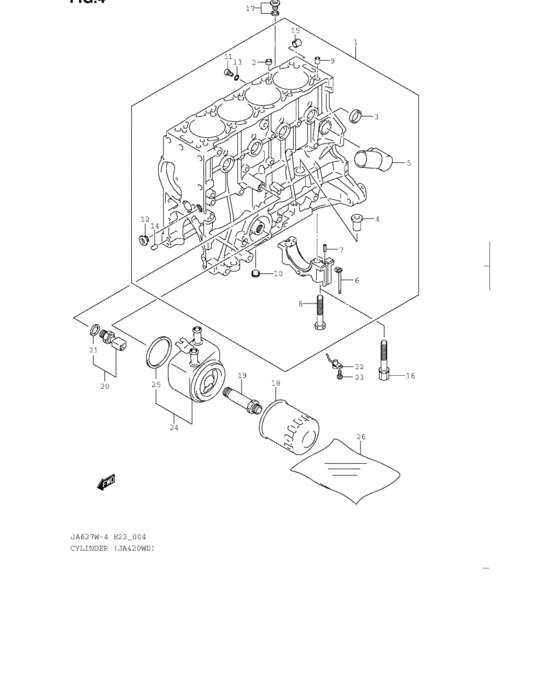

Cylinder (JA420WD)
28
| # | OEM | Part name |
|---|
| 1 |
11210-67J00-000 |
BLOCK ASSY,CYLINDER |
| 2 |
11213-67G00-000 |
PLUG |
| 3 |
11281-66G00-270 |
PLUG |
| 4 |
11283-66G00-000 |
Socket |
| 5 |
11283-67G00-000 |
SOCKET |
| 6 |
11284-67G00-000 |
SEAL,BEARING |
| 7 |
11285-66G00-000 |
PIN |
| 8 |
11286-66G00-000 |
Bolt,12x81 |
| 9 |
11289-66G00-000 |
Pin |
| 10 |
11295-66G00-000 |
PLUG,M15 |
| 11 |
11295-67G00-000 |
PLUG,M12 |
| 12 |
11296-66G00-000 |
PLUG,M15 |
| 13 |
11298-66G00-000 |
GASKET |
| 14 |
12626-66G00-000 |
PIN |
| 15 |
24723-66G00-000 |
PIN,DOWEL |
| 16 |
11287-66G00-000 |
Bolt,12x150 |
| 17 |
11297-67G00-000 |
PLUG,M16 |
| 18 |
16510-66G02-000 |
FILTER ASSY,OIL |
| 19 |
16580-67G00-000 |
STAND,OIL FILTER |
| 20 |
16582-67G00-000 |
SWITCH,OIL PRESSURE |
| 21 |
11289-67G01-000 |
GASKET |
| 22 |
16591-67G00-000 |
JET,OIL |
| 23 |
16592-67G00-000 |
BOLT,6X18 |
| 24 |
16600-67G00-000 |
Cooler, oil |
| 24 |
16600-67G01-000 |
Cooler Assy,Oil |
| 25 |
16581-66G00-000 |
SEAL,OIL COOLER VALEO |
| 25 |
16611-67J00-000 |
SEAL,OIL COOLER MODINE |
| 26 |
11291-67J00-000 |
GASKET SET,ENGINE |
| OEM |
Part name |
Category |
| 11210-67J00-000 |
BLOCK ASSY,CYLINDER |
Cylinder (JA420WD) |
| 11213-67G00-000 |
PLUG |
Cylinder (JA420WD) |
| 11281-66G00-270 |
PLUG |
Cylinder (JA420WD) |
| 11283-66G00-000 |
Socket |
Cylinder (JA420WD) |
| 11283-67G00-000 |
SOCKET |
Cylinder (JA420WD) |
| 11284-67G00-000 |
SEAL,BEARING |
Cylinder (JA420WD) |
| 11285-66G00-000 |
PIN |
Cylinder (JA420WD) |
| 11286-66G00-000 |
Bolt,12x81 |
Cylinder (JA420WD) |
| 11287-66G00-000 |
Bolt,12x150 |
Cylinder (JA420WD) |
| 11289-66G00-000 |
Pin |
Cylinder (JA420WD) |
| 11289-67G01-000 |
GASKET |
Cylinder (JA420WD) |
| 11291-67J00-000 |
GASKET SET,ENGINE |
Cylinder (JA420WD) |
| 11295-66G00-000 |
PLUG,M15 |
Cylinder (JA420WD) |
| 11295-67G00-000 |
PLUG,M12 |
Cylinder (JA420WD) |
| 11296-66G00-000 |
PLUG,M15 |
Cylinder (JA420WD) |
| 11297-67G00-000 |
PLUG,M16 |
Cylinder (JA420WD) |
| 11298-66G00-000 |
GASKET |
Cylinder (JA420WD) |
| 12626-66G00-000 |
PIN |
Cylinder (JA420WD) |
| 16510-66G02-000 |
FILTER ASSY,OIL |
Cylinder (JA420WD) |
| 16580-67G00-000 |
STAND,OIL FILTER |
Cylinder (JA420WD) |
| 16581-66G00-000 |
SEAL,OIL COOLER VALEO |
Cylinder (JA420WD) |
| 16582-67G00-000 |
SWITCH,OIL PRESSURE |
Cylinder (JA420WD) |
| 16591-67G00-000 |
JET,OIL |
Cylinder (JA420WD) |
| 16592-67G00-000 |
BOLT,6X18 |
Cylinder (JA420WD) |
| 16600-67G00-000 |
Cooler, oil |
Cylinder (JA420WD) |
| 16600-67G01-000 |
Cooler Assy,Oil |
Cylinder (JA420WD) |
| 16611-67J00-000 |
SEAL,OIL COOLER MODINE |
Cylinder (JA420WD) |
| 24723-66G00-000 |
PIN,DOWEL |
Cylinder (JA420WD) |
