JA627W

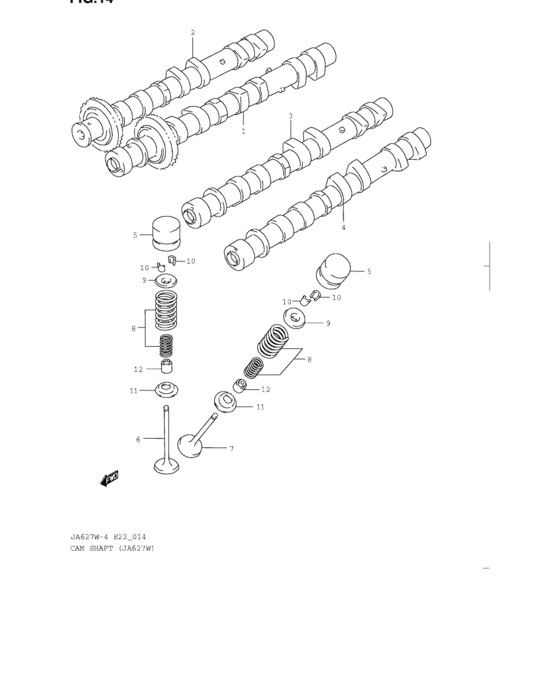

Cam shaft (JA627W) 15
| # | OEM | Part name |
|---|---|---|
| 1 | 12710-52D01-000 | CAMSHAFT,INTK,R |
| 2 | 12720-85FA3-000 | CAMSHAFT,EXH,R |
| 3 | 12715-52D01-000 | CAMSHAFT,INTK,L |
| 4 | 12725-85FA3-000 | CAMSHAFT,EXH,L |
| 5 | 12891-86521-000 | ADJUSTER,HYDR VALVE LASH |
| 6 | 12911-86FA1-000 | Valve,intake |
| 6 | 12911-86FA2-000 | Valve,intake |
| 7 | 12915-86F50-000 | Valve,exhaust |
| 7 | 12915-86F51-000 | Valve,exhaust |
| 7 | 12915-86FA1-000 | Valve,exhaust |
| 8 | 12920-62G00-000 | SPRING SET,VALVE |
| 9 | 12931-62G10-000 | RETAINER,VALVE SPRING |
| 10 | 12932-85FA0-000 | COTTER,VALVE |
| 11 | 12933-62G01-000 | SEAT,VALVE SPRING |
| 12 | 09289-06003-000 | SEAL,OIL(6X12.8X10.2) - Seal, valve strm |
| OEM | Part name | Category |
|---|---|---|
| 09289-06003-000 | SEAL,OIL(6X12.8X10.2) - Seal, valve strm | Cam shaft (JA627W) |
| 12710-52D01-000 | CAMSHAFT,INTK,R | Cam shaft (JA627W) |
| 12715-52D01-000 | CAMSHAFT,INTK,L | Cam shaft (JA627W) |
| 12720-85FA3-000 | CAMSHAFT,EXH,R | Cam shaft (JA627W) |
| 12725-85FA3-000 | CAMSHAFT,EXH,L | Cam shaft (JA627W) |
| 12891-86521-000 | ADJUSTER,HYDR VALVE LASH | Cam shaft (JA627W) |
| 12911-86FA1-000 | Valve,intake | Cam shaft (JA627W) |
| 12911-86FA2-000 | Valve,intake | Cam shaft (JA627W) |
| 12915-86F50-000 | Valve,exhaust | Cam shaft (JA627W) |
| 12915-86F51-000 | Valve,exhaust | Cam shaft (JA627W) |
| 12915-86FA1-000 | Valve,exhaust | Cam shaft (JA627W) |
| 12920-62G00-000 | SPRING SET,VALVE | Cam shaft (JA627W) |
| 12931-62G10-000 | RETAINER,VALVE SPRING | Cam shaft (JA627W) |
| 12932-85FA0-000 | COTTER,VALVE | Cam shaft (JA627W) |
| 12933-62G01-000 | SEAT,VALVE SPRING | Cam shaft (JA627W) |
