Search › Model › JA627W

JA627W

Suzuki GRAND-VITARA · 5,158 parts · 203 categories

5,158 items

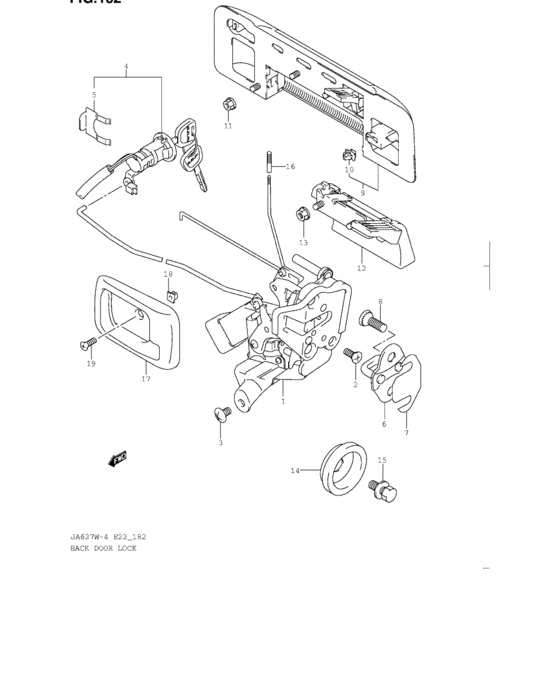

Back door lock (BACK DOOR LOCK) 28

#	OEM	Part name
1	82510-65D10-000	LATCH BACK DOOR
1	82510-65D11-000	LATCH ASSY,BACK DR
1	82510-65D00-000	Latch assy, back door
1	82510-65D01-000	LATCH ASSY,BACK DR
2	82581-52D00-000	スクリュ,ドアラッチ
2	82581-52D02-000	SCREW,DOOR LATCH
3	02142-06103-000	Screw
3	02142-0610B-000	SCREW - Stopper, cl rlse cam shaft
3	02142-0610A-000	SCREW
4	82500-65860-000	CYLINDER,BACK DR LATCH LOCK
5	82291-52D00-000	RETAINER,FR DOOR CYLINDER
6	82610-60A01-000	STRIKER,FR DOOR LATCH
7	78199-78000-000	SPACER,DOOR LOCK STRIKER
8	09137-08011-000	SCREW(8X18)
9	82850-65D13-5PK	HANDLE,BACK DOOR OUTER (BLACK)
10	83942-61A02-000	CLIP
10	83942-65D00-000	CLIP
11	08316-10063-000	Nut
11	08316-1006B-000	NUT
12	82850-65D00-5PK	HANDLE, BACK DOOR OUTER (BLACK)
14	82761-61A00-000	MALE,BACK DR STOP DR
15	09118-08128-000	BOLT(8X16) - Bolt, front fender, front
16	82982-65D00-R8J	Knob, Door Inside Lock (Gray)
17	83101-65D00-R8J	HANDLE,BACK DR INSIDE
17	83101-65D01-R8J	HANDLE,BACK DR INSIDE
18	83119-60B00-000	NUT,FR DOOR INSIDE HANDLE
19	03521-05163-000	Screw
19	03521-0516A-000	SCREW

OEM	Part name	Category
02142-06103-000	Screw	Back door lock (BACK DOOR LOCK)
02142-0610A-000	SCREW	Back door lock (BACK DOOR LOCK)
02142-0610B-000	SCREW - Stopper, cl rlse cam shaft	Back door lock (BACK DOOR LOCK)
03521-05163-000	Screw	Back door lock (BACK DOOR LOCK)
03521-0516A-000	SCREW	Back door lock (BACK DOOR LOCK)
08316-10063-000	Nut	Back door lock (BACK DOOR LOCK)
08316-1006B-000	NUT	Back door lock (BACK DOOR LOCK)
09118-08128-000	BOLT(8X16) - Bolt, front fender, front	Back door lock (BACK DOOR LOCK)
09137-08011-000	SCREW(8X18)	Back door lock (BACK DOOR LOCK)
78199-78000-000	SPACER,DOOR LOCK STRIKER	Back door lock (BACK DOOR LOCK)
82291-52D00-000	RETAINER,FR DOOR CYLINDER	Back door lock (BACK DOOR LOCK)
82500-65860-000	CYLINDER,BACK DR LATCH LOCK	Back door lock (BACK DOOR LOCK)
82510-65D00-000	Latch assy, back door	Back door lock (BACK DOOR LOCK)
82510-65D01-000	LATCH ASSY,BACK DR	Back door lock (BACK DOOR LOCK)
82510-65D10-000	LATCH BACK DOOR	Back door lock (BACK DOOR LOCK)
82510-65D11-000	LATCH ASSY,BACK DR	Back door lock (BACK DOOR LOCK)
82581-52D00-000	スクリュ,ドアラッチ	Back door lock (BACK DOOR LOCK)
82581-52D02-000	SCREW,DOOR LATCH	Back door lock (BACK DOOR LOCK)
82610-60A01-000	STRIKER,FR DOOR LATCH	Back door lock (BACK DOOR LOCK)
82761-61A00-000	MALE,BACK DR STOP DR	Back door lock (BACK DOOR LOCK)
82850-65D00-5PK	HANDLE, BACK DOOR OUTER (BLACK)	Back door lock (BACK DOOR LOCK)
82850-65D13-5PK	HANDLE,BACK DOOR OUTER (BLACK)	Back door lock (BACK DOOR LOCK)
82982-65D00-R8J	Knob, Door Inside Lock (Gray)	Back door lock (BACK DOOR LOCK)
83101-65D00-R8J	HANDLE,BACK DR INSIDE	Back door lock (BACK DOOR LOCK)
83101-65D01-R8J	HANDLE,BACK DR INSIDE	Back door lock (BACK DOOR LOCK)
83119-60B00-000	NUT,FR DOOR INSIDE HANDLE	Back door lock (BACK DOOR LOCK)
83942-61A02-000	CLIP	Back door lock (BACK DOOR LOCK)
83942-65D00-000	CLIP	Back door lock (BACK DOOR LOCK)

Source: Public OEM parts-catalog data
Variants: 2 / 20
Category: 203
Collected: 2026-08-01
