Search › Model › JA627W
JA627W

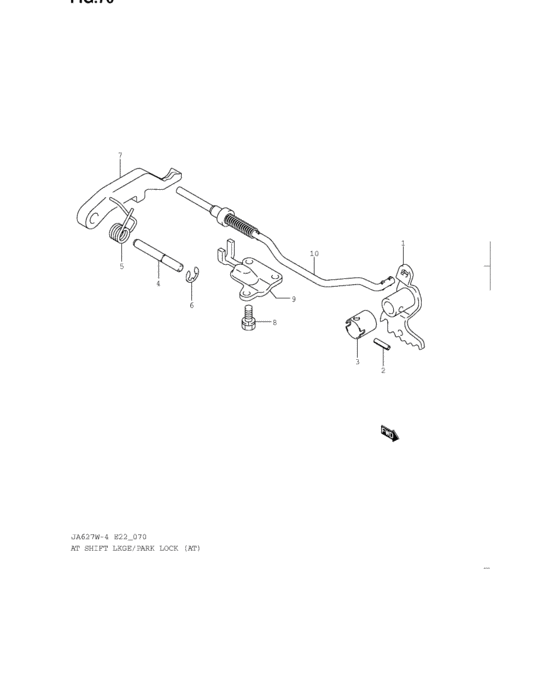

At shf lkge & park lock (AT) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 25951-54J10-000 | LEVER,MANUAL DETENT |
| 2 | 29898-57B00-000 | PIN,SPRING MNL SHIFT LVR |
| 3 | 25912-57B00-000 | SPACER,MANUAL DETENT LEVER |
| 4 | 25911-54J10-000 | SHAFT,PARKING LOCK PAWL |
| 5 | 25918-54J10-000 | SPRING,PARKING LOCK RETURN |
| 6 | 28948-57B00-000 | RING,SNAP PARKING LOCK PAWL |
| 7 | 25912-54J10-000 | PAWL,PARKING LOCK |
| 8 | 24746-53J10-000 | BOLT,INPUT SPEED SENSOR |
| 9 | 25914-54J10-000 | BRACKET,PARKING LOCK PAWL |
| 10 | 25920-54J10-000 | ROD,PARKING LOCK PAWL |
| OEM | Part name | Category |
|---|---|---|
| 24746-53J10-000 | BOLT,INPUT SPEED SENSOR | At shf lkge & park lock (AT) |
| 25911-54J10-000 | SHAFT,PARKING LOCK PAWL | At shf lkge & park lock (AT) |
| 25912-54J10-000 | PAWL,PARKING LOCK | At shf lkge & park lock (AT) |
| 25912-57B00-000 | SPACER,MANUAL DETENT LEVER | At shf lkge & park lock (AT) |
| 25914-54J10-000 | BRACKET,PARKING LOCK PAWL | At shf lkge & park lock (AT) |
| 25918-54J10-000 | SPRING,PARKING LOCK RETURN | At shf lkge & park lock (AT) |
| 25920-54J10-000 | ROD,PARKING LOCK PAWL | At shf lkge & park lock (AT) |
| 25951-54J10-000 | LEVER,MANUAL DETENT | At shf lkge & park lock (AT) |
| 28948-57B00-000 | RING,SNAP PARKING LOCK PAWL | At shf lkge & park lock (AT) |
| 29898-57B00-000 | PIN,SPRING MNL SHIFT LVR | At shf lkge & park lock (AT) |
