Search › Model › JA627W
JA627W

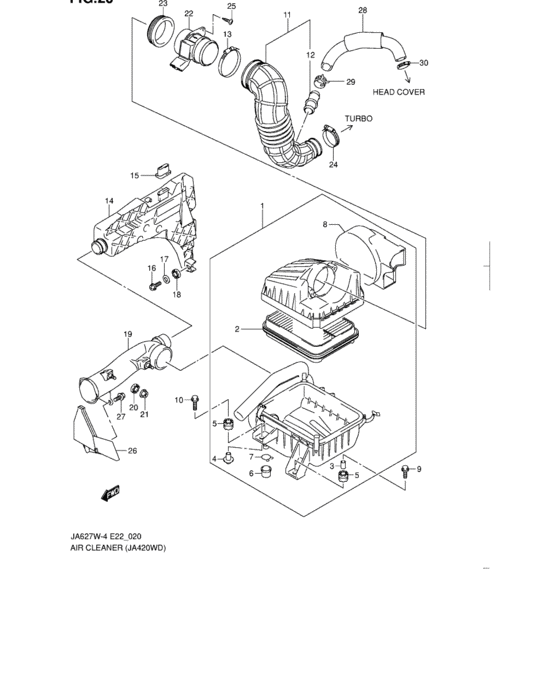

Air cleaner (JA420WD) 35
| # | OEM | Part name |
|---|---|---|
| 1 | 13700-68DB0-000 | CLEANER ASSY,AIR |
| 2 | 13780-77E00-000 | ELEMENT,AIR CLEANER |
| 3 | 13877-65D00-000 | COLLAR,7.6X10X19.3 |
| 4 | 13877-68D00-000 | Collar |
| 5 | 13878-65D00-000 | CUSHION,12.5X22X19.5 |
| 6 | 13875-78E00-000 | CAP,DRAIN |
| 7 | 13876-78E00-000 | CLIP |
| 8 | 13873-68DA0-000 | COVER,ACCEL PEDAL SENSOR |
| 9 | 09116-06172-000 | BOLT(6X30) - Bolt (6x30) |
| 10 | 13764-68D00-000 | BOLT,AIR CLNR |
| 11 | 13880-68DB0-000 | PIPE,AIR CLNR OUTLET |
| 12 | 13882-68DB0-000 | UNION |
| 13 | 09402-82511-000 | CLAMP |
| 14 | 13761-65D00-000 | RESONATOR |
| 15 | 13765-65D00-000 | CUSHION,RESONATOR,UPPER |
| 16 | 02162-06203-000 | Bolt |
| 16 | 02162-0620C-000 | SCREW |
| 17 | 09169-07007-000 | WASHER |
| 18 | 09320-08047-000 | CUSHION |
| 18 | 09320-08518-000 | Cushion |
| 19 | 13820-68DA1-000 | CASE,AIR CLNR SUCTION |
| 20 | 13874-51E50-000 | CUSHION,RESONATOR NO.2 |
| 21 | 09159-06081-000 | NUT |
| 22 | 13800-67G00-000 | SENSOR ASSY,MAIN AIR FLOW |
| 23 | 13824-65D00-000 | JOINT,MAF SENSOR |
| 24 | 09402-57511-000 | CLAMP |
| 25 | 03542-06163-000 | Screw |
| 25 | 03541-0616A-000 | SCREW |
| 26 | 13821-68DA0-000 | PROTECTOR |
| 27 | 01550-06123-000 | Bolt |
| 27 | 01550-0612B-000 | Bolt - Bolt, clamp |
| 27 | 01550-0612A-000 | Bolt |
| 28 | 11191-68DB0-000 | HOSE,BREATHER |
| 29 | 09401-30405-000 | CLIP |
| 30 | 09402-32511-000 | CLAMP |
| OEM | Part name | Category |
|---|---|---|
| 01550-06123-000 | Bolt | Air cleaner (JA420WD) |
| 01550-0612A-000 | Bolt | Air cleaner (JA420WD) |
| 01550-0612B-000 | Bolt - Bolt, clamp | Air cleaner (JA420WD) |
| 02162-06203-000 | Bolt | Air cleaner (JA420WD) |
| 02162-0620C-000 | SCREW | Air cleaner (JA420WD) |
| 03541-0616A-000 | SCREW | Air cleaner (JA420WD) |
| 03542-06163-000 | Screw | Air cleaner (JA420WD) |
| 09116-06172-000 | BOLT(6X30) - Bolt (6x30) | Air cleaner (JA420WD) |
| 09159-06081-000 | NUT | Air cleaner (JA420WD) |
| 09169-07007-000 | WASHER | Air cleaner (JA420WD) |
| 09320-08047-000 | CUSHION | Air cleaner (JA420WD) |
| 09320-08518-000 | Cushion | Air cleaner (JA420WD) |
| 09401-30405-000 | CLIP | Air cleaner (JA420WD) |
| 09402-32511-000 | CLAMP | Air cleaner (JA420WD) |
| 09402-57511-000 | CLAMP | Air cleaner (JA420WD) |
| 09402-82511-000 | CLAMP | Air cleaner (JA420WD) |
| 11191-68DB0-000 | HOSE,BREATHER | Air cleaner (JA420WD) |
| 13700-68DB0-000 | CLEANER ASSY,AIR | Air cleaner (JA420WD) |
| 13761-65D00-000 | RESONATOR | Air cleaner (JA420WD) |
| 13764-68D00-000 | BOLT,AIR CLNR | Air cleaner (JA420WD) |
| 13765-65D00-000 | CUSHION,RESONATOR,UPPER | Air cleaner (JA420WD) |
| 13780-77E00-000 | ELEMENT,AIR CLEANER | Air cleaner (JA420WD) |
| 13800-67G00-000 | SENSOR ASSY,MAIN AIR FLOW | Air cleaner (JA420WD) |
| 13820-68DA1-000 | CASE,AIR CLNR SUCTION | Air cleaner (JA420WD) |
| 13821-68DA0-000 | PROTECTOR | Air cleaner (JA420WD) |
| 13824-65D00-000 | JOINT,MAF SENSOR | Air cleaner (JA420WD) |
| 13873-68DA0-000 | COVER,ACCEL PEDAL SENSOR | Air cleaner (JA420WD) |
| 13874-51E50-000 | CUSHION,RESONATOR NO.2 | Air cleaner (JA420WD) |
| 13875-78E00-000 | CAP,DRAIN | Air cleaner (JA420WD) |
| 13876-78E00-000 | CLIP | Air cleaner (JA420WD) |
| 13877-65D00-000 | COLLAR,7.6X10X19.3 | Air cleaner (JA420WD) |
| 13877-68D00-000 | Collar | Air cleaner (JA420WD) |
| 13878-65D00-000 | CUSHION,12.5X22X19.5 | Air cleaner (JA420WD) |
| 13880-68DB0-000 | PIPE,AIR CLNR OUTLET | Air cleaner (JA420WD) |
| 13882-68DB0-000 | UNION | Air cleaner (JA420WD) |
