| 01500-06253-000 |
Bolt - Bolt, fuel injection bracket |

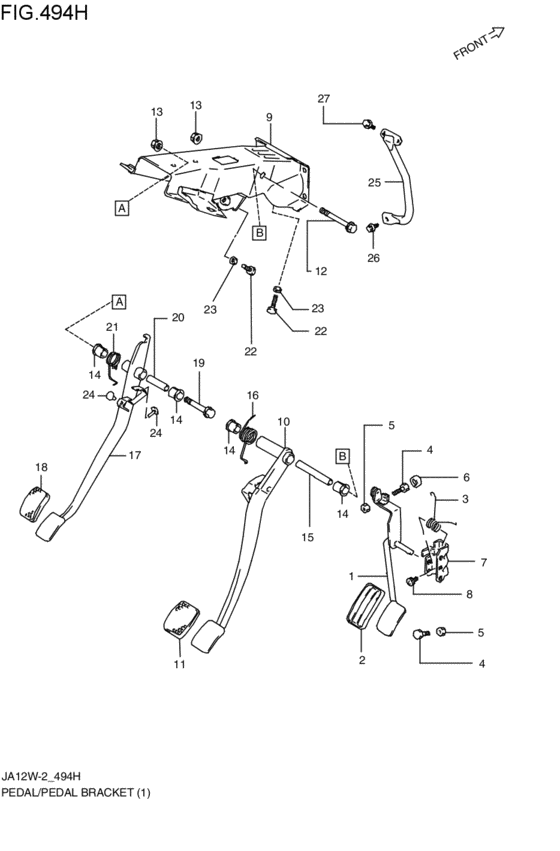

pedal / pedal bracket (5MT; 1997-05-01~1998-10-01) |
| 01500-0625A-000 |
Bolt - Bolt, gear shift arm |
pedal / pedal bracket (5MT; 1997-05-01~1998-10-01) |
| 01570-06123-000 |
Bolt |
pedal / pedal bracket (5MT; 1997-05-01~1998-10-01) |
| 01570-0612A-000 |
Bolt |
pedal / pedal bracket (5MT; 1997-05-01~1998-10-01) |
| 01570-0612B-000 |
Bolt - Bolt, upper |
pedal / pedal bracket (5MT; 1997-05-01~1998-10-01) |
| 08310-00063-000 |
Nut |
pedal / pedal bracket (5MT; 1997-05-01~1998-10-01) |
| 08310-0006A-000 |
NUT |
pedal / pedal bracket (5MT; 1997-05-01~1998-10-01) |
| 08310-0006B-000 |
NUT - Nut gear shift link rod |
pedal / pedal bracket (5MT; 1997-05-01~1998-10-01) |
| 08316-10103-000 |
Nut |
pedal / pedal bracket (5MT; 1997-05-01~1998-10-01) |
| 08316-1010B-000 |
NUT |
pedal / pedal bracket (5MT; 1997-05-01~1998-10-01) |
| 09100-06088-000 |
BOLT(6X30) |
pedal / pedal bracket (5MT; 1997-05-01~1998-10-01) |
| 09100-10226-000 |
BOLT(10X85) |
pedal / pedal bracket (5MT; 1997-05-01~1998-10-01) |
| 09100-10240-000 |
BOLT(10X62) |
pedal / pedal bracket (5MT; 1997-05-01~1998-10-01) |
| 09180-10121-000 |
SPACER(10.1X13X73.8) |
pedal / pedal bracket (5MT; 1997-05-01~1998-10-01) |
| 09180-10122-000 |
SPACER(10.1X13X50.8) |
pedal / pedal bracket (5MT; 1997-05-01~1998-10-01) |
| 09251-09002-000 |
CAP(OD:13.6) |
pedal / pedal bracket (5MT; 1997-05-01~1998-10-01) |
| 09251-09008-000 |
Cap(Od:13.6) |
pedal / pedal bracket (5MT; 1997-05-01~1998-10-01) |
| 09307-13005-000 |
BUSH - Bushing |
pedal / pedal bracket (5MT; 1997-05-01~1998-10-01) |
| 09321-06026-000 |
CUSHION |
pedal / pedal bracket (5MT; 1997-05-01~1998-10-01) |
| 09448-21005-000 |
SPRING |
pedal / pedal bracket (5MT; 1997-05-01~1998-10-01) |
| 49410-82CA1-000 |
ペダル,アクセレレータ |
pedal / pedal bracket (5MT; 1997-05-01~1998-10-01) |
| 49410-82CA2-000 |
PEDAL,ACCELERATOR |
pedal / pedal bracket (5MT; 1997-05-01~1998-10-01) |
| 49451-80100-000 |
PAD,ACCELERATOR PEDAL |
pedal / pedal bracket (5MT; 1997-05-01~1998-10-01) |
| 49511-80101-000 |
ブラケット,アクセレレータ |
pedal / pedal bracket (5MT; 1997-05-01~1998-10-01) |
| 49511-80102-000 |
BRACKET,ACCELERATOR |
pedal / pedal bracket (5MT; 1997-05-01~1998-10-01) |
| 49610-70AA0-000 |
Pedal comp,brake |
pedal / pedal bracket (5MT; 1997-05-01~1998-10-01) |
| 49691-70AA0-000 |
SPRING,BRAKE PEDAL |
pedal / pedal bracket (5MT; 1997-05-01~1998-10-01) |
| 49710-70AA0-000 |
BRACKET,PEDAL |
pedal / pedal bracket (5MT; 1997-05-01~1998-10-01) |
| 49751-58J00-000 |
PAD,PEDAL |
pedal / pedal bracket (5MT; 1997-05-01~1998-10-01) |
| 49751-79001-000 |
Pad, pedal |
pedal / pedal bracket (5MT; 1997-05-01~1998-10-01) |
| 49810-70AB0-000 |
PEDAL,CLUTCH |
pedal / pedal bracket (5MT; 1997-05-01~1998-10-01) |
| 49891-70AA0-000 |
SPRING,CLUTCH PEDAL |
pedal / pedal bracket (5MT; 1997-05-01~1998-10-01) |
