Search › Model › JA12V
JA12V

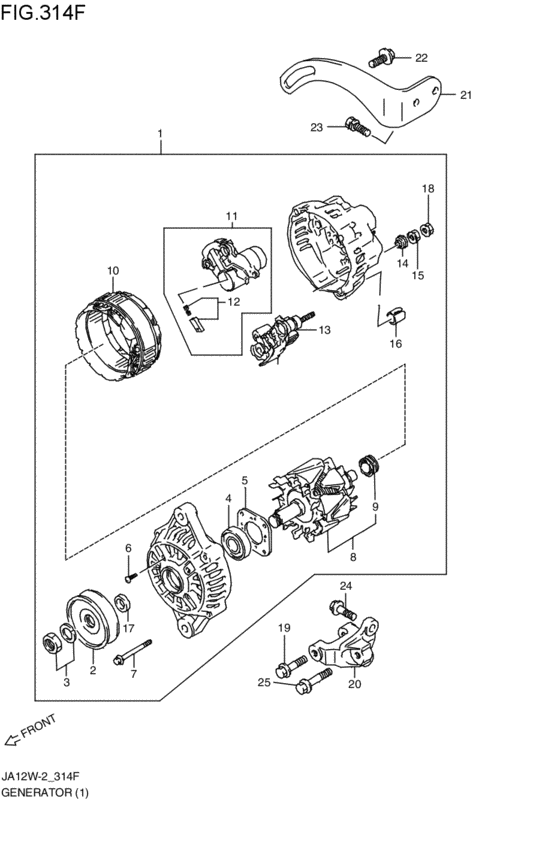

generator (F6A; 1997-05-01~1998-10-01) 39
| OEM | Part name | Category |
|---|---|---|
| 01550-08253-000 | Bolt, rear | generator (F6A; 1997-05-01~1998-10-01) |
| 01550-0825A-000 | Bolt | generator (F6A; 1997-05-01~1998-10-01) |
| 01550-0825B-000 | Bolt | generator (F6A; 1997-05-01~1998-10-01) |
| 01550-08353-000 | Bolt, rear | generator (F6A; 1997-05-01~1998-10-01) |
| 01550-0835A-000 | Bolt | generator (F6A; 1997-05-01~1998-10-01) |
| 01550-0835B-000 | Bolt | generator (F6A; 1997-05-01~1998-10-01) |
| 01550-08403-000 | Bolt | generator (F6A; 1997-05-01~1998-10-01) |
| 01550-0840A-000 | Bolt | generator (F6A; 1997-05-01~1998-10-01) |
| 01550-0840B-000 | Bolt | generator (F6A; 1997-05-01~1998-10-01) |
| 01570-08203-000 | Bolt | generator (F6A; 1997-05-01~1998-10-01) |
| 01570-0820A-000 | Bolt | generator (F6A; 1997-05-01~1998-10-01) |
| 01570-0820B-000 | Bolt | generator (F6A; 1997-05-01~1998-10-01) |
| 08316-10063-000 | Nut | generator (F6A; 1997-05-01~1998-10-01) |
| 08316-1006B-000 | NUT | generator (F6A; 1997-05-01~1998-10-01) |
| 09118-08107-000 | BOLT(8X25) | generator (F6A; 1997-05-01~1998-10-01) |
| 11551-60C01-000 | BRACKET,ALTERNATOR | generator (F6A; 1997-05-01~1998-10-01) |
| 11561-83C00-000 | アーム,オルタネータアジャスト | generator (F6A; 1997-05-01~1998-10-01) |
| 31400-82C30-000 | Generator assy | generator (F6A; 1997-05-01~1998-10-01) |
| 31400-82C32-000 | GENERATOR ASSY | generator (F6A; 1997-05-01~1998-10-01) |
| 31400-82C33-000 | Generator Assy | generator (F6A; 1997-05-01~1998-10-01) |
| 31410-60A10-000 | STATOR ASSY | generator (F6A; 1997-05-01~1998-10-01) |
| 31514-82630-000 | INSULATOR | generator (F6A; 1997-05-01~1998-10-01) |
| 31582-50F20-000 | Bearing,front | generator (F6A; 1997-05-01~1998-10-01) |
| 31582-50F30-000 | BEARING,FRONT | generator (F6A; 1997-05-01~1998-10-01) |
| 31585-60A10-000 | RETAINER,BEARING | generator (F6A; 1997-05-01~1998-10-01) |
| 31586-60A10-000 | SCREW SET | generator (F6A; 1997-05-01~1998-10-01) |
| 31612-60A10-000 | Bearing,rr | generator (F6A; 1997-05-01~1998-10-01) |
| 31612-60A11-000 | BEARING,REAR | generator (F6A; 1997-05-01~1998-10-01) |
| 31616-82C20-000 | BUSH | generator (F6A; 1997-05-01~1998-10-01) |
| 31621-60F30-000 | Rectifier Assy | generator (F6A; 1997-05-01~1998-10-01) |
| 31631-60F30-000 | BRUSH SET | generator (F6A; 1997-05-01~1998-10-01) |
| 31651-86520-000 | SCREW SET | generator (F6A; 1997-05-01~1998-10-01) |
| 31710-82C20-000 | Rotor assy | generator (F6A; 1997-05-01~1998-10-01) |
| 31710-82C22-000 | ROTOR ASSY | generator (F6A; 1997-05-01~1998-10-01) |
| 31771-82C20-000 | PULLEY | generator (F6A; 1997-05-01~1998-10-01) |
| 31775-50F20-000 | NUT | generator (F6A; 1997-05-01~1998-10-01) |
| 31792-51F10-000 | SPACER | generator (F6A; 1997-05-01~1998-10-01) |
| 32500-60F30-000 | レギュレータアッシ | generator (F6A; 1997-05-01~1998-10-01) |
| 32500-60F31-000 | REGULATOR ASSY | generator (F6A; 1997-05-01~1998-10-01) |
