Search › Model › JA11C
JA11C

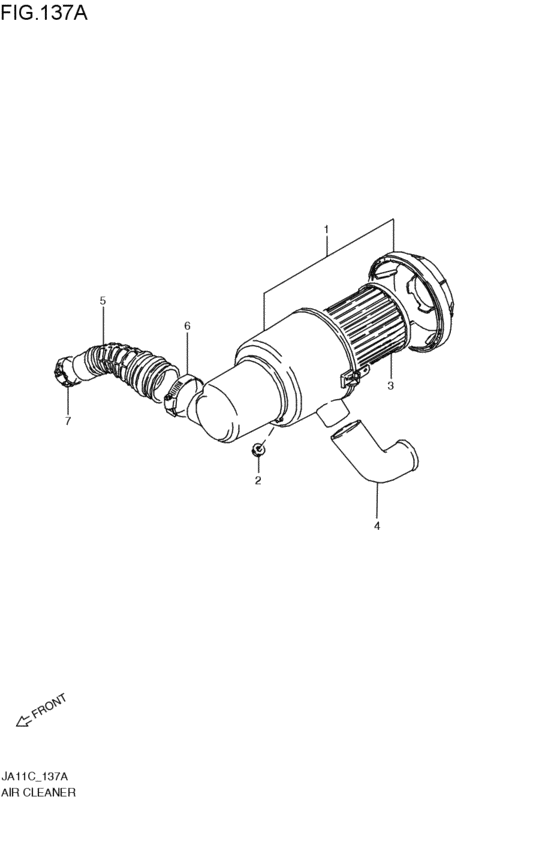

air cleaner (1990-02-01~1995-10-01) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 13701-80710-000 | ケースアッシ,エアクリーナ |
| 2 | 08316-10083-000 | Nut |
| 2 | 08316-1008B-000 | NUT |
| 3 | 13780-79210-000 | ELEMENT,AIR CLEANER |
| 4 | 13871-80701-000 | Hose, air cleaner, inlet |
| 5 | 13881-80700-000 | ホース,エアクリーナ,アウトレット |
| 6 | 09402-69511-000 | CLAMP - Clamp (thb) |
| 7 | 09402-50511-000 | CLAMP |
| OEM | Part name | Category |
|---|---|---|
| 08316-10083-000 | Nut | air cleaner (1990-02-01~1995-10-01) |
| 08316-1008B-000 | NUT | air cleaner (1990-02-01~1995-10-01) |
| 09402-50511-000 | CLAMP | air cleaner (1990-02-01~1995-10-01) |
| 09402-69511-000 | CLAMP - Clamp (thb) | air cleaner (1990-02-01~1995-10-01) |
| 13701-80710-000 | ケースアッシ,エアクリーナ | air cleaner (1990-02-01~1995-10-01) |
| 13780-79210-000 | ELEMENT,AIR CLEANER | air cleaner (1990-02-01~1995-10-01) |
| 13871-80701-000 | Hose, air cleaner, inlet | air cleaner (1990-02-01~1995-10-01) |
| 13881-80700-000 | ホース,エアクリーナ,アウトレット | air cleaner (1990-02-01~1995-10-01) |
