| 46210-JN20B |
Hose Assy-Brake, Front |

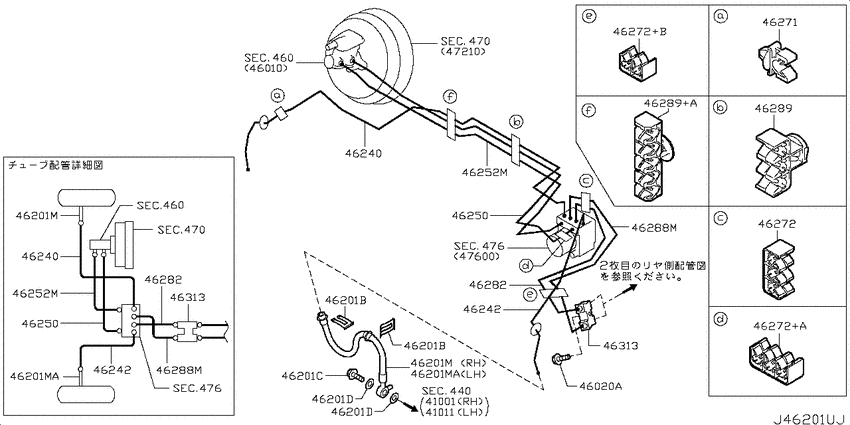

Brake piping & control (2008-06-01 ~ ; パイピング VDC; SED) |
| 46211-JN20B |
Hose Assy-Brake, Front |
Brake piping & control (2008-06-01 ~ ; パイピング VDC; SED) |
| 46240-JN20A |
Tube Assy-Brake, Front Rh |
Brake piping & control (2008-06-01 ~ ; パイピング VDC; SED) |
| 46240-JN20B |
Tube Assy-Brake, Front Rh |
Brake piping & control (2008-06-01 ~ ; パイピング VDC; SED) |
| 46242-JN20B |
Tube Assy-Brake, Front Lh |
Brake piping & control (2008-06-01 ~ ; パイピング VDC; SED) |
| 46250-JN20A |
Tube Assy-Brake, Front Master Cylinder |
Brake piping & control (2008-06-01 ~ ; パイピング VDC; SED) |
| 46250-JN20B |
Tube Assy-Brake, Front Master Cylinder |
Brake piping & control (2008-06-01 ~ ; パイピング VDC; SED) |
| 46252-JN20A |
Tube Assy-Brake, Rear Master Cylinder |
Brake piping & control (2008-06-01 ~ ; パイピング VDC; SED) |
| 46252-JN20B |
Tube Assy-Brake, Rear Master Cylinder |
Brake piping & control (2008-06-01 ~ ; パイピング VDC; SED) |
| 46271-1L000 |
Clamp-Brake Tube |
Brake piping & control (2008-06-01 ~ ; パイピング VDC; SED) |
| 46271-66C00 |
Insulator |
Brake piping & control (2008-06-01 ~ ; パイピング VDC; SED) |
| 46272-JG00B |
Insulator |
Brake piping & control (2008-06-01 ~ ; パイピング VDC; SED) |
| 46272-JG41B |
Clip-Tube, Brake |
Brake piping & control (2008-06-01 ~ ; パイピング VDC; SED) |
| 46282-JN20A |
Tube Assy-Brake, Rear |
Brake piping & control (2008-06-01 ~ ; パイピング VDC; SED) |
| 46282-JN20B |
Tube Assy-Brake, Rear |
Brake piping & control (2008-06-01 ~ ; パイピング VDC; SED) |
| 46283-JN20A |
Tube Assy-Brake, Rear Lh |
Brake piping & control (2008-06-01 ~ ; パイピング VDC; SED) |
| 46283-JN20B |
Tube Assy-Brake, Rear Lh |
Brake piping & control (2008-06-01 ~ ; パイピング VDC; SED) |
| 46289-1AA1A |
Clamp |
Brake piping & control (2008-06-01 ~ ; パイピング VDC; SED) |
| 46289-JG41B |
Clamp |
Brake piping & control (2008-06-01 ~ ; パイピング VDC; SED) |
| 46313-JN00A |
Connector-Brake Tube |
Brake piping & control (2008-06-01 ~ ; パイピング VDC; SED) |
